DoorKing 1600 Series Manual

2600-267-G-6-16
Transformer
Operator MUST be
properly grounded.
Chassis Ground
1600 Series
Installation for a 115 VAC 1600 series (1601, 1602, 1603) operators ONLY.

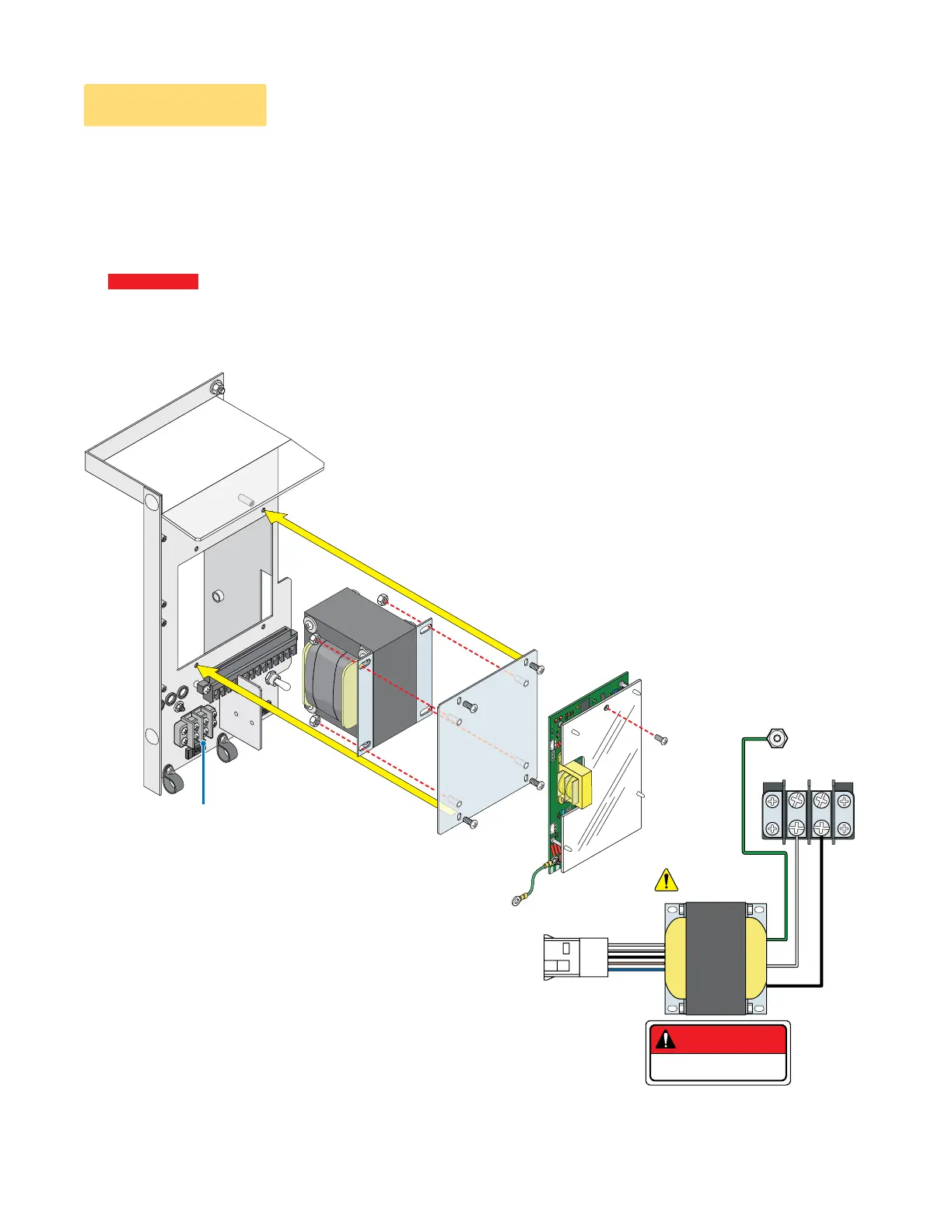

Step 1: Mount step-down transformer.
• Remove the 1 screw, unbolt the ground wire from the chassis ground and CAREFULLY remove circuit board.
• Bolt transformer to existing threaded studs on back of supplied plate using the (4) four nuts supplied with this kit.
• CAREFULLY install the plate and re-install circuit board.
Step 2: Wire the step-down transformer for the desired input voltage chosen (see first page).
Neu Hot
Black
White
115 VAC Input
115 VAC Output
115 VAC
Power Terminal
Variable Input Power
(see first page)
Step-Down
Transformer
Keep wires away
from moving parts.
Double check your chosen input voltage plug BEFORE
applying power to the step-down transformer. Failure to
choose the CORRECT input voltage plug for your desired
input voltage WILL damage operator and VOID warranty.
DANGER
HIGH VOLTAGE!
Dual Gate Operators Installation: When installing on bi-parting gates, a step-down transformer and AC input power wire is required for EACH operator.
“Optional” Heater Installation: When installing a heater, refer to the “high voltage AC power wire size and distance limitations” table on the
instruction sheet with the heater kit for AC input power wire run limitations.
Important Notes:
RE
VERSE
S
ENSI
T
I
VI
T
Y
T
IME
DE
L
A
Y
P
O
W
ER
1
ON
2 3 4 5 6 7 81
ON
2 3 4 5 6 7 8
NC
NO
UP
L
O
O
P
DO
W
N
L
O
O
P
Plate
(Supplied)
Circuit Board
Ground
Wire
1600
Electronic
Box Assembly
Power
Terminal
Green
