Dorel DA7867 - Final Island Assembly Stages

STEP 10
Kitchen Island with 2 Stools
DA7867

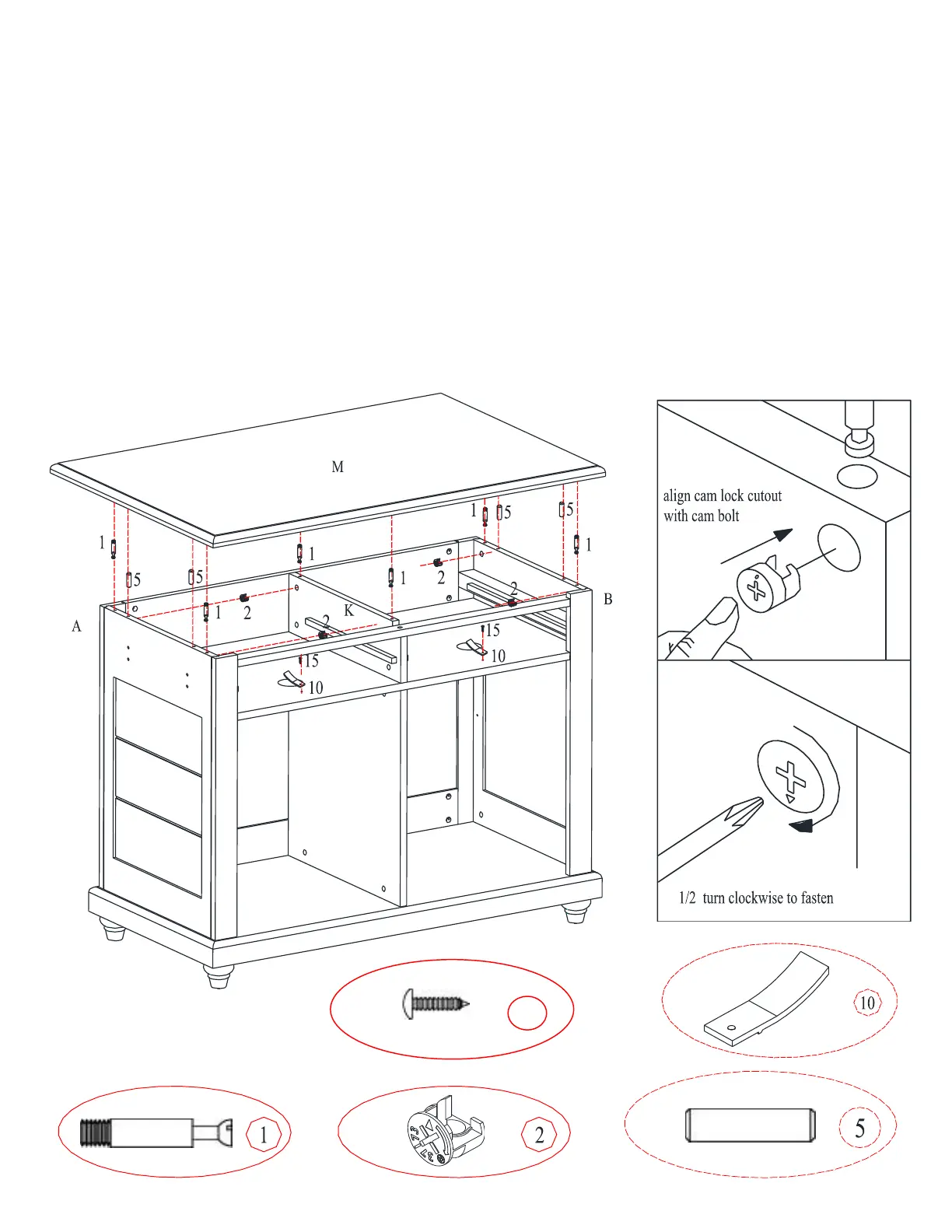

Insert cam bolts (1) into top panel (M).
Attach top panel (M) to the upper panel (K) and side panels (A & B) and secure by rotating cam locks (2)
1/2-turn clockwise using a Phillips head screwdriver (not included).
Attach drawer stops (10) to the middle panel (F) with round head screws (15) and a Phillips head
screwdriver (not included).
Insert cam locks (2) into upper panel (K) and side panels (A &B) as shown.
Insert wood dowels (5) into side panels (A & B).
15
