Dorel DA7867 - Stool Assembly; Stool Legs and Frame Assembly

STEP 14
Use Allen Key (4) to install the bolts (13).
NOTE: Do not fully tighten the bolts until stretcher frame (X) is attached to legs (Y).
Kitchen Island with 2 Stools
DA7867

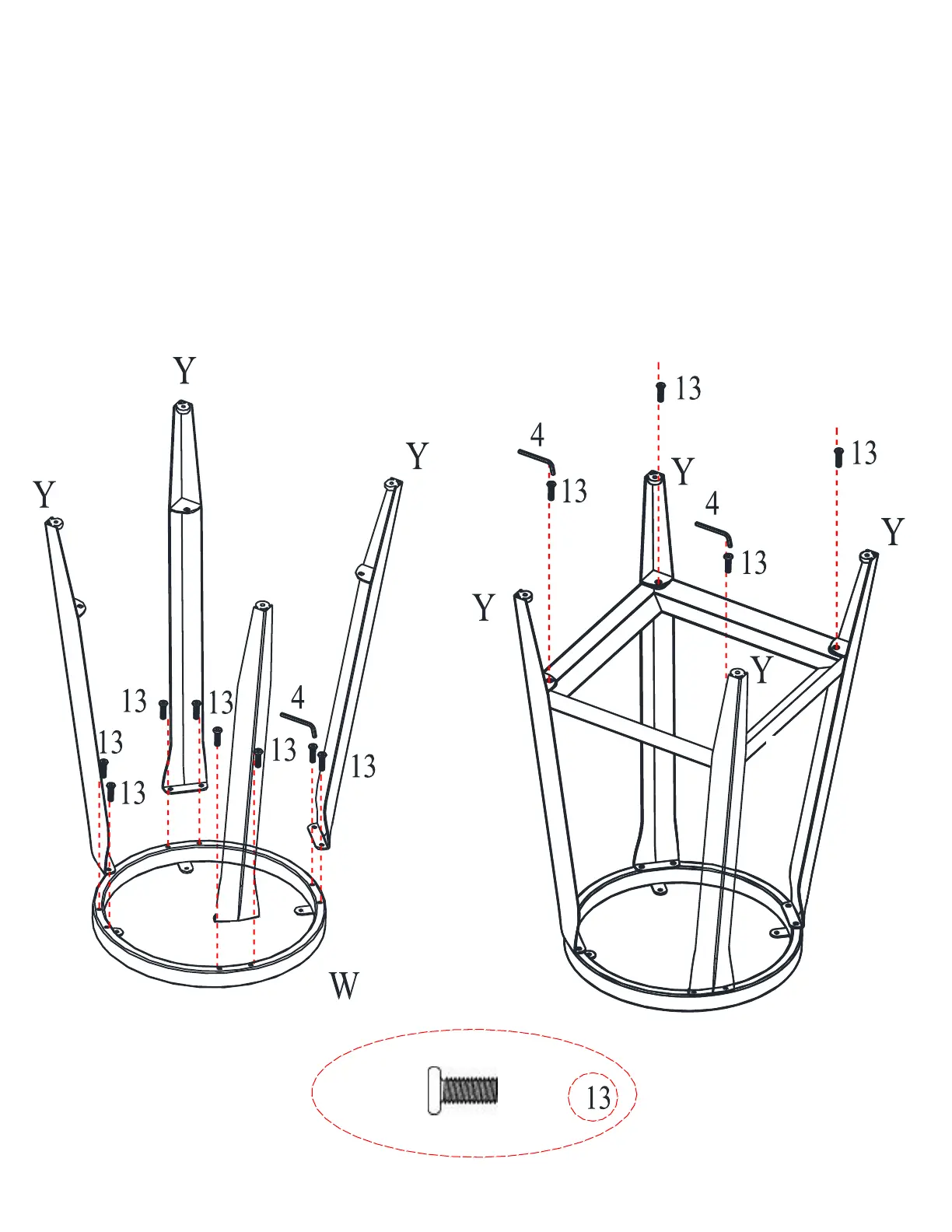

Attach legs (Y) to seat frame (W) with bolts (13). Leave the bolts loose.
Attach stretcher frame (X) to the legs (Y) with bolts (13).
X
