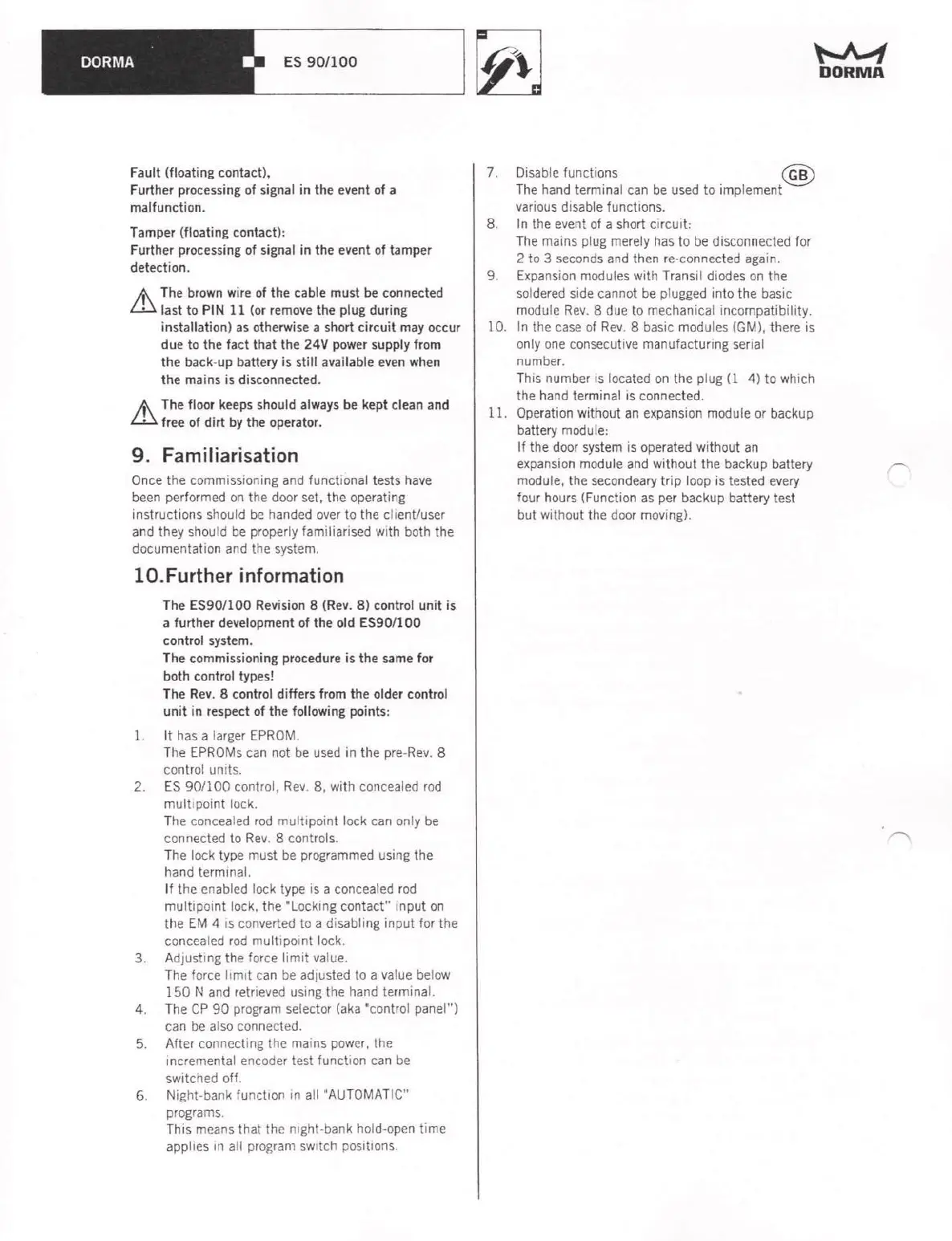

Fault (floating contact).
Further processing of signal in the eyent of a
malfunction.
Tamper (floating contact):
Further processing of signal in the event of tamper
detection.
A\
The brown wire of the cable must be connected
ill
last to PIN 11 (or remove the plug during
installation) as otherwise a short circuit may occur
due to the fact that the 24V power supply from
the back-up battery is still available even when
the mains is disconnected.
A\ The floor keeps should always be kept clean and
ill
free of dirt
by
the operator.
9, Familiarisation
Once the commissioning and functional tests have
been performed on the door set, the operating
instructions should be handed over to the clienUuser
and they should be properly familiarised with both the
documentation and the system.
IO.Further information
The £5901100 Revision 8 (Rev. 8) control unit is
a further development of the old ES90/J 00
control system.
The commissioning procedure is the same for
both control types!
The Rev. 8 control differs from the older control
unit in respect of the following points:
1. It has a larger EPROM.
The EPROMs can not be used in the pre-Rev. 8
control units.
2. ES 90/100 control, Rev. 8, with concealed rod
multipoint lock.
The concealed rod multipoint lock can only be
connected to Rev. 8 controls.
The lock type must be programmed using the
hand terminal.
If the enabled lock type is a concealed rod
multipoint lock, the -Locking contact" input on
the EM 4 is converted to a disabling input tor the
concealed rod multipoint lock.
3. Adjusting the force limit value.
The force limit can be adjusted to a value below
150 N and retrieved using the hand terminal.
4. The CP 90 program selector (aka .control panel")
can be also connected.
5. After connecting the mains power, the
incremental encoder test function can be
switched ofi.
6. Night-bank funct,on in all 'AUTOMATIC"
programs.
This means that the night-bank hold-open time
applies in all program switch positions.
7. Disable functions
@
The hand terminal can be used to implement
various disable functions.
8. In the event of a short circuit
The mains plug merely has to be disconnected for
2 to 3 seconds and then re-connected again.
9. Expansion modules with Transil diodes on the
soldered side cannot be plugged into the basic
module Rev. 8 due to mechanical incompatibility.
10. In the case of Rev. 8 basic modules (GM), there is
only one consecutive manufacturing serial
number.
This number is located on the plug
(I
4) to which
the hand terminal is connected.
11. Operation without an expansion module or backup
battery module:
If the door system is operated without an
expansion module and without the backup battery
module, the secondeary trip loop is tested every
four hours (Function as per backup battery test
but without the door moving),
