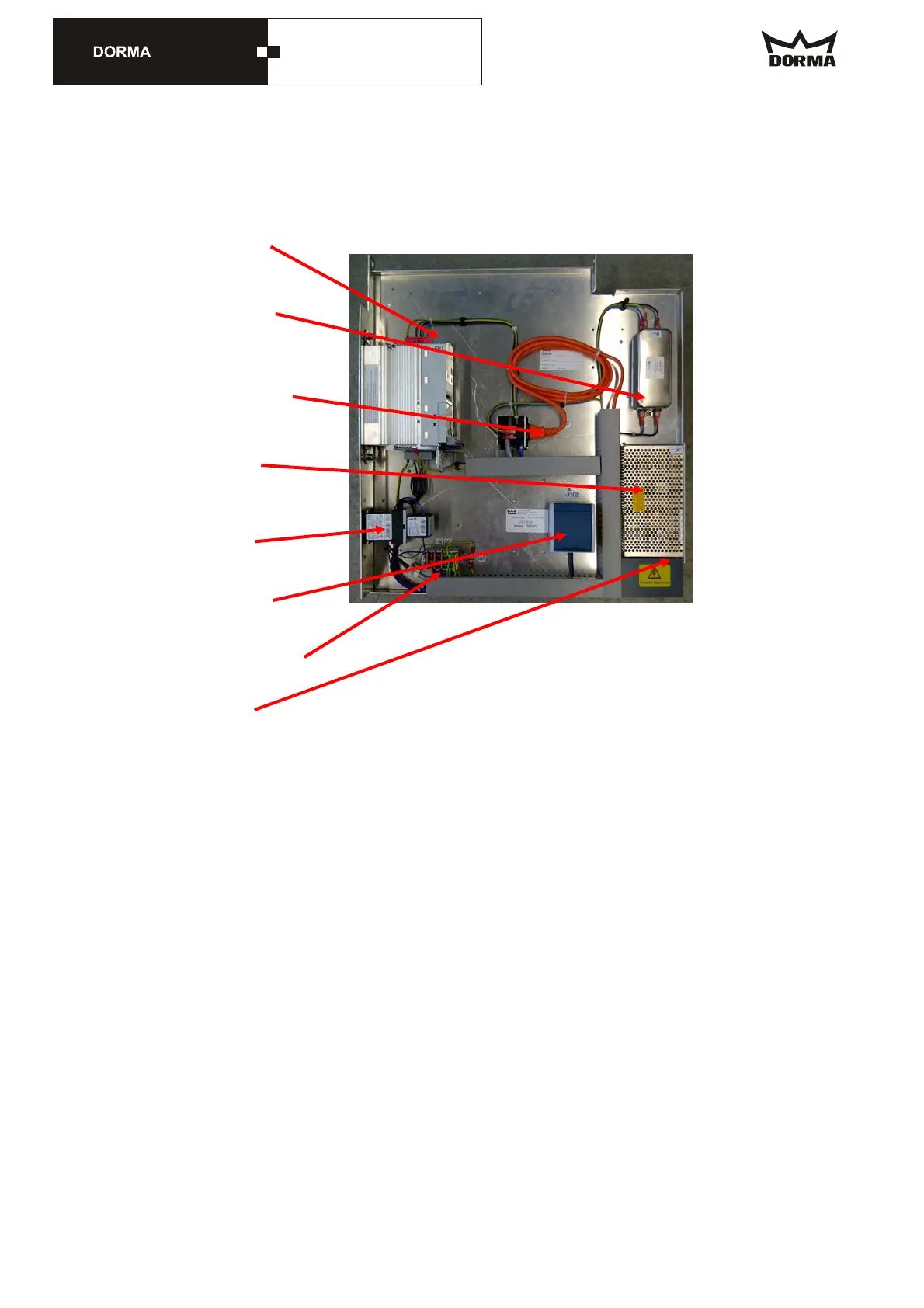

KTC-2 (MS9)
Rear view
Frequency converter
(N60-0402)
Mains filter (N60-0405)
Mains connection
230 V AC –X103
24 V DC power supply unit
(N60-0583)
Relay K1
(N60-0560)
Service power outlet
max. 300 W
(N60-0694)
Collector (230VAC)-X105
Potentiometer for
24V DC adjustment
Readout the parameter settings before exchanging, in order to transfer these to the
new CPU.
