KTC-2 (MS9)

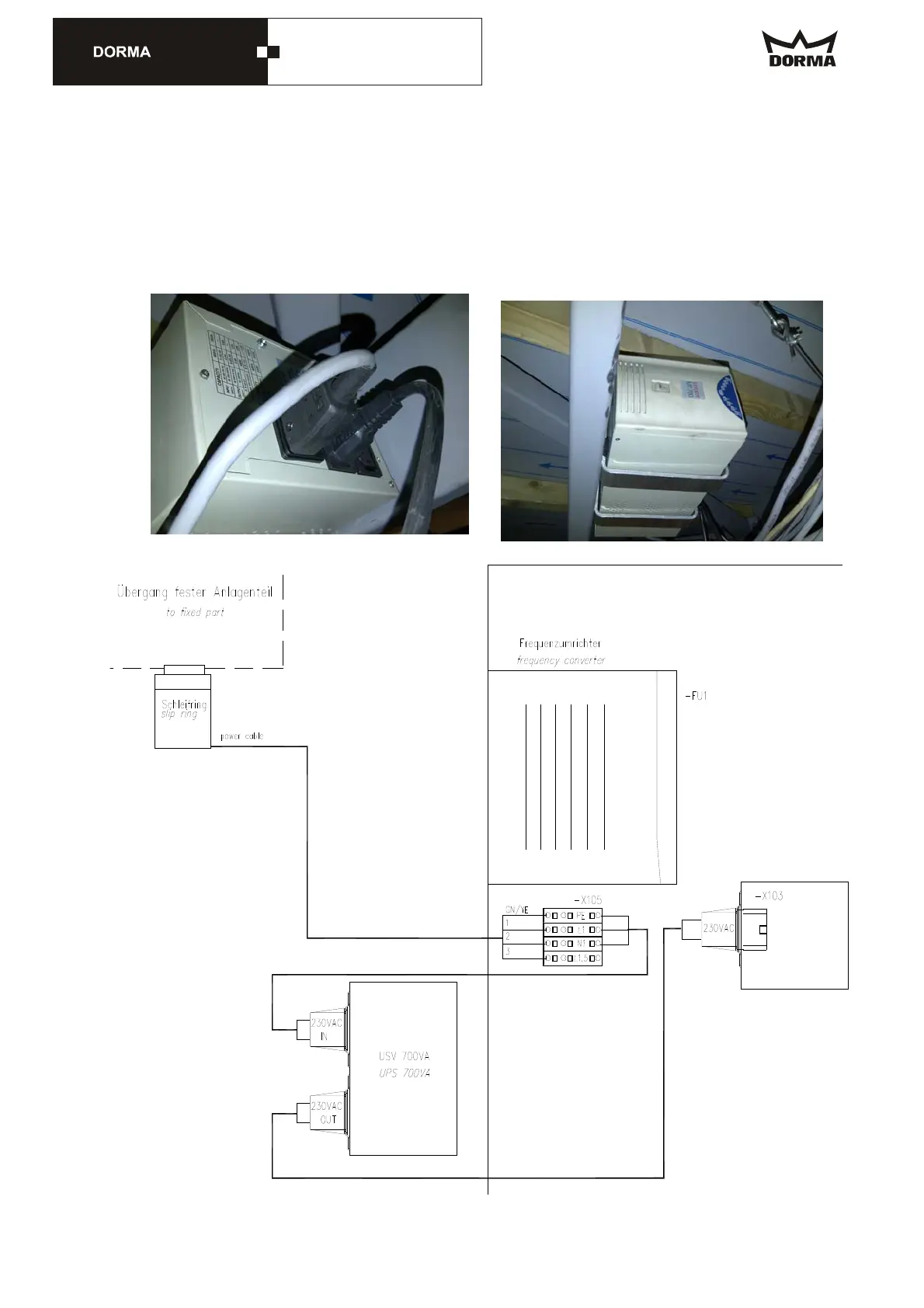

5. Carry out the wiring as follows if the door system is furnished with UPS:
If a UPS is joined up in circuit, put the inlet connector for non-heating apparatus from
–X103 into the UPS and the other 230VAC adapter cable to be connected between
UPS and control system at –X103.
