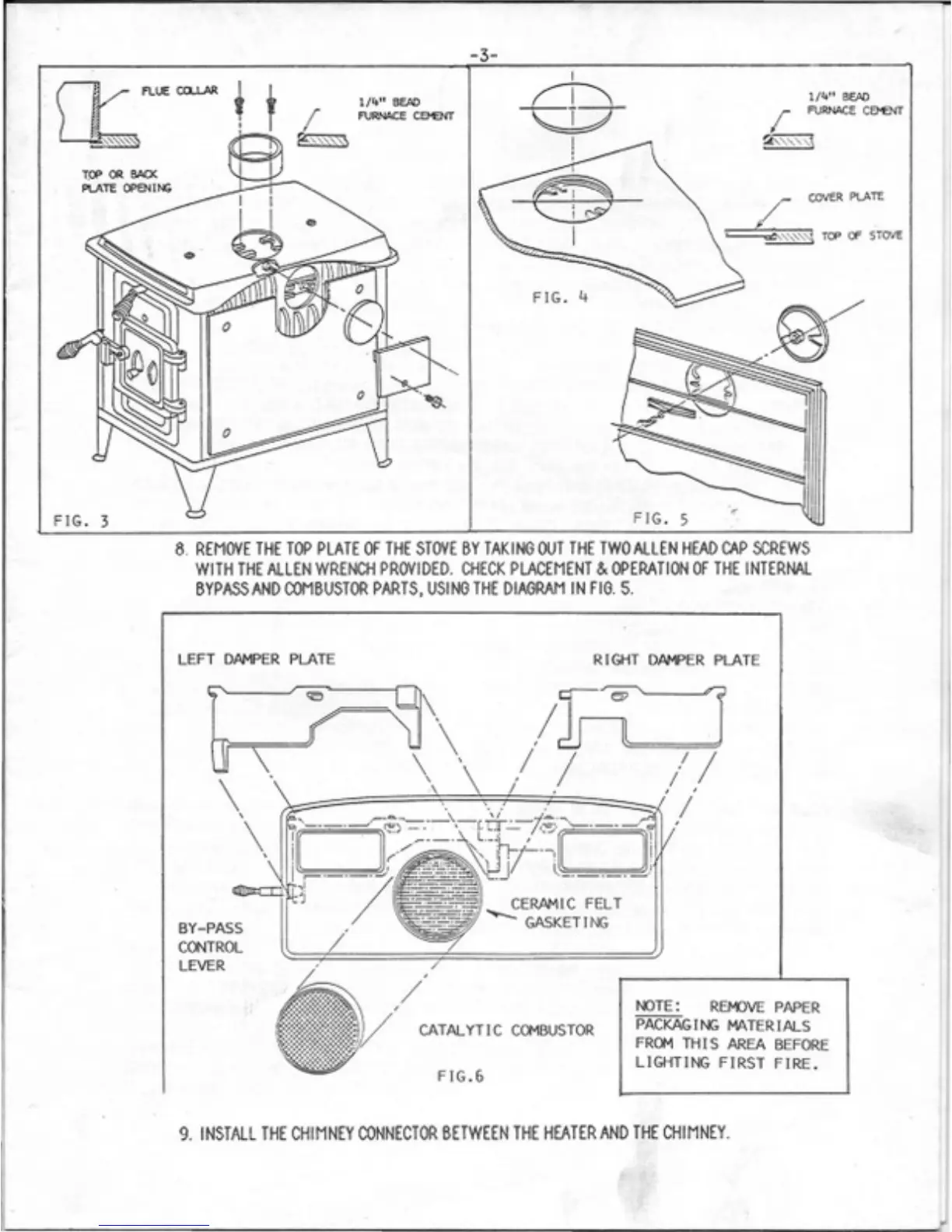

Dovre 500cc - Page 5

-3-
i
(f)
I
I
1/4" BEAD
I FURNACE CEM:NT
Q~
1/4" BEAD
I FURNACE CEM:NT
?-§SS§\
TOP OR BACK
PU.TE OPEN I I'li
/ COVER PLATE
.i'
y
FIG. 4
FIG. 5
FIG. 3
8. REMOVE THE TOP PLATE OF THE STOVE BY TAKING OUT THE TWO ALLEN HEAD CAP SCREWS
WITH THE ALLEN WRENCH PROVIDED. CHECK PLACEMENT & OPERATION OF THE INTERNAL
BYPASS AND COMBUSTOR PARTS, USING THE DIAGRAM IN FIG. 5.
LEFT DAMPER PLATE
RIGHT DAMPER PLATE
~\
\\
\
b ~
\
\
\
BY-PASS
CONTROL
LEVER
NOTE: REtv'lNEPAPER
PACKAGING MATERIALS
FROM THIS AREA BEFORE
LIGHTING FIRST FIRE.
CATALYTIC COMBUSTOR
FIG.6
9. INSTALL THE CHIMNEY CONNECTOR BETWEEN THE HEATER AND THE CHIMNEY.
