D+H BI-BT 2 - Page 12

English English
BI-BT 2 BI-BT 2
99.824.94 1.9/09/2199.824.94 1.9/09/21
12/24 13/24
Connection on D+H drives in conjunction with PLP 1
24V
Drive with
PLP technology
Power supply 24 VDC ±10%,
any polarity. E.g. motor
tester or accumulator pack
adapter
(Scope of supply PLP 1)
BI-BT 2
PLP 1
At first make all plug connections, and afterwards
start the program “PLP” in the SCS Software.
connection cable
to drives
(Scope of supply PLP 1)
D+H Service &
Configuration Suite
USB Dongle
(use optionally)
Mot a
WH
Mot b
BR
BI-BT 2
At first make all plug connections, and afterwards
start the program “Control Panel” in the SCS Software.
Connected
Power
BI-BT 2
Bus Interface
D+H Mechatronic AG • www.dh-partner.com • +49(0)40 605 65 0 Servicetimer: Status + Credits
Reset Reset
10 Credits 10 Credits
0 Credits 1 Credits
3x
5 sec
OFF
D+H Service &
Configuration Suite
USB Dongle
(use optionally)

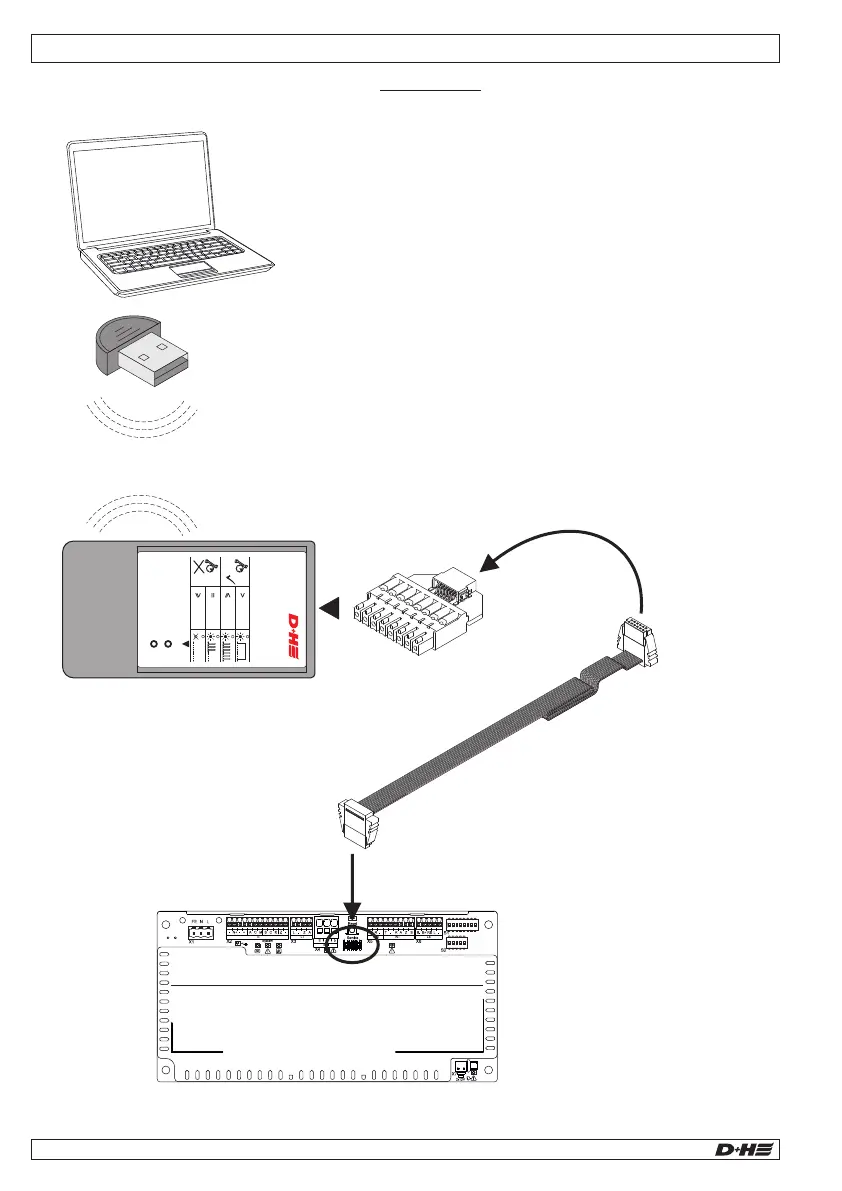

Connection to CPS-B1
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5
Service connection
CPS-B1
VK-BI-BT 2 CPS-B *
(30.119.50)
* not included
Deutsch
English
Français
Español
Deutsch
English
Français
Español
BI-BT 2
BI-BT 2
BI-BT 2
BI-BT 2
99.824.94 1.9/09/2199.824.94 1.9/09/21
x/24 x/24
