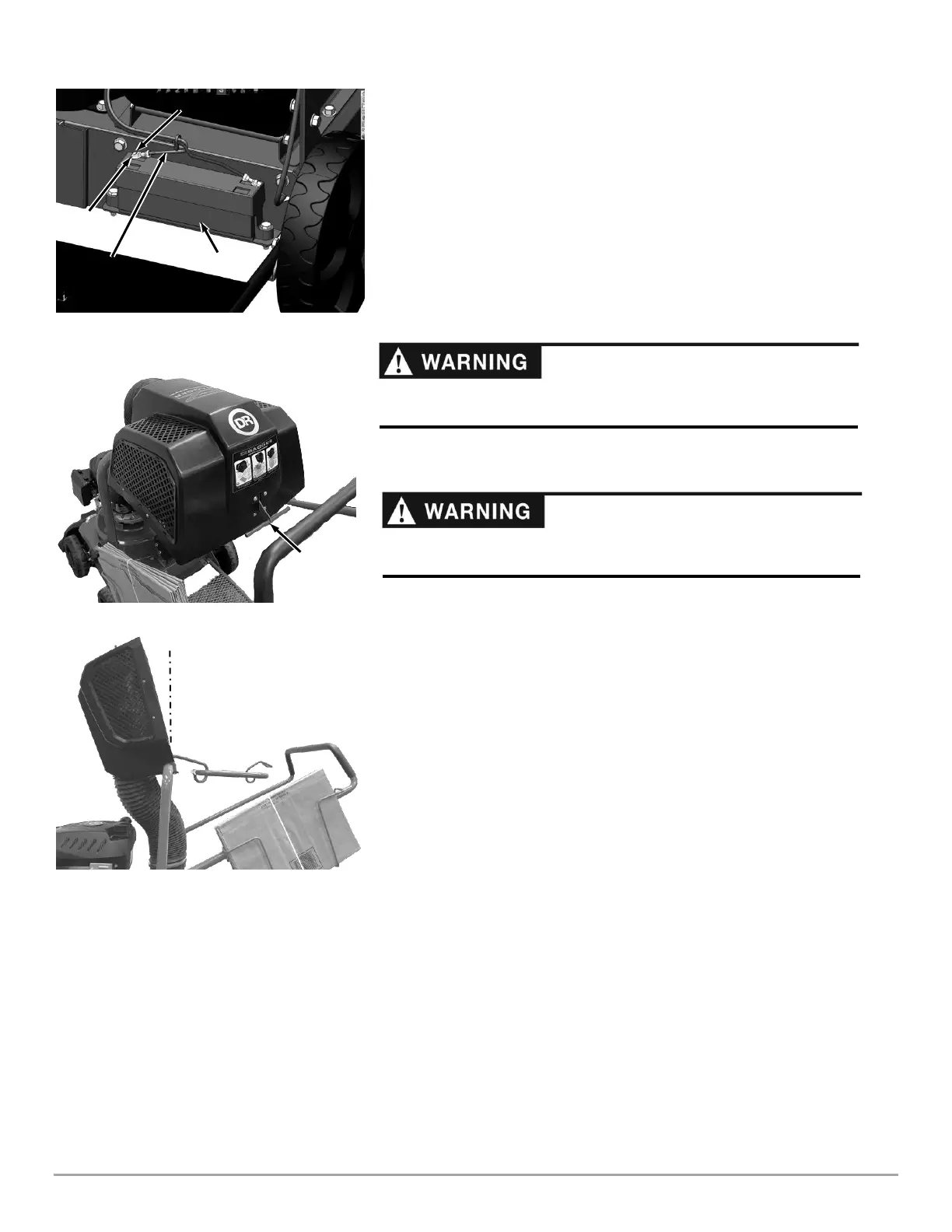

Figure 14

Connecting the Battery Wire (Electric Start Models)

We ship all Electric-Starting DR WALK-BEHIND LEAF AND LAWN

VACUUMS with the Black Negative Battery Wire disconnected. This

prevents the Battery from discharging during shipment. You must connect

the Battery wire before using your machine.

1. Locate the Negative Terminal on the Battery. (Figure 13)

2. Remove the protective Cap that comes on the Battery Terminals for

shipping.

3. Insert the Negative Wire Connector onto the Negative Terminal of the

Battery.

Installing the Collection Bag

1. Locate the Cover Latch Handle (Figure 14), then lift the handle to open

the Bag Top Cover. Lift the Bag Top Cover just past vertical where the Bag

Top Cover will stay up by itself. (Figure 15).

2. Unfurl the bag until it can stand on its own.

3. Position the top of the bag around the outside of the Bag Clamping Ring

while allowing the bag to stand on the Bag Support Platform. (Figure

16).

4. Fold the Bag edges over and into the Bag Clamping Ring and crimp the

Bag around the Bag Clamping Ring. (Figure 17).

5. Close the Bag Top Cover and ensure the Latch is secured. (Figure 18).

Note: The machine will not turn on if the Bag Top Cover isn’t secured

completely.

Figure 13

Battery

Protective Cap

Negative

(Black)

Wire

Negative

Terminal

Never start the Engine without the Collection Bag attached firmly to the

Discharge Chute and Outlet Hose.

Inspect each bag before use. Don’t use a bag with a tear or wet spot.

Using a wet or torn bag could lead to bag failure during operation

Cover Latch

Handle

Figure 15

Vertical
