Drag2Zero D2Z-BTA-0001 - Drag2 Zero BTA Bottle Mount Measurements

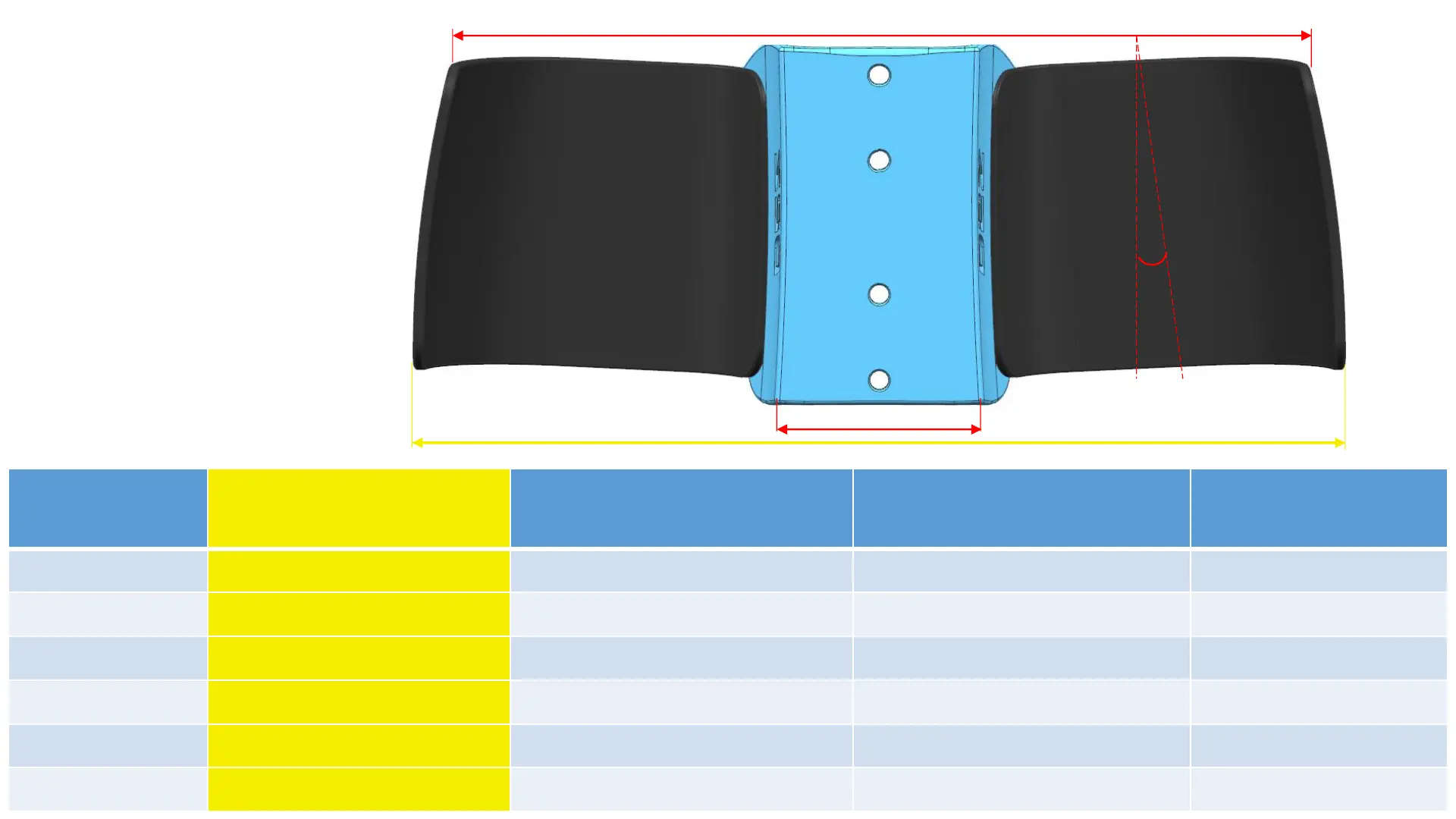

Measurements
Part Name
Dimension A (outside to
outside armrest width)
Dimension B (Front width
for reference)
Dimension C (width of BTA
mount for reference)
θ
D (°
) between pad
and mount
D2Z-BTA-0001 230mm 216mm 20mm 0
D2Z-BTA-0003 240mm 224mm 30mm 0.75
D2Z-BTA-0005 250mm 232mm 40mm 1.5
D2Z-BTA-0007 260mm 240mm 50mm 2.25
D2Z-BTA-0009 270mm 248mm 60mm 3
D2Z-BTA-0011 280mm 256mm 70mm 3.75
*Bottle mount flex
allows for
approximately ±5mm
of tolerance for outer
pad widths (A and B)*
e.g if outer pad width is 240mm, then D2Z-BTA-0003 is the correct size.
*Bottle mount flex allows for approximately ±5mm of tolerance for outer pad widths.
A
C
B
D
θ
