Dräger Evita 4 Repair Instructions

5664.500/800 Evita 4/Evita 2 dura 06/98 Repair Instructions Page 9
For internal use only. Copyright reserved. GBR5664500T055664800.fm 18.03.99
Dräger Medizintechnik
D
1.2 Replacing the Power Supply Unit
Replace the complete power supply unit as follows:
• Disconnect the power plug from the socket-outlet.
• Remove the plastic screws A from the left and right side panels of the Evita.
• Remove the cover.

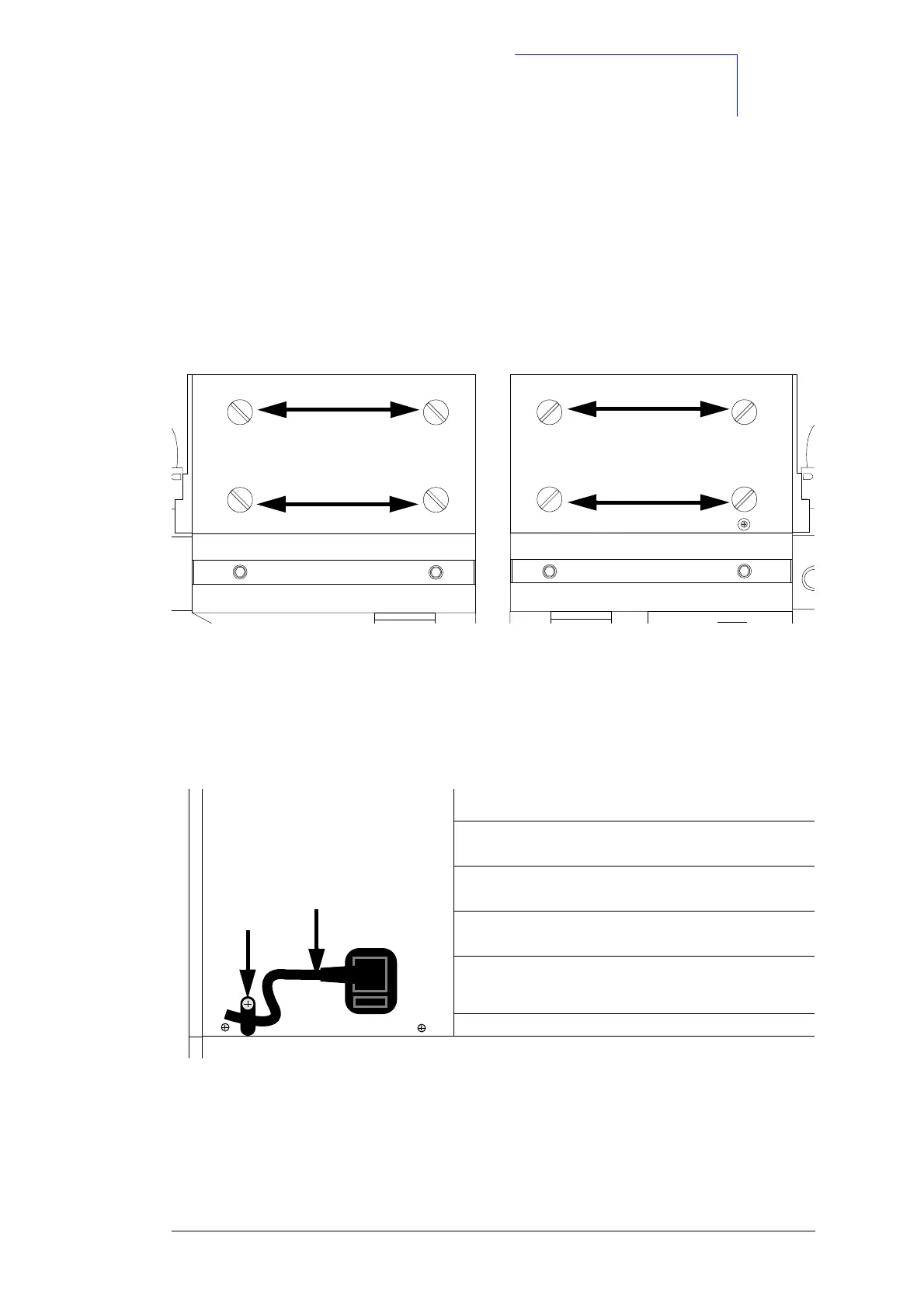

Fig. 4: Side views (removing the power supply unit, step 1)
• Remove the cord grip B.
• Remove the power cord C.
Fig. 5: Rear view (removing the power supply unit, step 2)
A
A
A
A
B
C
