DRAKE ENCODER HOST EH244 - Page 12

CONFIGURATION (continued)

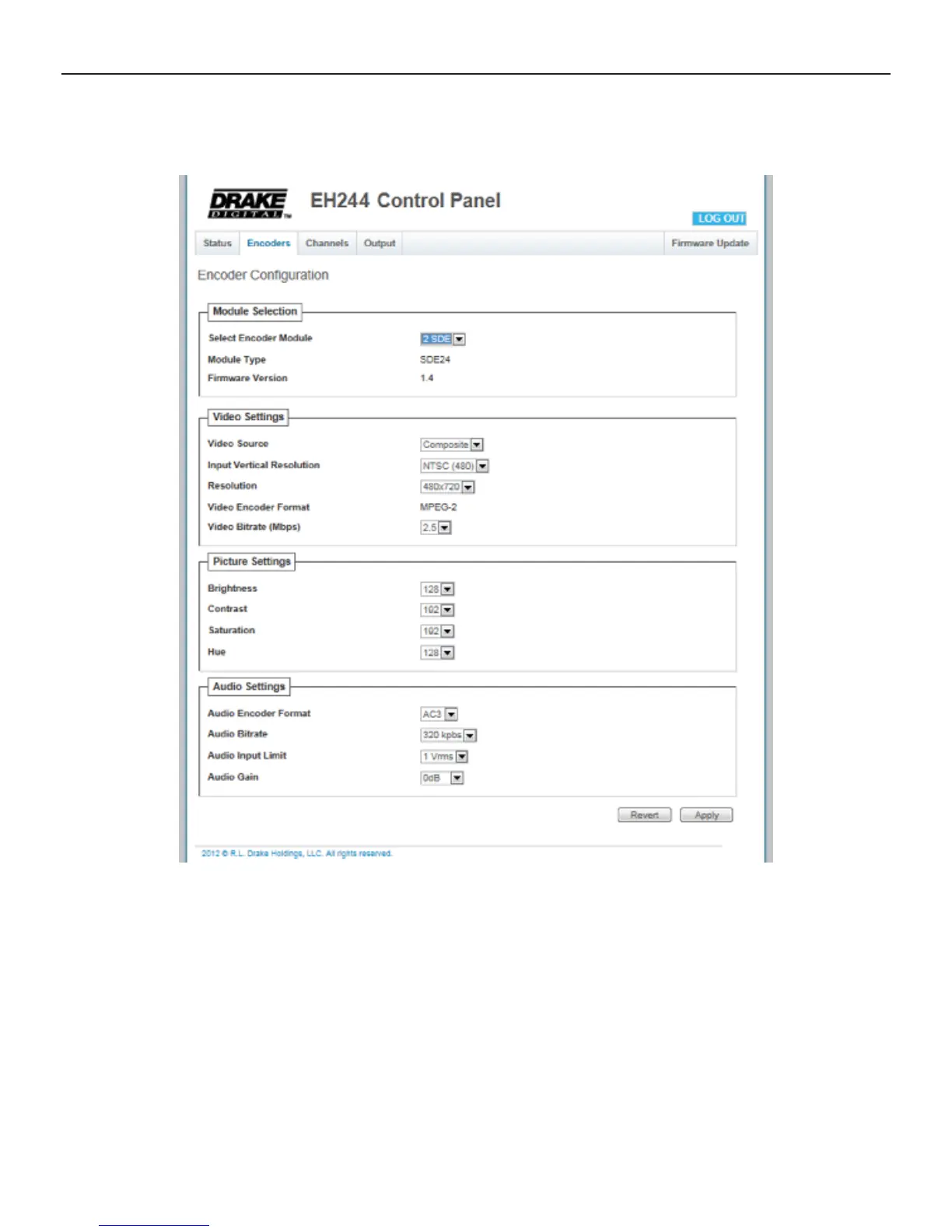

Image: EH244 Web-Server Control Panel, ENCODERS Tab
The Encoders tab allows you to set each encoder’s individual parameters. Select an encoder module
from the drop-down menu, and the appropriate setting selections will be displayed.
(continued on Page 13)
EH244 ENCODER HOST SERIES
12
