Shower Door Installation
1. Measure the distance between two walls.
This distance is marked as “W”.

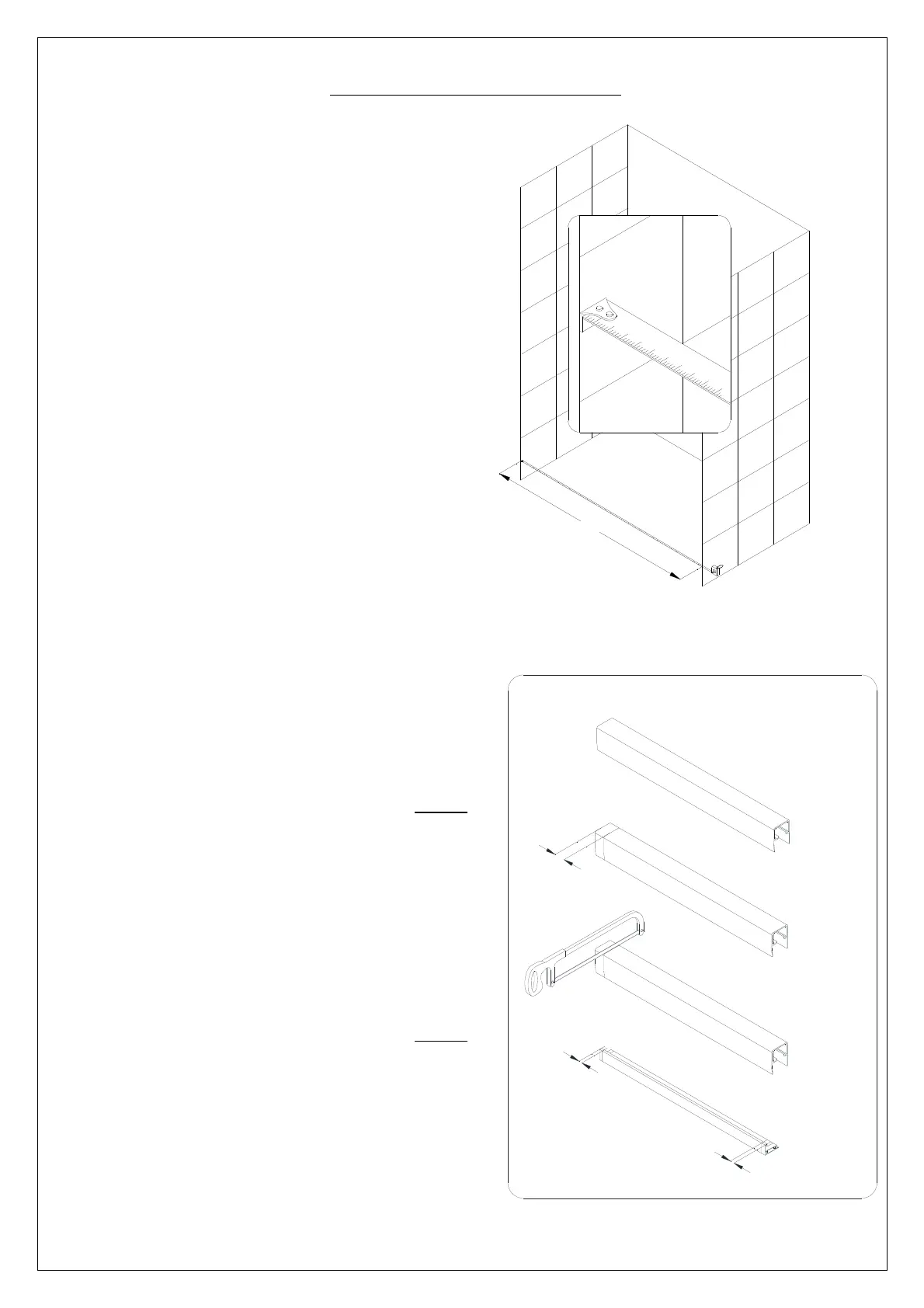

See Fig. 1 for details.
Fig. 1
W
2. The Upper guide rail (01) and the Bottom
guide rail (04) has been precut for the
installation between the walls with a distance
of:
a) 48”
If W=48”, then it is unnecessary to cut the
Guide rails and you can continue to Step 3.
If W<48”, you will need to cut:
• Upper guide rail (01) from one end.
The cutting length will be D;
D=48”−W.
• Bottom guide rail (04) from both ends.
The cutting length will be D/2.
b) 60”
If W=60”, then it is unnecessary to cut the
Guide rails and you can continue to Step 3.
If W<60”, you will need to cut:
• Upper guide rail (01) from one end.
The cutting length will be D;
D=60”−W.
• Bottom guide rail (04) from both ends.
The cutting length will be D/2.
See Fig. 2 for details.
Fig. 2
D
D
/
2
D
/
2
Rev 1.1 4
To Next Page
