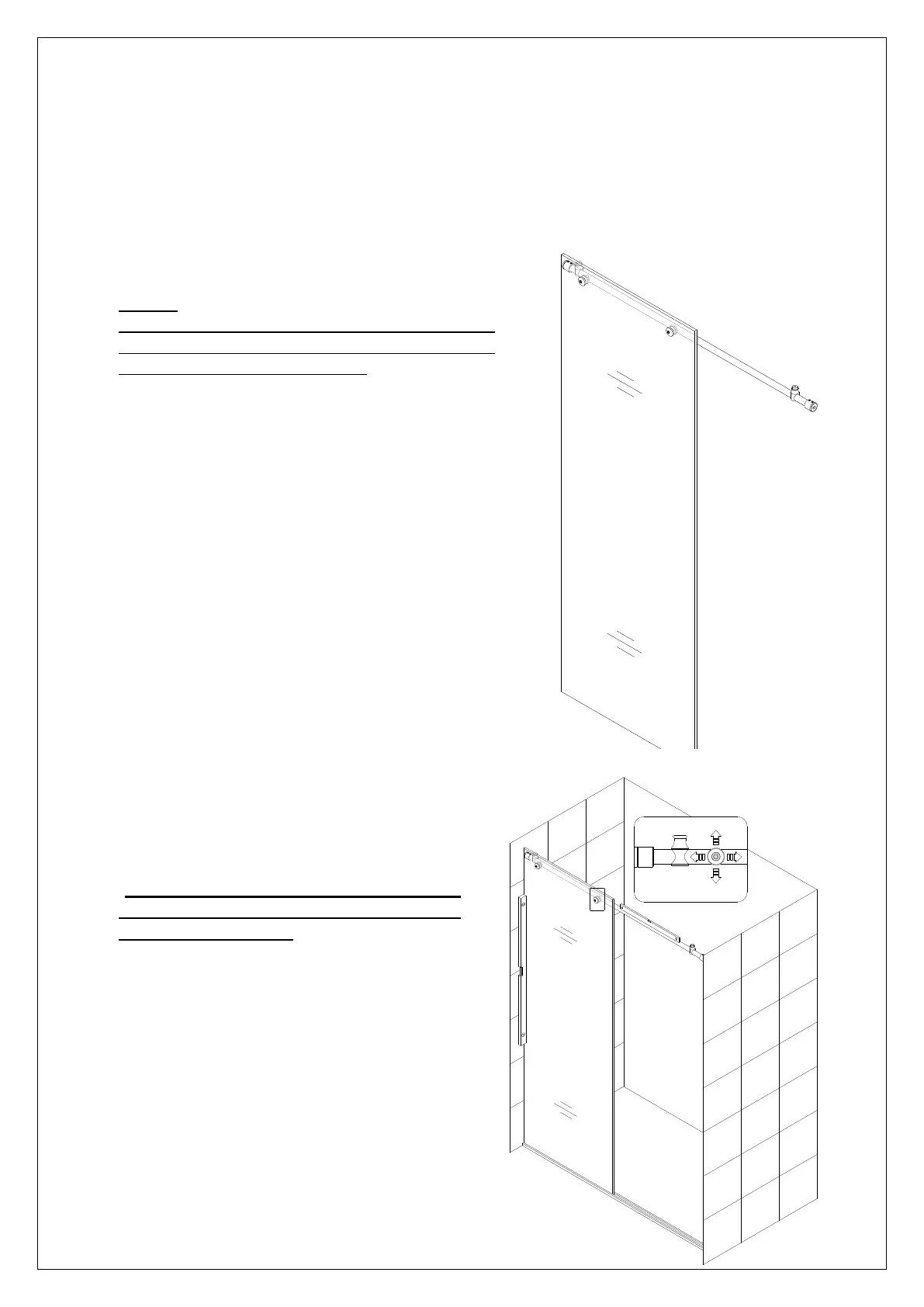

Fig. 5
NOTE:
Before you install the Stationary glass (02), you
have to take the Glass door (05) into the shower
room and lean it against the wall.
Fig. 6
6. Place the Stationary glass (02) on the
threshold and push the bottom edge into the
groove of the Threshold (15) as shown on
Fig. 7 and Fig. 8.1.
Butt up the Stationary glass against the wall.
(Please note that the Guide rail (03)
secured on the Stationary Glass should
face inside the shower).
Make sure the Stationary glass and the
Guide rail are leveled. If a horizontal
adjustment is required, adjust it in the Glass
brackets (07).
See Fig. 7 for details.
Fig. 7
