Vibe Machine V-1, User’s manual ENG, rev.1 , 12/2011
www.drybell.com
DryBell
Doc. No. DM0923 / Page 2

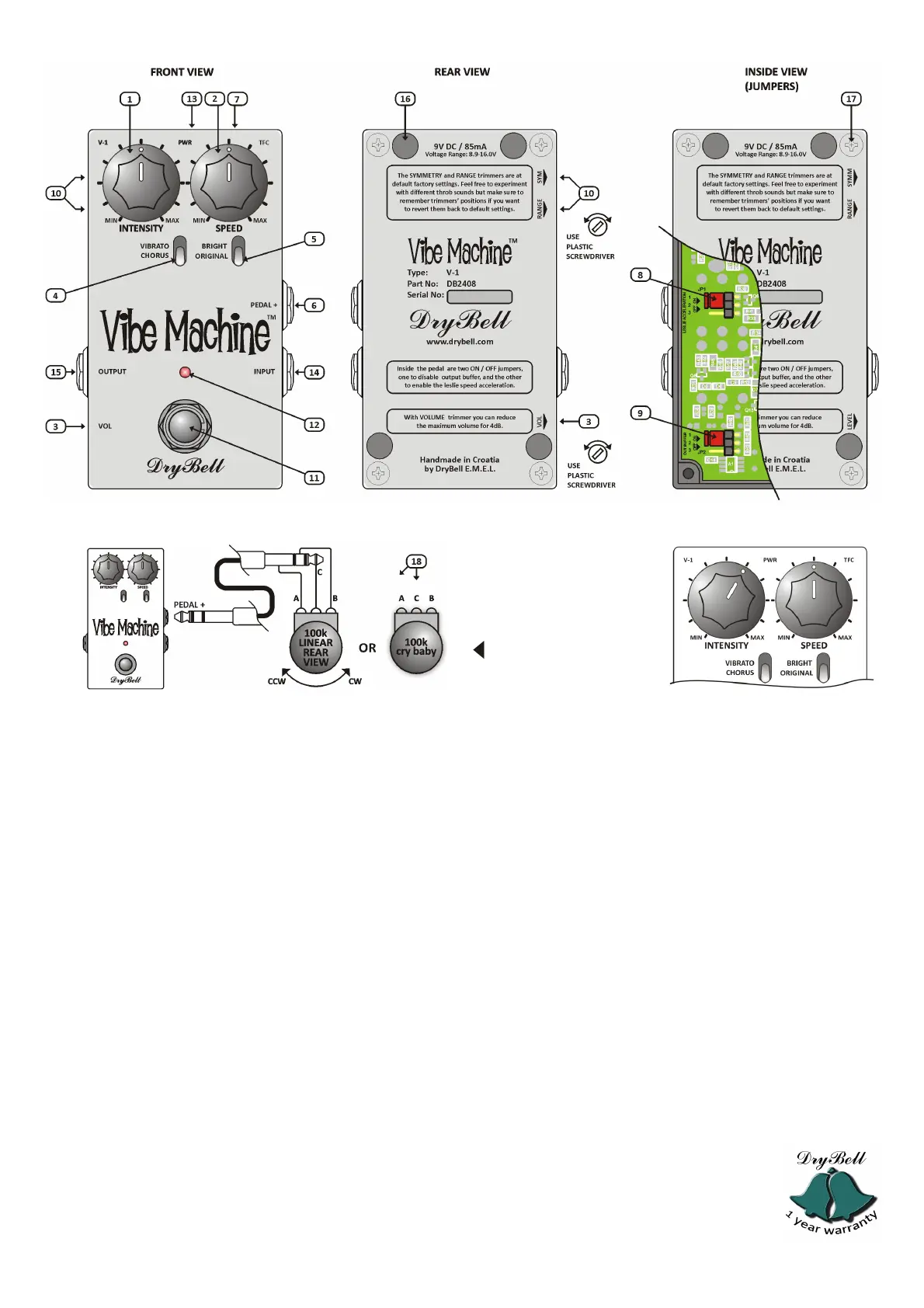

EXTERNAL SPEED CONTROL PEDAL WIRING DIAGRAM START SETTINGS
When the potentiometer
rotates clockwise (CW),
speed increases. To change
the direction, replace A and
B wires. In the wiring
diagram on the left,
Potentiometers are shown
from their back side.
RUBBER FEET 16
The package contains 4 adhesive rubber feet (15) which can be placed on the bottom of the Vibe Machine pedal (15). If you use a velcro strip for installation pedals on
your pedal board, you don't have to use the rubber feet. The velcro strip should be mounted in a way that the 4 lower screws (17) can be removed afterwards.
PACKAGE CONTENTS
Vibe Machine pedal (1pcs), rubber feet in a plastic bag (4 pcs), user's manual (1 pcs), protective bubble packaging (1pcs) and foam (1pcs), all in a cardboard with
cover.
1 YEAR BASIC WARRANTY
DryBell E.M.E.L. guarantees that the product will work without defects in materials or craftsmanship, for a period of one (1) year from the date of the purchase.
Footswitch and internal bulb replacement is covered during the first six months of warranty. If a defect occurs within the warranty period, it will be removed as soon
as possible, without service charges for the owners of the product. If the product can not be repaired, and the model is no longer produced, the product will be
replaced with a newer model, or in an agreement with the buyer, with a similar product. DryBell will extend the warranty period for the duration of service failure if
not repaired within 30 days (not including transportation time). If the initial buyer sells the product to a new owner, the warranty transfers to the new owner. All
transportation costs for the service within the warranty period are paid by the owner of goods. This warranty covers manufacturing defects that occurred while the
product was used according to DryBell recommendations and instructions. The warranty does not cover loss or theft of products, and excludes failures caused by
misuse, mechanical damage, liquid damage of any kind, device falling, unauthorized modification, shock surge in electricity supply, lightning, improper storage and
natural disasters. DryBell assumes no liability for any damages resulting from the use of this product. Using the product the customer accepts all conditions set forth
hereby. Please, visit www.drybell.com occasionally for updates on this product.
5 YEAR EXTENDED WARRANTY
The original purchaser of the DryBell product is entitled to one free product repair in the period of extended warranty. Extended warranty period runs from the date
of expiry of the basic warranty (1 year) to five (5) years from the date of purchase. If your product warranty has expired, repairs are performed by installing the
original parts and are charged. During the extended warranty, transportation costs in both directions pays the original purchaser.
CONTACT:
DryBell Electronic Musical Equipment Laboratory
Almet Stubica d.o.o.
Address: Toplicka cesta 44,
49240 Donja Stubica, CROATIA
E-Mail: info@drybell.com
Many thanks to all my colleagues from www.vault66.org
forum for all of the support and advice while developing
and testing Vibe Machine pedal. Zvonch.
This is 100% tested product.
