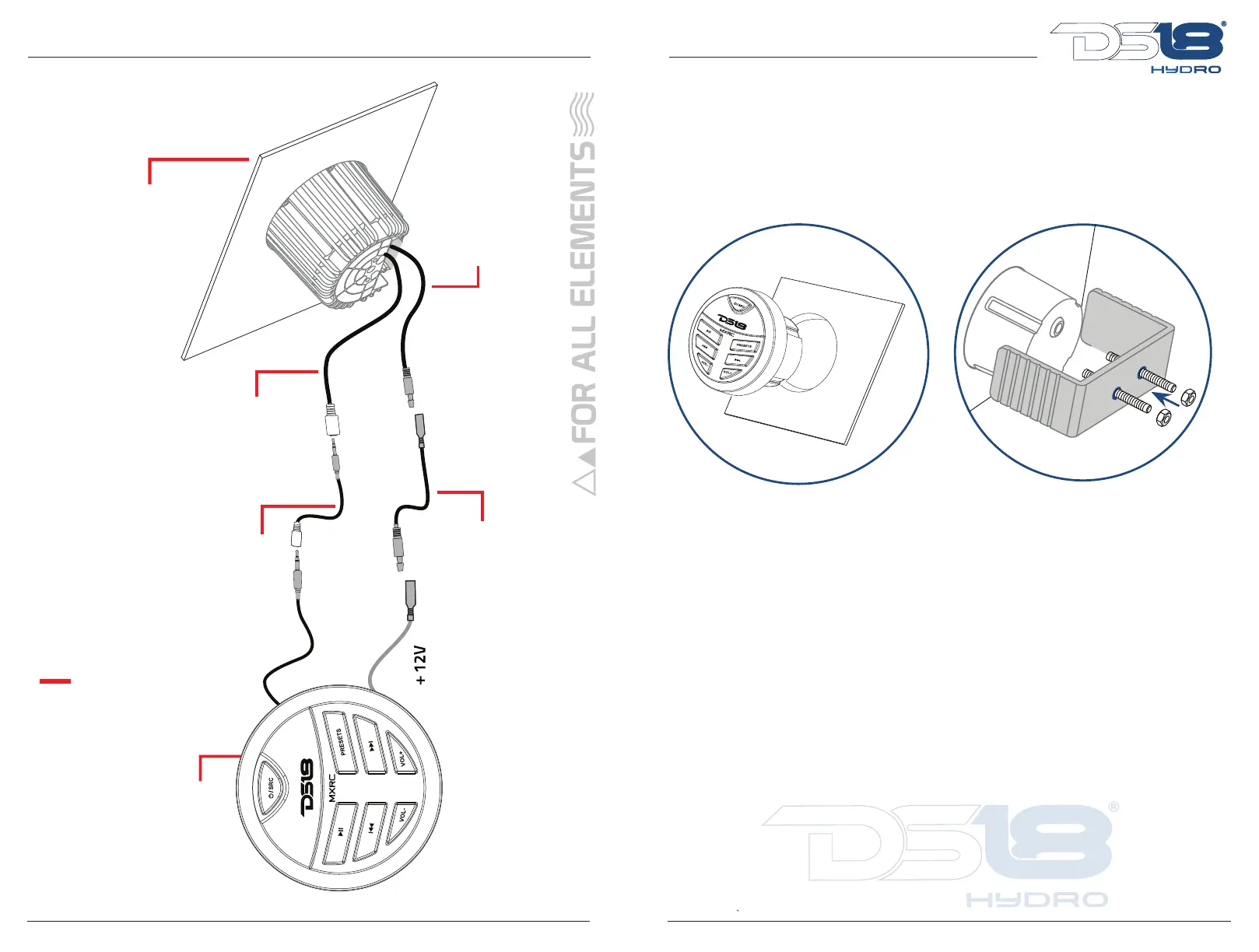

WIRING AND CONNECTION DIAGRAM
Once a suitable location has been determined, drill the hole and secure your
MXRC using the metal mounting bracket. If the bracket needs to be shortened,
remove the appropiate number of breakaway segments using a pair of pliers
INSTALLATION
MXRC
MARINE & POWERSPORT
REMOTE CONTROL
Remote Buttons
Backlight Output
Remote Buttons
Backlight Intput
Remote Control
Input
(DS18 MRX Marine Radio)
6 ft Extention Cord
(Included)
6 ft Extention Cord
(Included)
MRX
MXRC
1. The MXRC should be installed by a professional technician.
2. Please read the instructions and operation of equipment carefully before installing.
3. Make sure to connect first the other wires before power connection.
4. To avoid short circuit; Please make sure all the exposed wire are insulated.
5. Please secure all the wires after installation.
6. Please make connection to the headunit accordingly to this instruction manual.
Wrong connection may cause severe damage.
7. This player is only for 12V DC electric systems and please make sure your boat
belongs to this kind of cathode grounding electrical system.
8. Please connect the wires rightly. Wrong connection will cause malfunction or
damage the electrical system.
