DS18 PRO-TW2L User Manual

PRO-TW2L

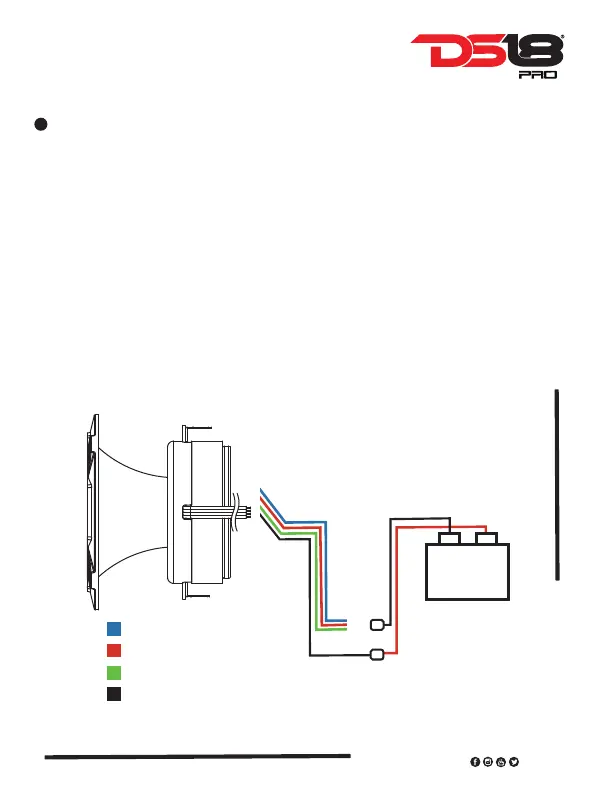

To connect without LED Control Module (LED-BTC),
Connect as Shown in the Following Diagram:
2
Black wire “BK” Connected to Battery Positive (+) 12V
White Color Light “R” ; “B” and “G” Connected to Battery Negative (-)
Green Color Light “G” Connected to Battery Negative (-)
Red Color Light “R” Connected to Battery Negative(-)
Blue Color Light “B” Connected to Battery Negative (-)
Purple Color Light “R” and “B” Connected to Battery Negative(-)
Yellow Color Light “R” and “G” Connected to Battery Negative (-)
Cyan Color Light ”B” and “G” Connected to Battery Negative (-)
#
