SBP8A INSTALLATION
Main Power Connections
ConnectBAT+,GNDandREMwiresaccordingly.AsuitablefuseMUSTbeinstalledonthe
BAT+leadwithin18"ofthebatteryforprotectionofthevehicle’selectricalsystem.
BAT+ (BATTERY)
Fuse Rating
Whenreplacingthefuse,make
sure new fuse is the correct type
andamperage.Usinganincorrect
fuse could damage the amplifier.
TheSBP8Auses(1)7.5 amp ATO
style fuse.
Power/Ground Wire Size
Foroptimumperformance,useonly
12 gaugewireorlarger.Makesure
to use the same size power and
ground wire.

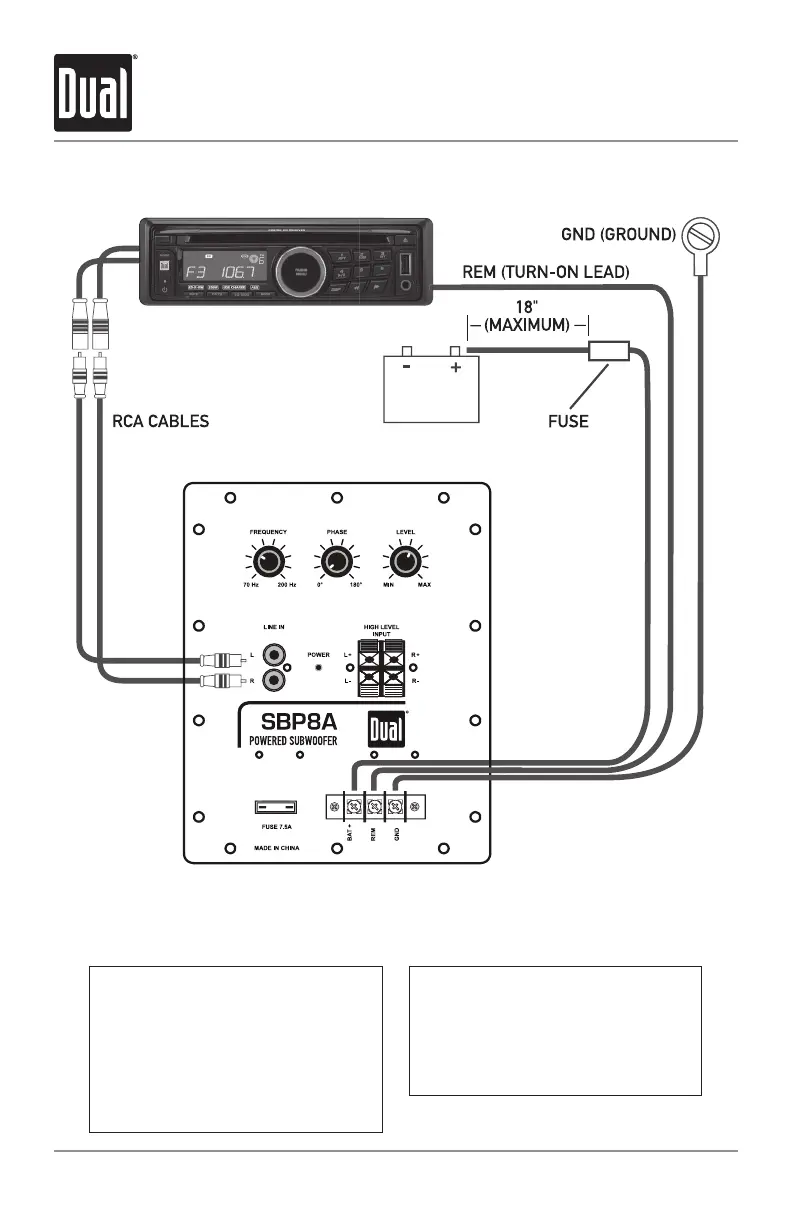

Typical Wire Routing
