4HP13 Split System Heat Pump
seer
13
4HP13 Split System Heat Pump
seer
13

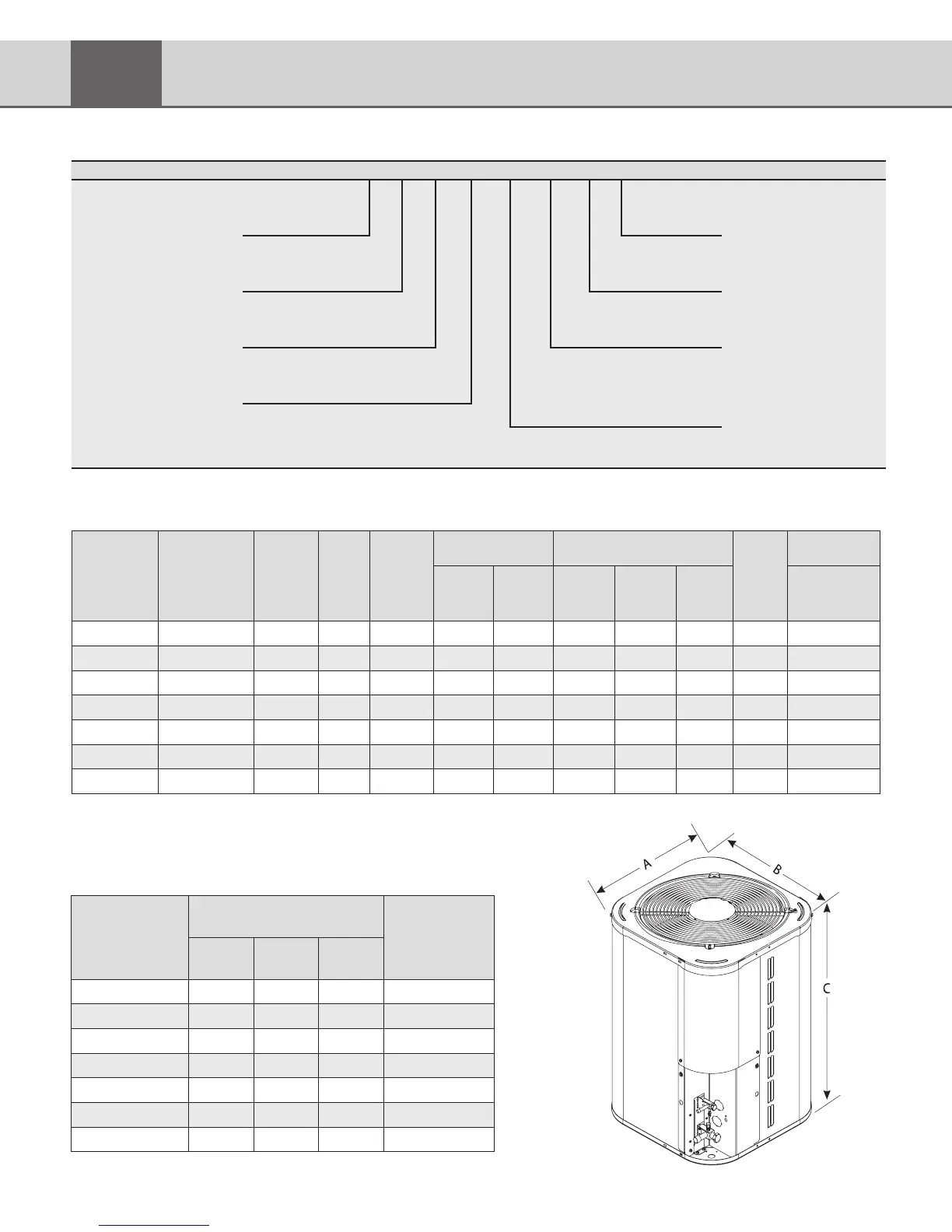

Model Number Guide
4 HP 13 B 24 P - 1 A
4 = R410a Refrigerant Minor Revision Code
HP = Heat Pump Major Revision Code
13 - 13 SEER Nominal
Electric
p - 208-230V/60Hz/1Ph
B = Wire Guard
L = Louvered
Nominal Capacity
24 - 24,000 Btuh
Model Volts/Hz/Phase
Voltage
Range
Min.
Circuit
Amp.
Max.
Over-
current
Device
(amps)
Compressor Fan Motor
Refrig.
Charge
(oz.)
Weight (lbs.)
Rated
Load
(amps)
Locked
Rotor
(amps)
Rated
Load
(amps)
Rated HP
Nom.
RPM
Wire Guard/
Louvered
4HP13*18P 208-230/60/1 197/253 11.90 20 9.0 48 0.7 1/10 1075 117 151/166
4HP13*24P 208-230/60/1 197/253 11.10 15 8.3 43 0.7 1/10 1075 130 169/185
4HP13*30P 208-230/60/1 197/253 14.4 20 10.6 54 1.1 1/5 1075 159 186/203
4HP13*36P 208-230/60/1 197/253 19.6 30 14.7 74 1.2 1/4 1075 151 197/208
4HP13*42P 208-230/60/1 197/253 20.2 30 15.2 84 1.2 1/4 1075 170 218/229
4HP13*48P 208-230/60/1 197/253 25.1 35 19.1 102 1.2 1/4 1075 267 260/277
4HP13*60P 208-230/60/1 197/253 26.7 40 20.4 105 1.2 1/4 1075 251 262/279
Physical and Electrical Data
Unit Dimensions & Sound Ratings
Model
Dimensions
Sound
Ratings
(dBa)
A
(in.)
B
(in.)
C
(in.)
4HP13*18P 30 30 34 77
4HP13*24P 30 30 34 78
4HP13*30P 30 30 38 78
4HP13*36P 30 30 26 77
4HP13*42P 30 30 26 77
4HP13*48P 30 30 38 79
4HP13*60P 30 30 42 79
* -B or L
* -B or L
