RHP13 Package Heat Pump
- Page 8 -

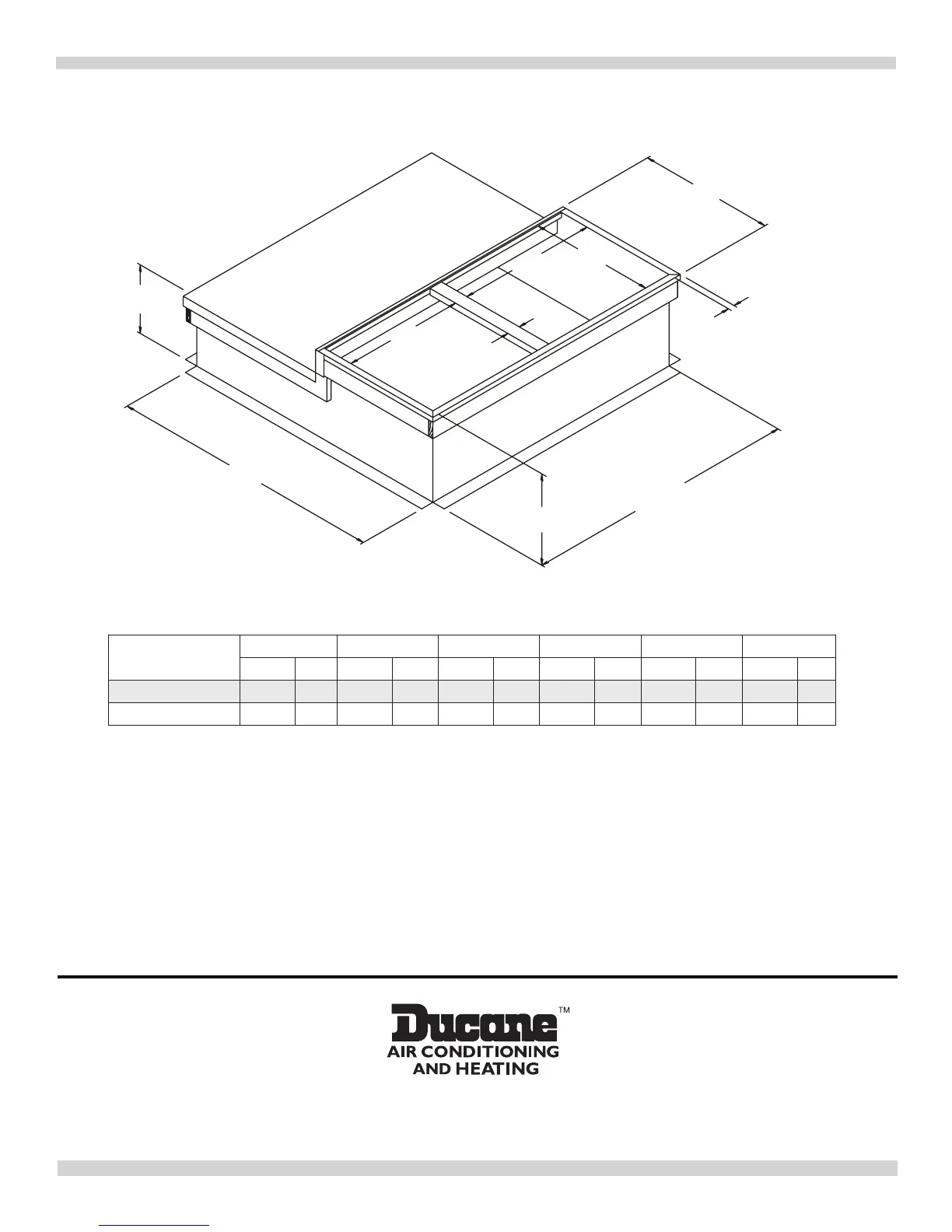

ROOF CURB
A
E
C
D
F
B
10-1/2 (267)
14 (356)
2 (51)
1-1/2 (38)
Model No.
A B C D E F
in mm in mm in mm in mm in mm in mm
RHP13A 24, 30, 36 40 1016 40 1016 19 483 20 508 18 457 21-1/2 546
RHP13A 42, 48, 60 44-1/8 1121 49 1245 19-1/2 495 23-1/2 597 23-1/2 597 23 584
