Assembling the grass bag

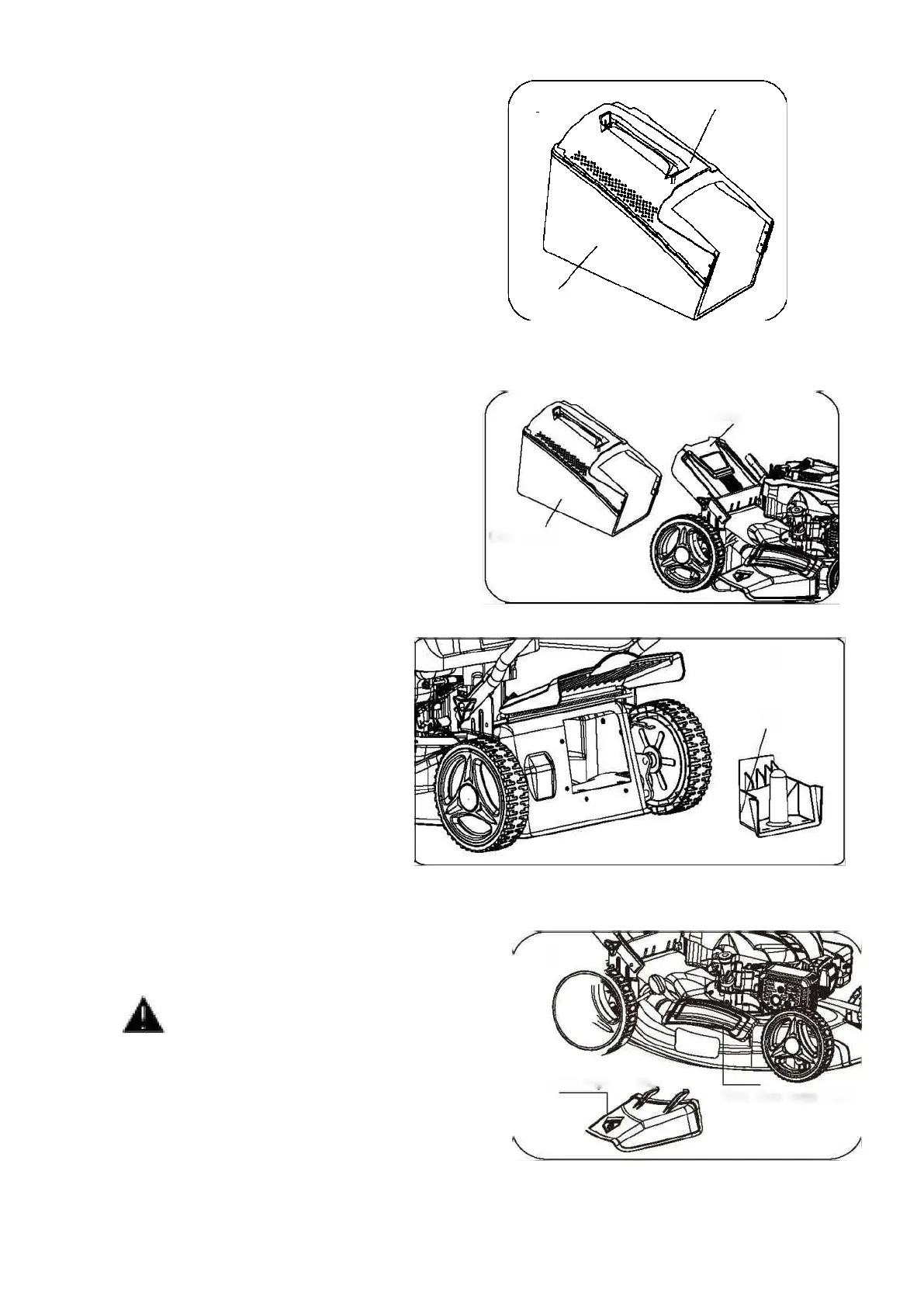

As shown in Fig 6
2. Clip the plastic clips over the metal frame. Make
sure that these cIips are fuIly secured to the metal
frame.
Assembling the grass bag onto the mower
As shown in Fig 7
3. Lift the rear discharge cover with one hand
and hook in the grass bag.
4. Release the rear discharge cover to secure
the grass bag in position
Assembling the mulching plug
As shown in Fig 8
4. Re move the grass bag
5. Push the plastic mulching plug into
the discharge chute Until it is locked
in place.
6. Then release the flap, it will close
back to cover the mulching plug.
Assembling the side discharge chute
As shown in Fig 9
NOTE: When use side discharge function.
First need remove the grass Bag and plug the
mulching plug.
3. According to the pictures show the way,
Lift the side discharge cover with
One hand and hook in the side discharge
Duct with the other hand.
4. Release the side discharge cover to secure
the duct in position
