Ducati DUCATI999 - Coolant temperature function; Backlighting function

18
E

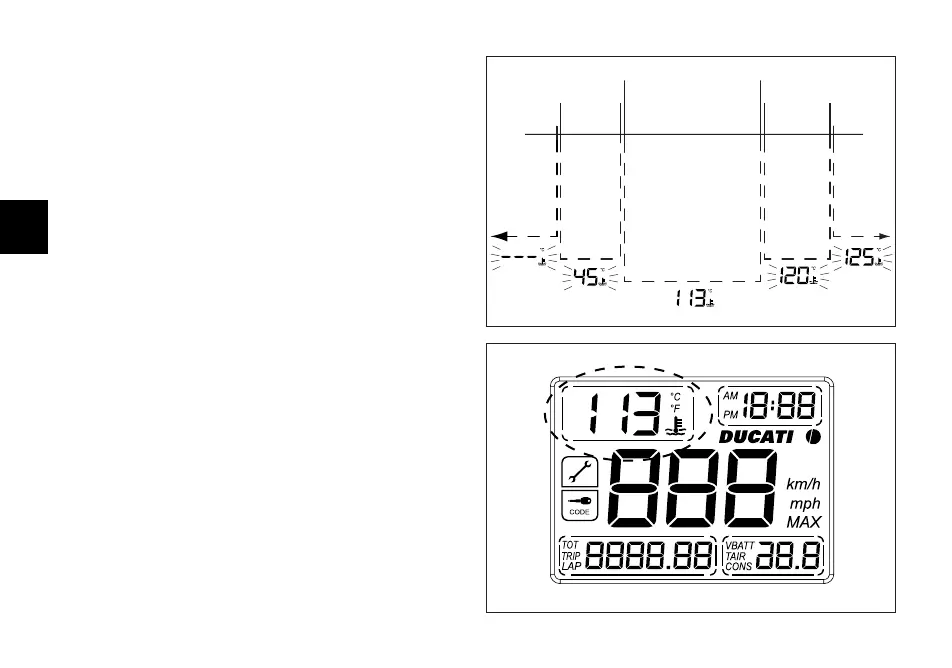

Coolant temperature function (fig. 12 and 13)
When coolant temperature drops below -40 °C/-40 °F,
some flashing dots appear on the display and the amber
EOBD light comes on (8, fig. 4).
When coolant temperature is between -39 °C /-38.2 °F
and +45 °C/+113 °F or between +120 °C/+248 °F and
+124 °C/+255.2 °F, the display provides a flashing
temperature indication.
When coolant temperature is between +46° C/+114.8 °F
and +119 °C/+246.2 °F, temperature indication stays on
permanently.
When coolant temperature exceeds +125 °C/+257 °F, a
flashing 125 °C/257 °F temperature indication appears on
the display, and the amber EOBD light comes on (8, fig.
4).
Backlighting function
A light sensor detects light intensity and adjusts LCD and
warning lights intensity accordingly.
When the parking light is on, the instrument panel lights
up.
- 39 ° C
- 40
° C
+ 46
° C
+ 45
° C
+ 119 ° C
+ 120
° C
+ 124
° C
+ 125
° C
fig. 12
fig. 13
