Ducati SCRAMBLER 2023 User Manual

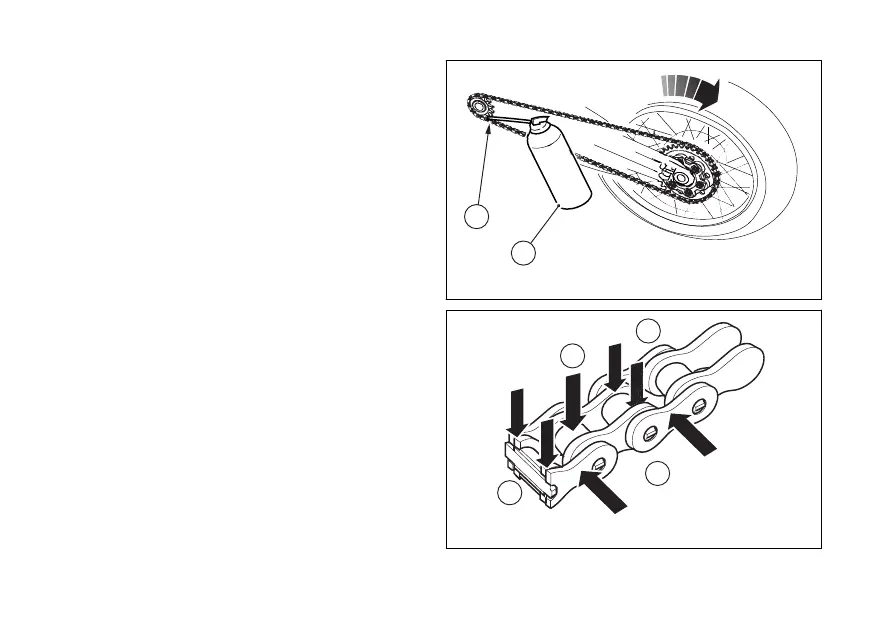

Apply the lubricant jet (1) inside the chain between
the inner and outer links, in point (2) immediately
before the engagement point on the sprocket.
Due to the centrifugal force, the lubricant, made
fluid by the solvents contained in the spray, will
expand in the working area between the pin and the
bush, ensuring  lubrication.
Repeat the operation by aiming the lubricant jet to
the central  (5) of the chain so as to lubricate the
rollers (4), and to the outer plates (6) as shown in the
figure.
1
2
Fig 186
5
4
5
6
Fig 187
277

Ducati SCRAMBLER 2023 Specifications

General

Displacement	803 cc
Max Power	73 hp (54 kW) @ 8, 250 rpm
Fuel Injection	Electronic fuel injection, 50 mm throttle body
Transmission	6-speed
Front Suspension	Kayaba 41 mm upside-down fork
Rear Suspension	Kayaba rear shock, pre-load adjustable
Frame	Tubular steel Trellis frame
Front Tire	110/80 R18
Rear Tire	180/55 R17
Engine Type	L-Twin, Desmodromic distribution, air-cooled
Front Brake	330 mm disc, radial 4-piston caliper
Rear Brake	245 mm disc, 1-piston floating caliper
Dry Weight	170 kg (375 lbs)
Fuel Tank Capacity	13.5 l (3.6 US gal)
