Duke FWM3-22 - FWM3-34 MB1 & SB1 Interface Cable Schematic; FWM3 - 2 High;3 High;4 High MB2 & SB2 Interface Cable Schematic

23
Product Holding Unit
Restaurant Equipment Manual
MODIDIED ‘T’
CONNECTOR
KEYBOARD
CONNECTION
(FRONT)
KEYBOARD
CONNECTION
(REAR)(MB1 ONLY)
WARMER
3
PROGRAM
WARMER 3
WARMER 2
WARMER 1
SCOREBOARD
POWER
COMM
CONNECTION
BETWEEN
KEYBOARDS
(4-HIGH MODELS
ONLY)
CONNECTION
BETWEEN
KEYBOARDS
(4-HIGH
MODELS
ONLY)
MODIDIED ‘T’
CONNECTOR
KEYBOARD
CONNECTION
(FRONT)
KEYBOARD
CONNECTION
(REAR)
(MB2 ONLY)

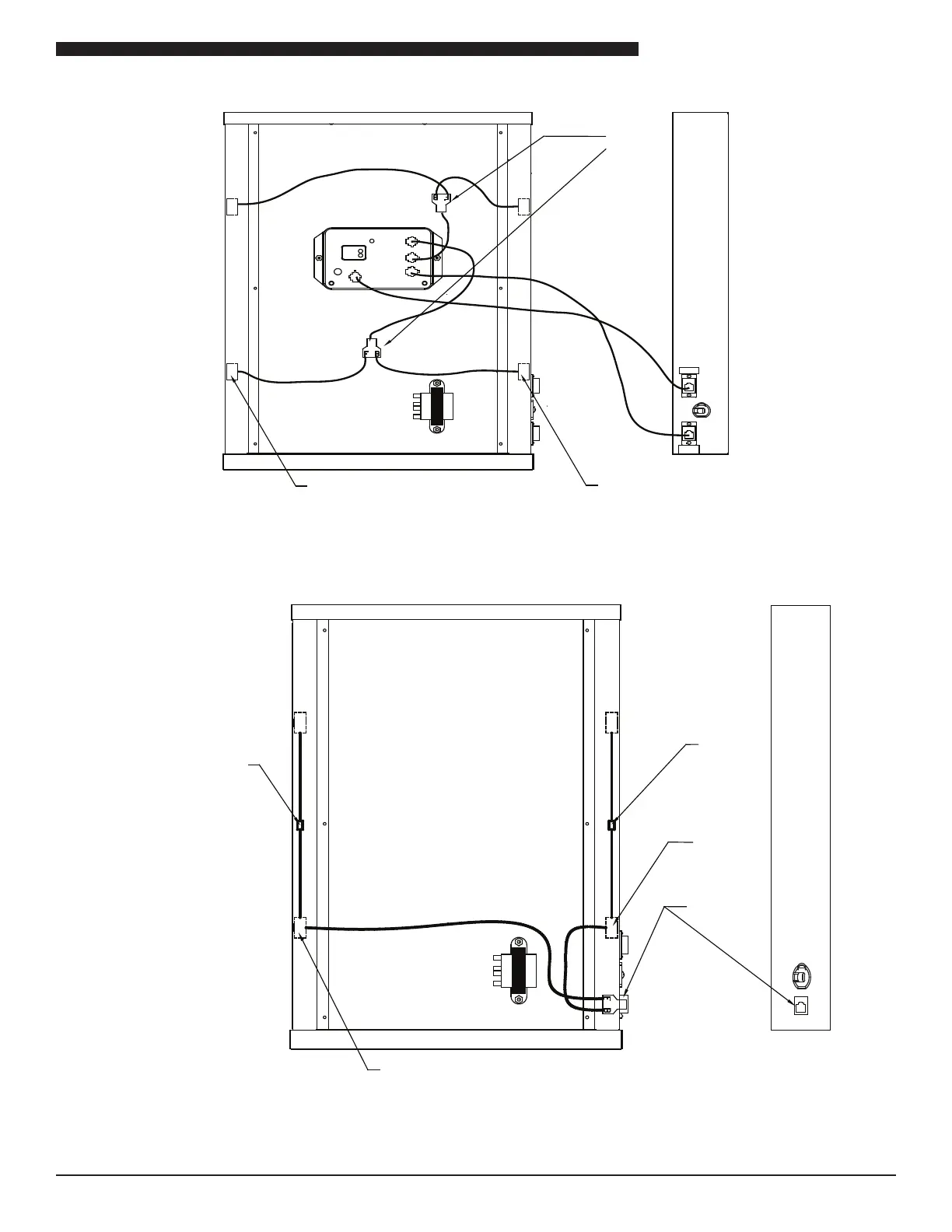

Interface Cable Wiring Schematics
Figure 6.3: FWM3-34 MB1 & SB1Interface Cable Schematic
Figure 6.4: FWM3 - 2 High/3 High/4 High MB2 & SB2 Interface
Cable Schematic
