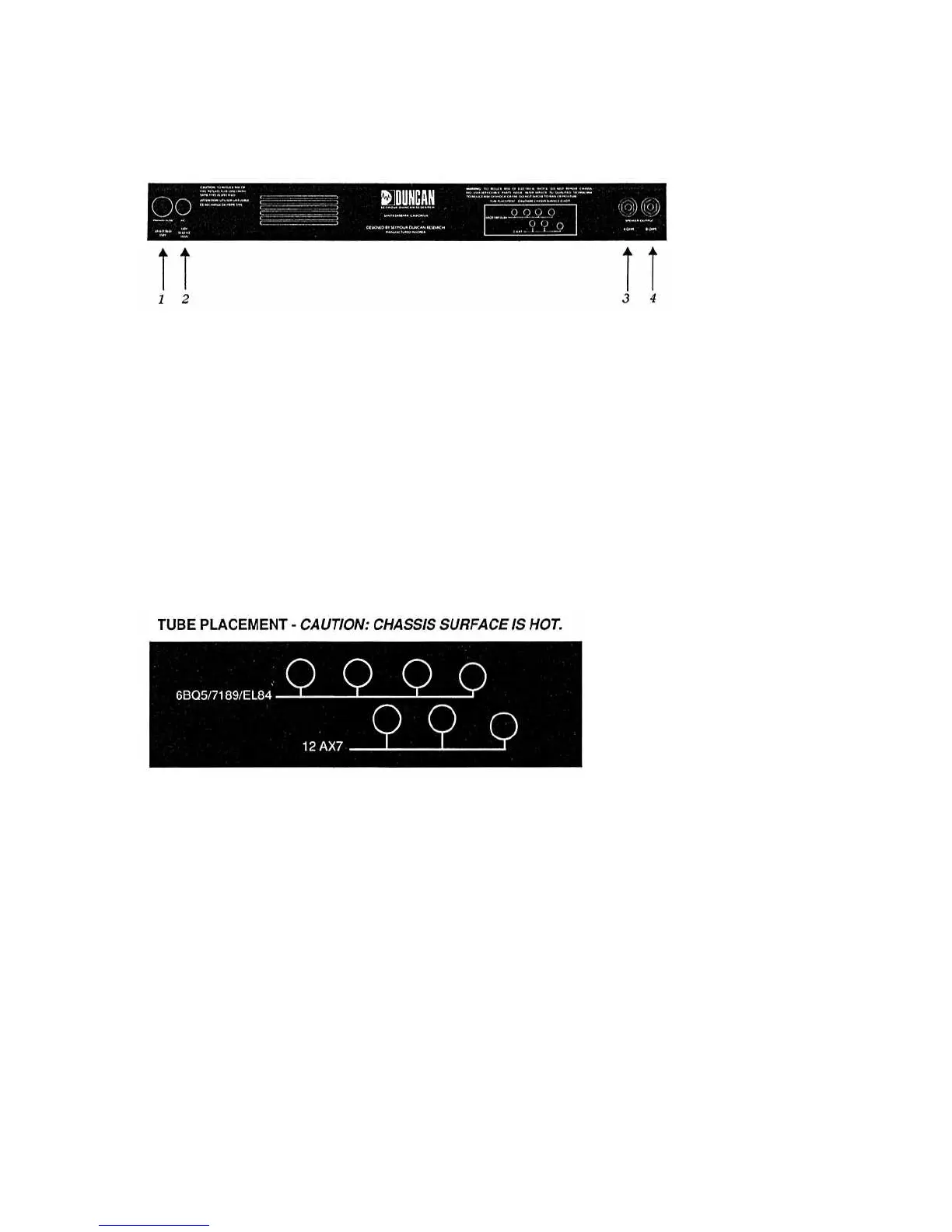

84-40 TUBE AMP REAR PANEL
Primary fuse
For I 1OOV & 120V operation, use a 2A/250V slo-blo
For 220V & 240V operation, use a 1A/250V slo-blo
AC cord
4-ohm speaker output
8-ohm speaker output.
TUBE CHART
The 84-40 Tube uses:
3 12AX7 (also known as ECC 83 or 7025) preamp tubes, and
4 EL-84 (also known as 6BQ5 or 7189) power tubes.
