Dune 4WD AN2240SP - How to Install a Gas Cartridge; Step 1: Prepare Cartridge Installation; Step 2: Insert Gas Cartridge

DOUBLE BURNER BUTANE STOVE WITH HOTPLATE
HOW TO INSTALL A GAS CARTRIDGE
1. Turn the control knob to the OFF position.
Make sure that the cartridge lever is in the
UNLOCK position. If the gas knob is in the
ON position the cartridge cannot be put
into position.
2. Open the cartridge cover and insert the
gas cartridge.
Make sure that the cartridge slot fits into
the cartridge lever guide on the valve
inside the stove.
(Caution: Use only approved butane gas
cartridge UL147B or EN417)
OPERATING INSTRUCTIONS
Each burner requires an individual cartridge to operate. The left hand burner operates from a
cartridge situated in the left hand cartridge bay and the right hand burner operates from a cartridge
situated in the right hand cartridge bay. The following instructions are written for an individual side as
this can be used independently. The operator is to ensure that the instructions are correctly applied
to each side of the appliance.
UNLOCK
LOCK
P
U
S
H
A
N
D
T
U
R
N
AN2240SP-2016-10-07-V3

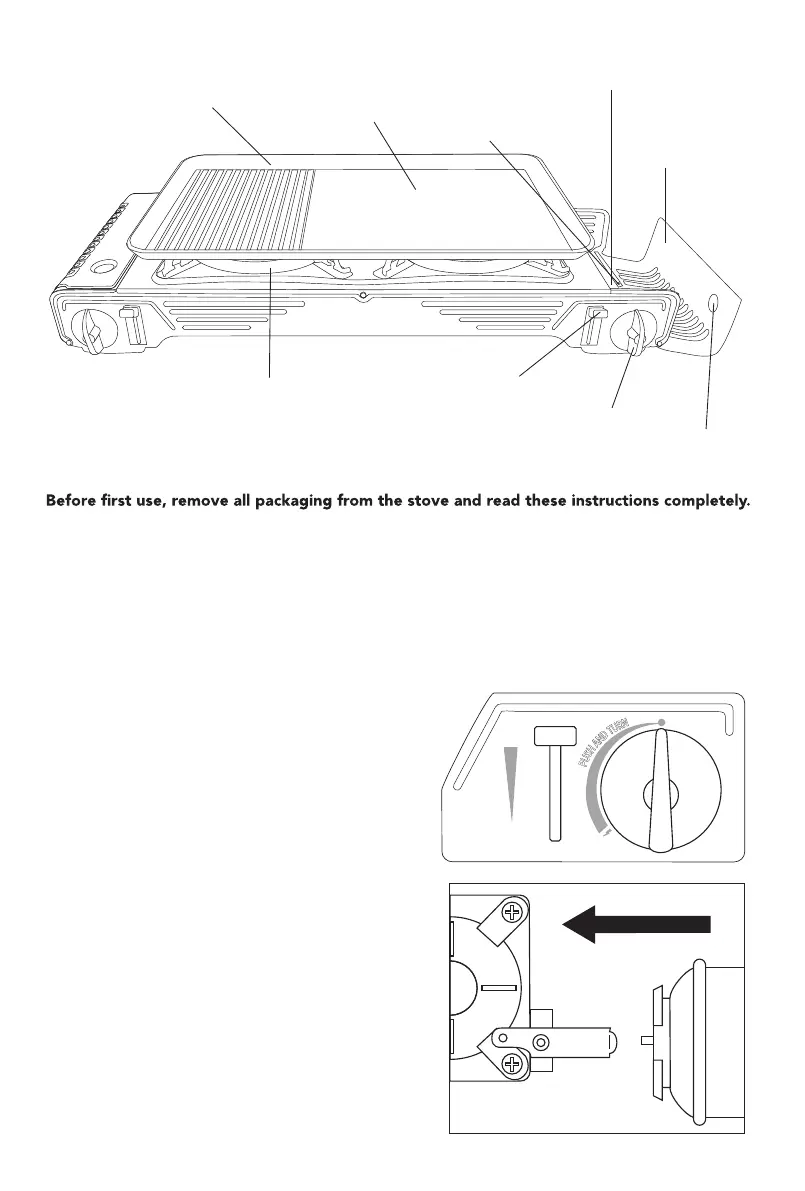

Plate
Valve & Cartridge Guide
Cartridge Cover
Reference Window
Control Knob
Cartridge Lever
Drip Pan
Fat/Grease Channel
Safety Reset Lever
