M196 A/B BOX
DESCRIPTION
• Routes instrument signal to two
separate output paths
• Select between two separate
signal paths or run both at the
same time
• Thru jack allows you to connect
to a tuner or amp that receives a
constant signal from your guitar,
unaected by the A/B switches
• Output jacks are terminated to
ground in bypass
• All switching is true hardwire

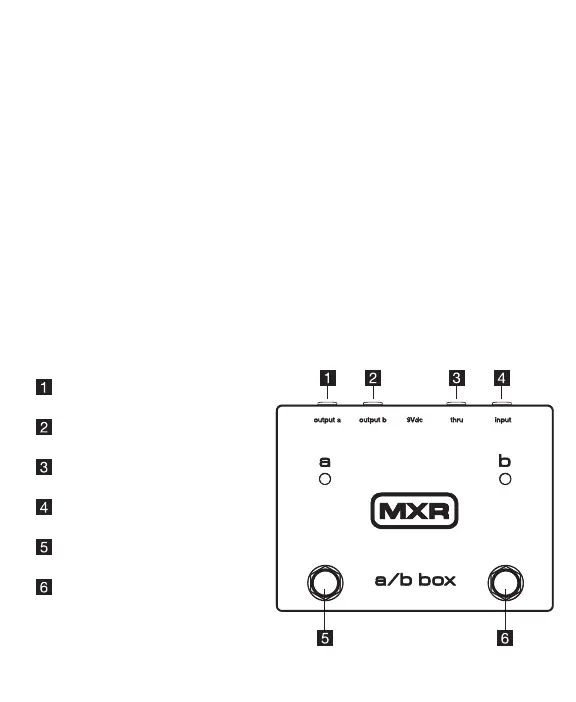

CONTROLS
OUTPUT A sends instrument
signal to Amp A
OUTPUT B sends instrument
signal to Amp B
THRU to tuner or sends
constant signal to an amp
INPUT receives
instrument signal
FOOTSWITCH A activates
OUTPUT A
FOOTSWITCH B activates
OUTPUT B
POWER
The MXR A/B BOX is powered
by one 9 volt battery (remove
bottom plate to install), a 9 volt
AC Adapter such as the Dunlop
ECB003/ECB003EU or a power
supply such as the DC Brick
™
.
