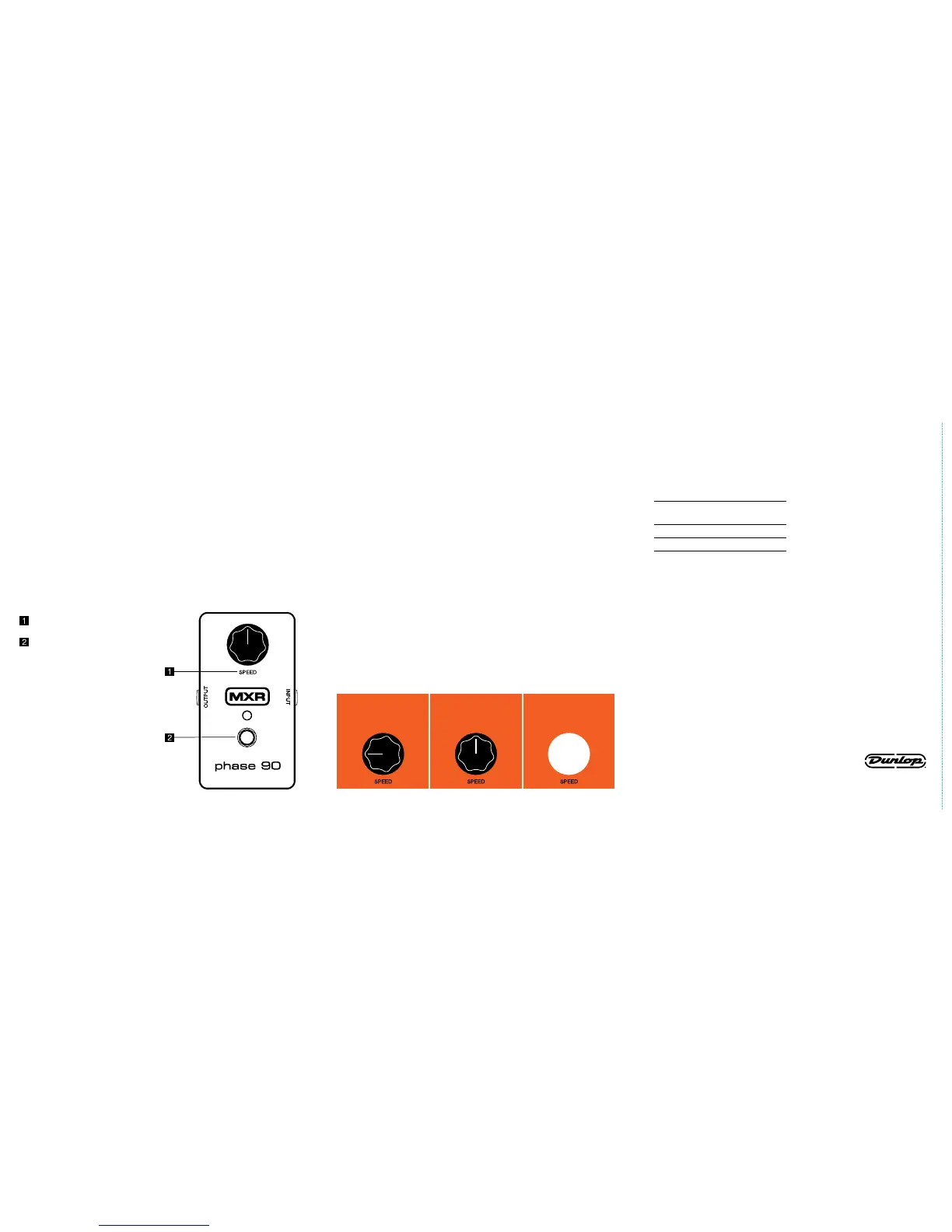

SAMPLE SETTINGS
M101 PHASE 90
CLASSIC 80’s
ROCK
YOUR SETTING
PSEUDO LESLIE
DUNLOP MANUFACTURING, INC.
P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658
CONTROLS
SPEED knob controls
overall effect rate
FOOTSWITCH toggles effect on/
bypass (red LED indicates on)
POWER
The MXR Phase 90 is powered
by one 9-volt battery (remove
bottom plate to install), a 9-volt
AC Adapter such as the Dunlop
ECB003/ECB003EU or a DC Brick
™
power supply.
DESCRIPTION
• Add’s shimmery velocity to
lead licks and a thick
swoosh to chords
• Works well with bass, keyboards
and even vocals
• True bypass
DIRECTIONS
• Run a cable from your guitar
to the Phase 90’s INPUT jack
and run another cable from the
Phase 90’s OUTPUT jack to
your amplier.
• Start with the SPEED control
at 12 o’clock.
• Turn the effect on by depressing
the footswitch.
• Rotate the SPEED knob
clockwise for a faster phase
effect or counterclockwise
for a slower phase effect.
SPECIFICATIONS
Input Impedance 1 MΩ
Output Impedance 10 kΩ
Nominal Intput Level -20 dBV
Nominal Output Level -20 dBV
Noise Floor* -96 dBV
Bypass True Hardwire
Current Draw 5 mA
Power Supply 9 volts DC
*A-weighted
