2.8 Stitch length limitation
2.8.1 Stitch length limitation in case of subclass 367-170115; -170315 and subclass 367-180115; -180315
According to the used sewing equipment the stitch length adjustment
must be limited to 6 mm or 8 mm.
Hint:
Adjusting the stitch length limitation on the subclass 367-170315 and
367-180315 is done through the upper setting wheel.
–

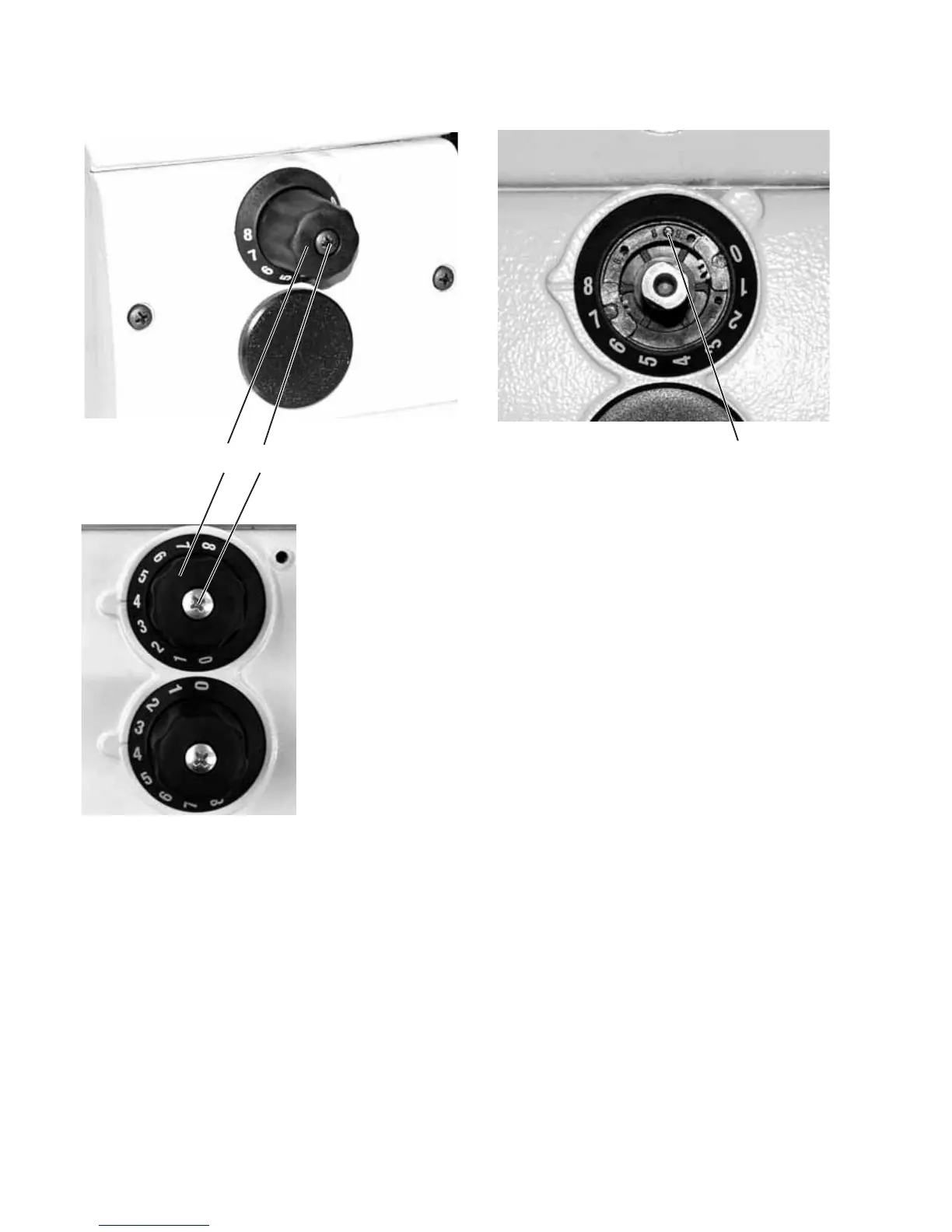

Unscrew screw 1 at the stitch length setting wheel.
–
Pull off setting wheel 2.
–
Unscrew core pin 3 and screw it in the corresponding drill-hole.
The drill-holes are provided with figures corresponding to the stitch
length.
–
Make adjustment according to chapter 2.3.1 “Basic adjustment of
stitch adjustment “.
–
Put on setting wheel and tighten with screw 1.
26
21
3
367-170315
367-180315
367-170115
367-180115
