Setup
Operating Instructions 867 - 04.0 - 03/2018 109

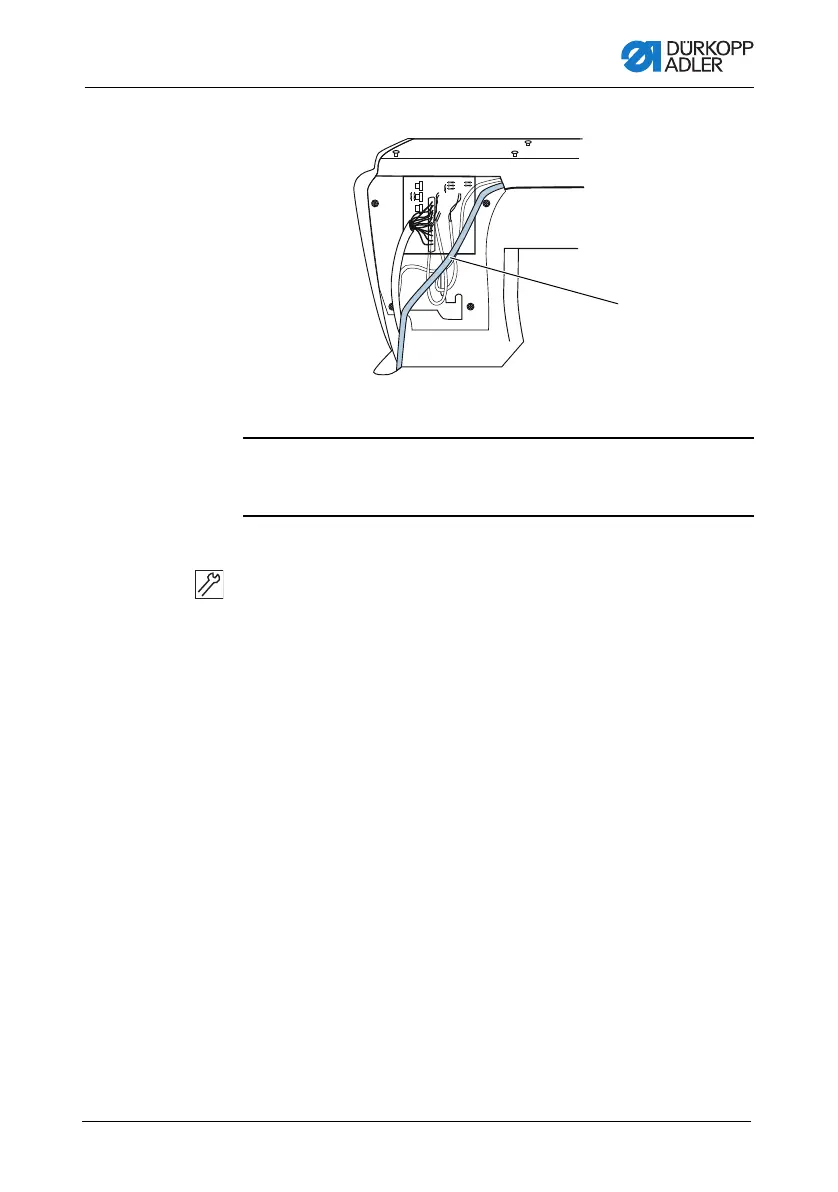

Fig. 61: Assembling the control panel (2)
Additional step for long arm machines:
3. Install the connecting cable (6) through the cable duct (3).
4. Install the connecting cable (6) in the machine arm.
5. Feed the connecting cable (6) along with the remaining cables
through the hole in the tabletop.
6. Insert the plug of the connecting cable (6) into the socket of
the control.
7. Screw on the valve cover (2) and the upper machine cover (1).
(6) - Connecting cable
