5.3.2 Earthing an installation

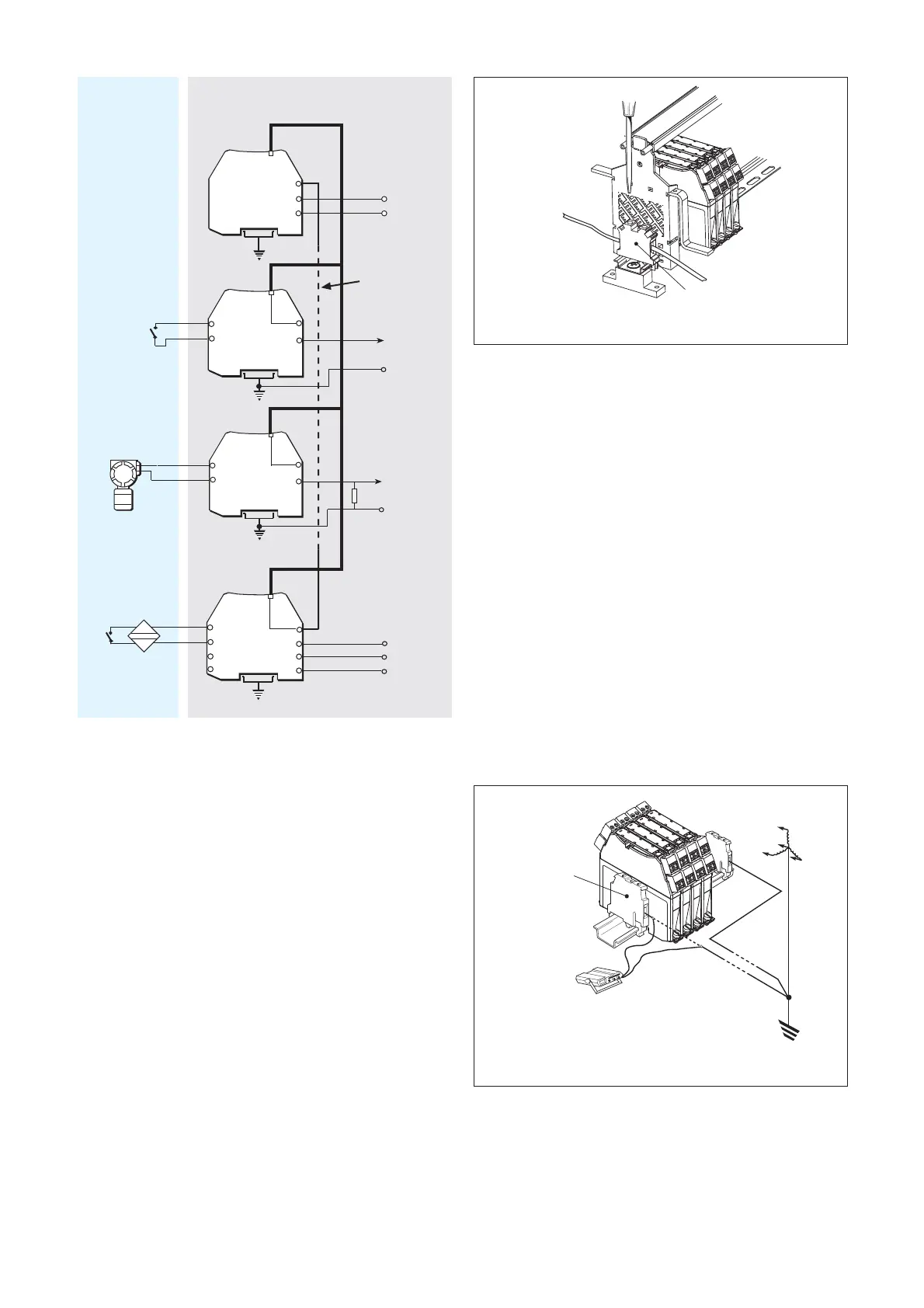

See figure 15. Connections from the DIN-rail to a suitable plant earth
are made from ETL7000 earth terminals. These clip onto the DIN-rail
as described in section 4.3.3 to make the vital earth connection with
the rail and the barriers. They are provided with two screw-clamp
terminals, to one of which a copper conductor to plant earth should
be connected. This should have a resistance no greater than 1Ω
though to increase safety and reduce interference, a resistance as
close to 0.1Ω as possible is preferable. The cross-sectional area of
the conductor should be as least 4mm
2
(12 AWG).
It is advisable to mount one ETL7000 earth terminal at each end of a
column of barriers to provide redundancy by connecting both
ETL7000 terminals to the plant earth. This makes it possible to
introduce a multimeter into one of the loops to measure loop
resistance without breaking the earth connection (figure 16) – a test
which should be done periodically. In these circumstances, resistance
for each cable loop should not exceed 2Ω.
The IS plant earth conductors should be clearly identified to warn
against unauthorised interference. Though not mandatory, it is
recommended that this should be done by winding blue insulating
tape round the conductors at intervals along their length.
WARNING
Do not use earth foot terminal as an IS earth termination.
Make IS earth connections using an ETL7000 earth
terminal as described in section 5.3.2.
5.3.3 Earthing an earth rail assembly
On installations which include earth rail assemblies (see section
4.3.4) an earth conductor, normally copper wire with a cross-
sectional area of at least 4mm
2
(12AWG) must be connected
between ETM7 earth terminals located at each end of the rail and the
‘spare’ terminals on the ETL7000 terminals at each end of the column
of barriers. See figure 17.
5.3.4 Hazardous-area equipment isolation
Hazardous-area equipment and interconnections should be isolated
from earth sufficiently to be capable of withstanding a 500V isolation
test. Such tests can, however, only be undertaken when the area is
gas free so it is fortunate that most circuits can be tested at low
voltages. To do this:
a) Disconnect from the barrier any cable connected directly to earth
or returned through a barrier with a nominal voltage of less than
10V.
b) Check the resistance to earth of the safe-area terminals with a
multimeter; it should be greater than 100kΩ.
Note: some hazardous-area equipment (eg, pH and conductivity
instrumentation) is unable to withstand this insulation test. As an
alternative, in these circumstances the system can comply with the
installation requirements described in IS sketch 121. See also
12.2.4.in BS EN 60079-14.
