DC IN 19V jack connection type
1. Connect the power cord to the AC adaptor.

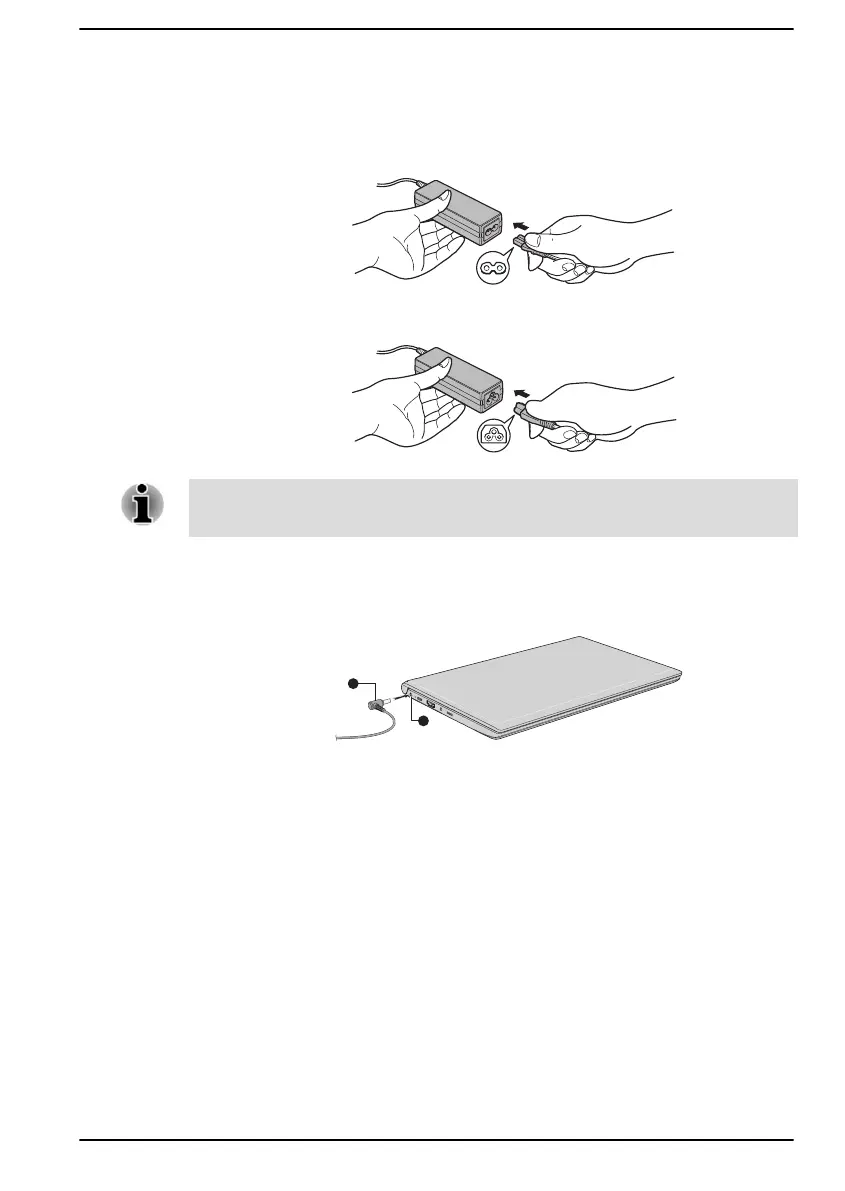

Figure 2-1 Connecting the power cord to the AC adaptor (2-pin plug)
Figure 2-2 Connecting the power cord to the AC adaptor (3-pin plug)
Either a 2-pin or 3-pin adaptor/cord is included with the computer
depending on the model.
2. Connect the DC output plug of the AC adaptor to the DC IN 19V jack
on your computer.
Figure 2-3 Connecting the DC output plug to the computer
1. DC IN 19V jack
2. DC output plug
Product appearance depends on the model you purchased.
3. Plug the power cord into a live wall outlet. The DC IN/Battery indicator
glows.
USB Type-C™ port connection type
1. Connect the power cord to the AC adaptor.
User's Manual
2-4
To Next Page
