DC IN 19V jack connection type
1. Connect the power cord to the AC adaptor.

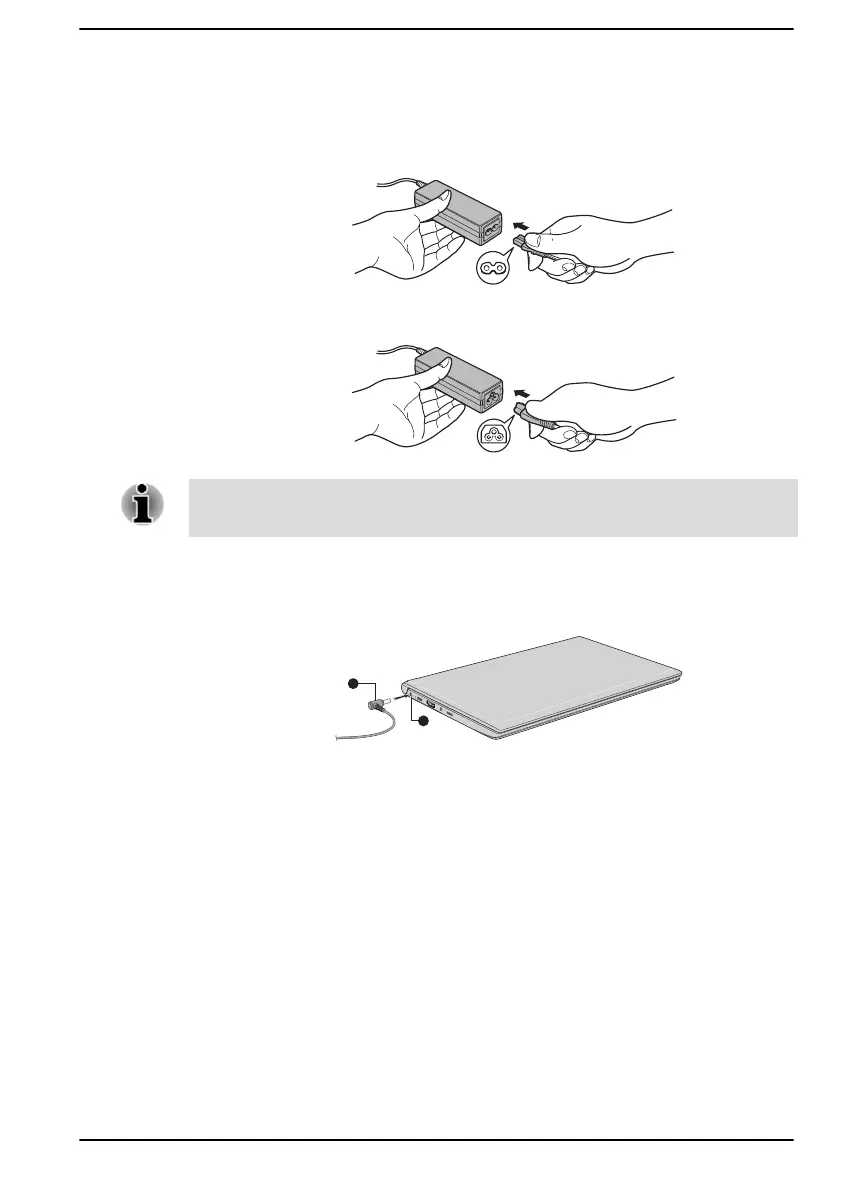

Figure 2-1 Connecting the power cord to the AC adaptor (2-pin plug)
Figure 2-2 Connecting the power cord to the AC adaptor (3-pin plug)
Either a 2-pin or 3-pin adaptor/cord is included with the computer
depending on the model.
2. Connect the DC output plug of the AC adaptor to the DC IN 19V jack
on your computer.
Figure 2-3 Connecting the DC output plug to the computer
1
2
1. DC IN 19V jack
2. DC output plug
Product appearance depends on the model you purchased.
3. Plug the power cord into a live wall outlet. The DC IN/Battery indicator
glows.
USB Type-C™ port connection type
1. Connect the power cord to the AC adaptor.
