Dynacord Speaker User Manual

APPLICATION GUIDE
113

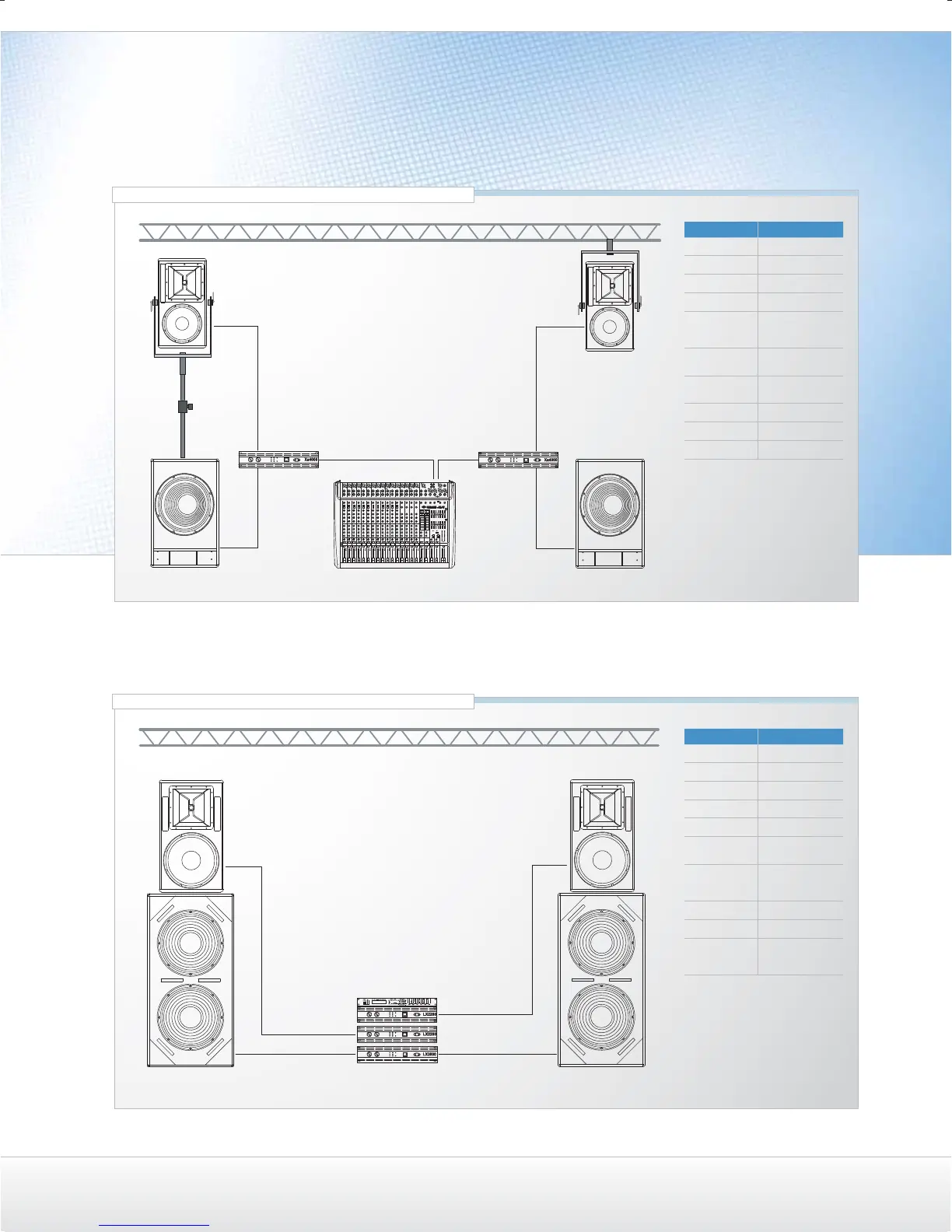

VariLine COMPACT CLUB PA-SYSTEM
Confi guration Active 2-Way
Cabinet Types
2 x VL 122, 2 x SUB 18
Amplifi ers
2 x Xa 4000
Controllers
-
Cables
-
Accessories
2 x FB-VL 122,
2 x PCL M10 or
2 x TC-02
Horizontal
Coverage
each cabinet 90°
Total Amp Power
2 x 1100 W Sub,
2 x 900 W Top
Typical Distance
10 - 20 m
Options
-
Comments
-
VariLine HI-POWER CLUB PA SYSTEM
Confi guration Active 3-Way
Cabinet Types
2 x VL 152, 2 x SUB 28
Amplifi ers
LX 3000, 2 x LX 2200
Controllers
DSP 260 or DSP 600
Cables
-
Accessories
-
Horizontal
Coverage
each cabinet 90°
Total Amp Power
2 x 1100 W High,
2 x 1100 W Mid,
2 x 1500 W Sub
Typical Distance
-
Options
-
Comments
Amplifi er Output Ch. B is
connected to Output Ch.
A Pin 2+ / 2-
VL 122
VL 122
TC-02
PCL M10
FB-VL122 FB-VL122
CMS 1000 - CMS 2200SUB 18
SUB 28
VL 152 VL 152
SUB 28
MF Pin 1+ / 1-
MF Pin 1+ / 1-
HF Pin 2+ / 2-
HF Pin 2+ / 2-
SUB 18
Xa 4000Xa 4000
