Dynamite MACH2 .19T User Manual

© 2010 Horizon Hobby, Inc.
Dynamite engines are manufactured in Taiwan and
distributed worldwide by:
Horizon Hobby, Inc.
4105 Fieldstone Rd.
Champaign, IL 61822
www.horizonhobby.com
DYNP5517
DYN0710
DYNP5531
DYNP5534
DYNP5535
DYNP5507
DYNP5532
DYN0711
DYNP5380
DYNP5515
DYNP5511
DYN0716
DYN0717
DYN0718
DYNP5533
DYNP5518
CARBURETOR
DYNP5546
DYN0712
DYN0722
DYN0721
DYN0720
DYN0715
DYNP5331
DYNP5331
DYNP5331
DYNP5563
DYNP5564
DYNP5519
DYN0714
DYNP5519
DYNP5520
DYNP5519
DYNP5523
DYNP5521
DYNP5523
DYN0713
DYNP5519
DYNP5565
DYN0719
DYNP5528

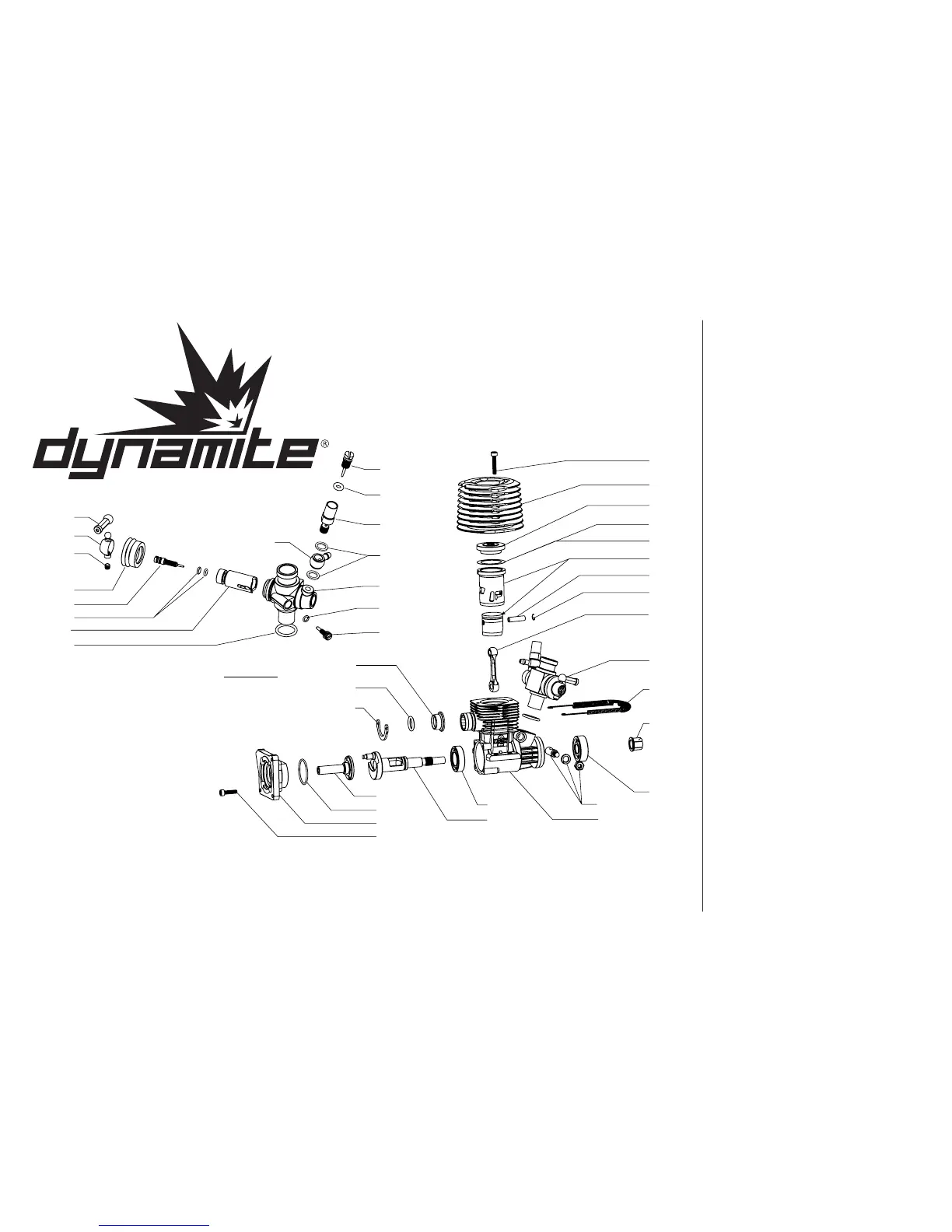

Spare Parts Listing
Stock # Description
DYN0710 Cylinder Head/ Red: .19T
DYN0711 Connecting Rod:19T
DYN0712 Carburetor: 19T
DYN0713 Carburetor Body: DPS 19T
DYN0714 Throttle Barrel: DPS 19T
DYN0715 Crankcase: 19T
DYN0716 Crankshaft: 19T
DYN0717 Start Shaft: .19T
DYN0718 Backplate: 19T
DYN0719 Exhaust O-ring: .19T
DYN0720 Exhaust Manifold Adaptor (2): .19T
DYN0721 Exhaust Manifold Spring: 19T
DYN0722 Clutch Nut: 19T
DYNP5331 Carb Ball Link/Ball End
DYNP5380 Front Bearing: DPS .18RE/.21XP
DYNP5507 Wrist Pin Clips (2): DPS .12/.18RE
DYNP5511 Rear Bearing: DPS .12/.18RE
DYNP5515 Carb Retainer Post: DPS .12/.18RE
DYNP5517 Cylinder Head Screw(4): DPS .12/.18RE
DYNP5518 Back Plate Screws 2.6X8mm (2): DPS.12
DYNP5519 2-Needle Carb O-Ring Set: DPS .12/.18RE
DYNP5520 High-Speed Adjustable Needle: DPS
.12/.18RE
DYNP5521 High-Speed Needle Holder: DPS .12/.18RE
DYNP5523 Fuel Inlet Nipple/Washers: DPS .12
DYNP5528 Engine Header Seal: DPS .12, 18RE
DYNP5531 Head Button: DPS .18RE
DYNP5532 Head Shim, .1mm (3): 18RE
DYNP5533 Head Shim, .2mm (3): 18RE
DYNP5534 Piston/Sleeve: 18RE
DYNP5535 Wrist Pin: 18RE
DYNP5546 Backplate O-ring (2): DPS .12/.18RE
DYNP5563 Slide Carburetor Boot: DPS .12RE
DYNP5564 Slide Carb Low-Speed Needle: DPS .12RE
DYNP5565 Idle Screw: DPS .12/.18RE
Printed 02/10
17897
MACH2 .19T
