DCO7

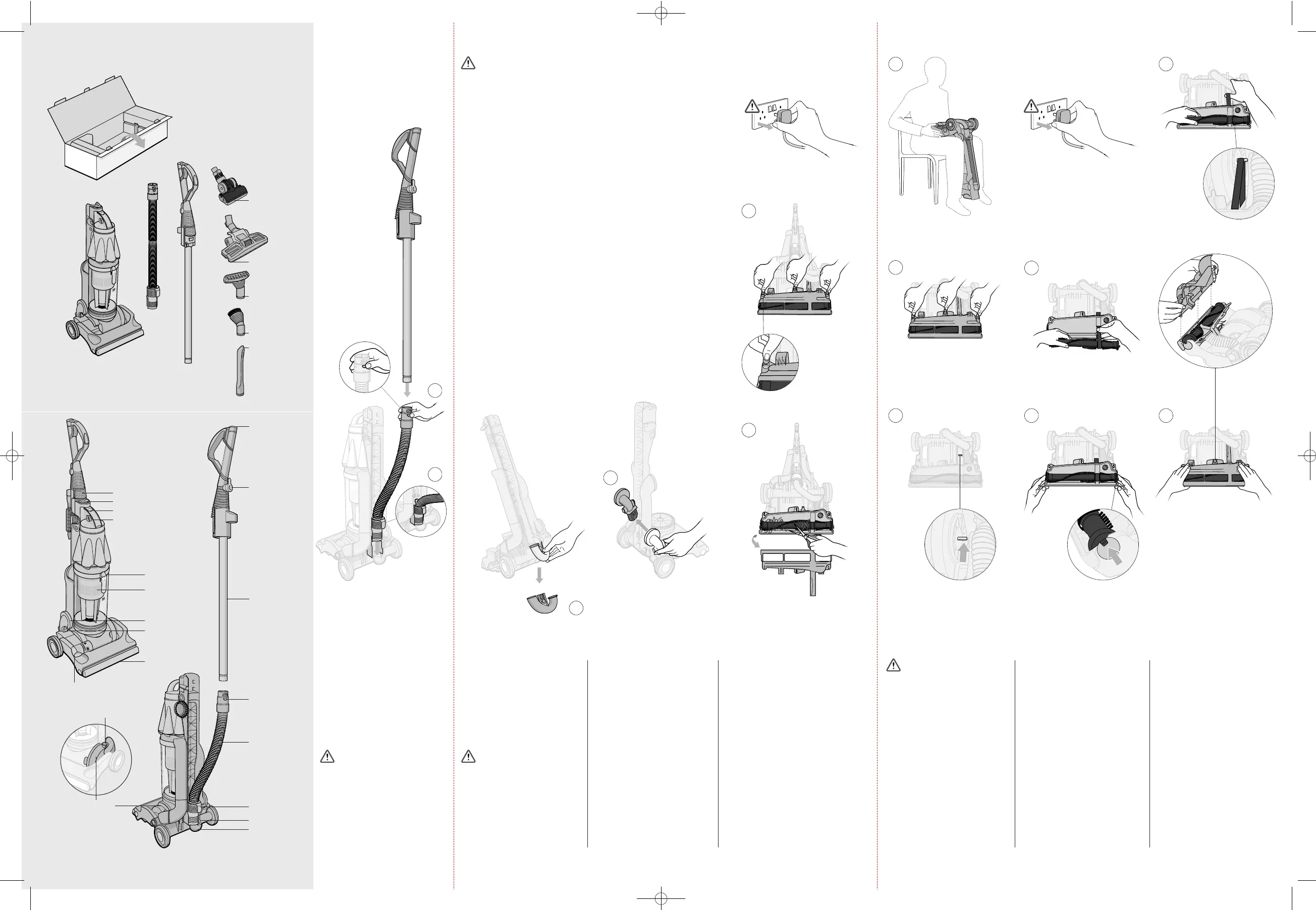

Assembling DCO7
1 Slide hose into runners at
back of machine, making
sure tab clicks into place.
2 Press wand release button
and slide wand down into
hose.
Lower cable winder
Airway inspection
(U-bend)
U-bend release clip
Hose
Wand cap
Upper cable winder
Wand
Wand release button
On/off switch
Filter housing
Valve release clips
Soleplate
Bin emptying trigger
Cyclone release catch
Shroud release catch
Shroud
Filter release catch
Hose release
Airway inspection valve
*
Supplied with certain models only,
or available as accessories.
Stair tool
Crevice tool
Brush tool
1
2
U-bend airway
inspection
Tilt machine forward and
slide out U-bend airway
inspection
A. Check inside
for blockages.
The ratchet noise warns
that the brushbar is
obstructed. Disconnect
the machine from the
electrical outlet before
removing the obstruction.
Airway inspection valve
Squeeze valve release
catches to remove airway
inspection valve
B. Check
inside for blockages.
Brushbar
Lie cleaner on its front.
1 Undo fasteners using a coin and
remove soleplate.
2 Clear the brushbar obstruction,
carefully cutting away any threads.
3 On machines without the brush
control the brushbar spins at all
times – even when the machine is
upright. Young children should be
supervised to ensure they do not
play with the DC07 or place body
parts near the cleanerhead.
Replace soleplate and tighten fasteners.
1
2
A
B
Changing/fitting your belt
(Models without brush control only)
1 Recommended position
for changing the belt,
with wand removed.
2 Undo fasteners using a
coin and remove soleplate.
3 Remove any debris and
check spindle is clean.
4 To replace the belt –
remove brushbar, loop
belt around brushbar
and feed through hole.
5 Using the back of the
cleaner as a lever, loop
the belt around your
thumb. Turn the belt
through 90 degrees.
Stretch and release
over spindle.
Belt should be free of
twists as shown.
6 Replace the brushbar
and check end caps are
securely in place.
7 Rest the three tabs on
the inside of the bumper
strip, before pivoting
soleplate into position
and tighten fasteners.
1
2
3
4
5
6
7
Floortool*
Mini turbine head*
DCO7 models without
brush control are not
suitable for hard floors,
as the brushbar cannot be
turned off. We recommend
models with brush control
for homes with mixed and
hard flooring.
Brushbar on/off
(Brush control models only)
Turn power off and unplug
before changing/fitting the belt.
Turn power off and unplug
before checking for blockages.
Make sure all parts have
been replaced securely
before using your
machine.
Allow machine to cool
for at least 1 hour
before changing/fitting
your belt.
