Dyson DC21 - Page 32

29
service manual

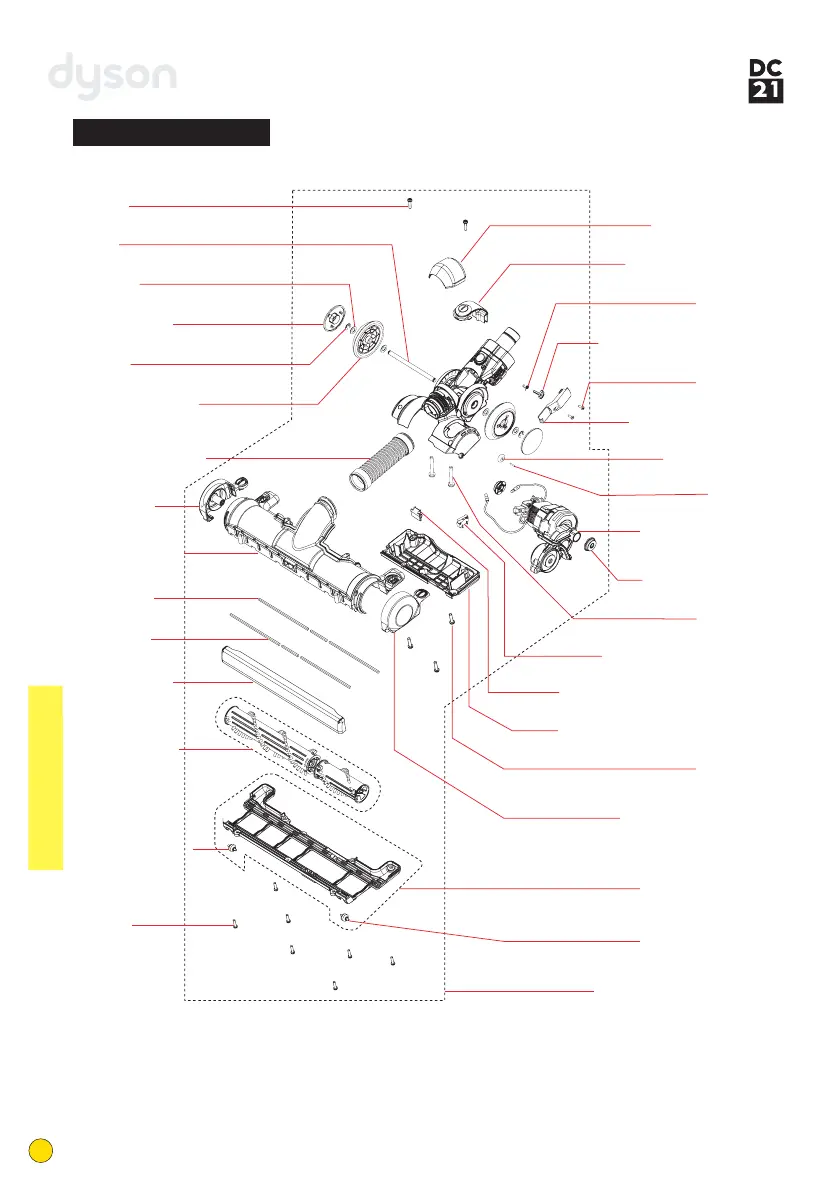

Parts recognition
Power floor tool assy
Screw
Internal Hose Assy
Bumper Strip
Ropeseal
Brush Housing
Assy
Ropeseal
Brushbar Assy
Soleplate
Wheel
Screw
End Cap
Assy Right
Washer
Glamour Cap
E-Clip
Outer Wheel Hub
Axle
Gimble Cover
Brushbar Actuator
Spring
Screw
Stow Microswitch Cam
Stow Neck Cover
Stow Wheel
Brushbar Motor
Screw
Brushbar Microswitch
Brushbar Motor Mount Front
Brushbar Motor Cover Lower
Screw
End Cap Assy Left
Soleplate Assy
Power Floor Tool Assy
Soleplate Axle
Brushbar Motor
End Mount
Axle
