13

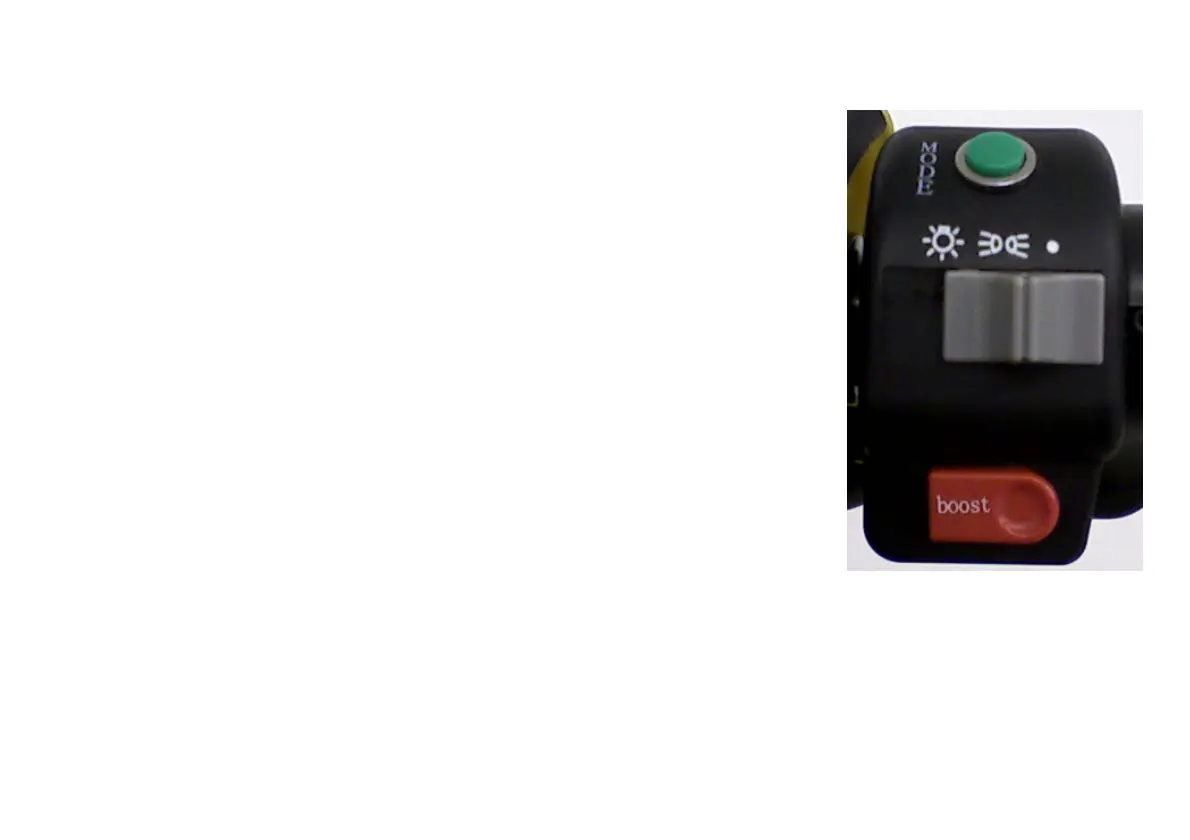

2.4 Right Switch Unit
2.4.1 Mode Switch
• Short press: Display in speedometer changes from
trip odometer (KmP) + battery voltage
to total odometer
(KmT) + KmP
• Hold for min. 3 seconds: Trip odometer is set to 0 km
2.4.2 Light Switch
• Right position: All lights are switched off
• Middle position: Front parking lights, rear lights and
speedometer illumination switched on
• Left position: Parking lights, low beam/high beam, rear
lights and speedometer illumination are
switched on
2.4.3 Boost Switch
A single press will increase power but not maximum speed
• Active for 60 seconds, then it must be pressed again(if
required)
• Is only effective when the scooter is driving at a minimum
of 5 km/h
• Can also be pressed when standing still, then power is increased when the scooter reaches
a minimum of 5 km/h
• Frequent use decreases the range
