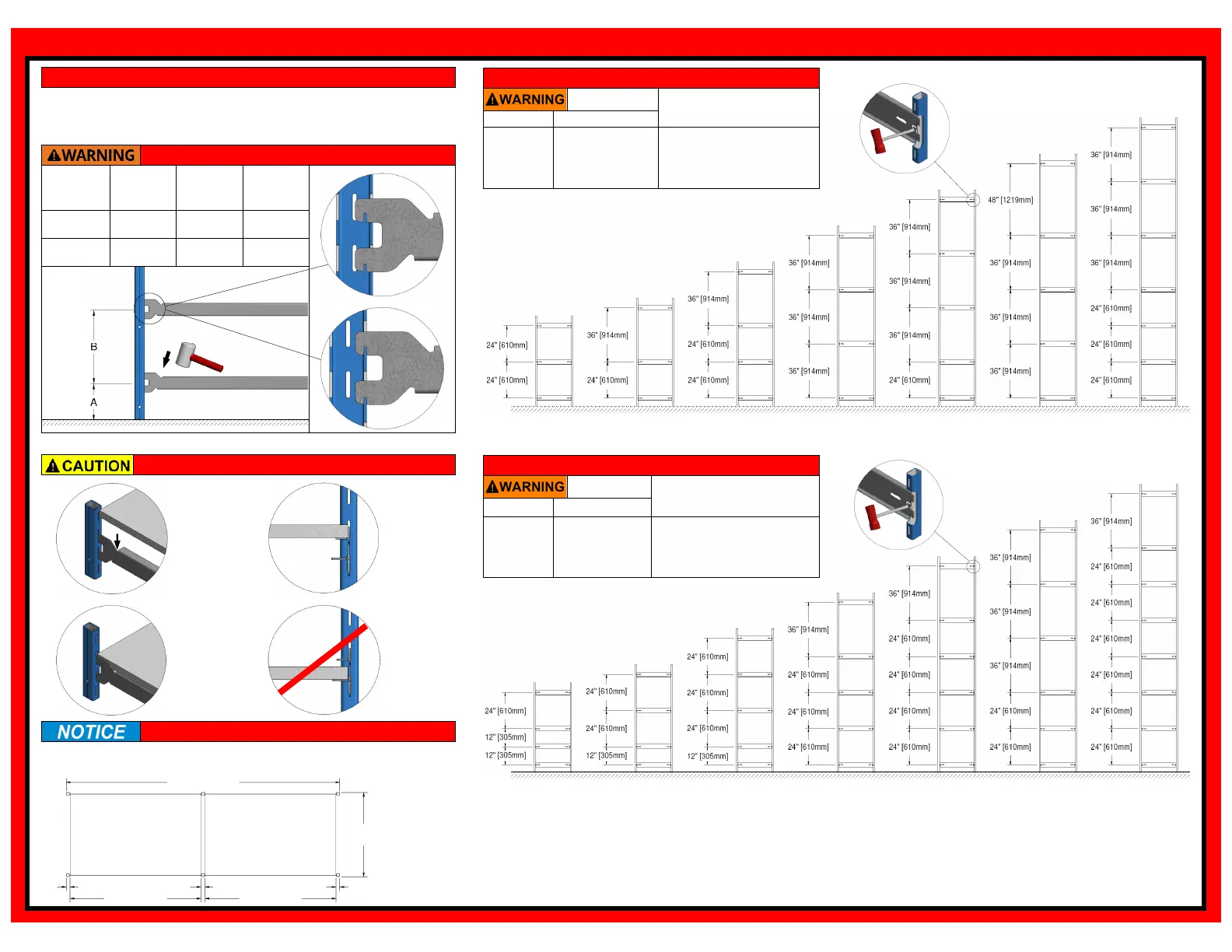

TYPE 1 Boltless Shelving
Assembly Instructions
FRAME CONNECTOR ASSEMBLY
NUMBER OF POST CONNECTORS REQUIRED
Height of Post
Light to Medium Loads up to
6,000lb (2,727kg) or up to 30"
Inches
Metric
36"
48" to 84"
96" to 120"
132" to 168"
180" to 192"
914mm
1219mm to 2314mm
2438mm to 3048mm
3353mm to 4267mm
4572mm to 4877mm
2
3
4
5
7
1. Insert frame connector hooks all the way into post as shown below in order to allow for the
opposite side to enter and line up at the same slot level.
2. Tap down with rubber mallet to finish.
Note: Each level can be easily changed without dismantling the unit.
ALLOWABLE SPACING BETWEEN CONNECTORS
See Below
Light Loads
Up to 3,000lb
(1,363kg)
Medium Loads
Up to 6,000lb
(2,726kg)
Heavy Loads
Up to 9,000lb
(4,089kg)
Dimension A
Not to Exceed
28" 20" 12"
Dimension B
Not to Exceed
36"
54" 36"
LAY THE SHELF ON TOP OF FRAME CONNECTOR
NUMBER OF POST CONNECTORS REQUIRED
Height of Post
Heavy Loads over 6,000lb
(2,727kg) to 10,000 (4,545kg) or
36" (914mm) and over in Depth
Inches Metric
36"
48" to 84"
96" to 120"
132" to 168"
180" to 192"
914mm
1219mm to 2314mm
2438mm to 3048mm
3353mm to 4267mm
4572mm to 4877mm
3
4
5
6
8
LAYOUT INFORMATION AND CREEPAGE
When designing shelving layout, allow for an additional 1 1/2" (38.1 mm) creepage for each end
frame in the row and 1" (25.4 mm) creepage in depth for each end frame.
IMPORTANT NOTES:
• Post Connector requirements are for static loading only; no shocks, vibrations, seismic mobile or other conditions are considered.
• Always lock all post connectors on both sides to the posts that make up the shelving end frame. Refer to the assembly instructions guide for typical placement.
• Be sure the post connectors are tapped down completely so the locking tab can be fully engaged before twisting the locking tab as per drawing. It is the best to use a
chainsaw wrench but a 3/8" screwdriver can be used.
• Not locking the post connectors can lead to a dangerous situation and the shelving could collapse.
• Please contact your sales representative or the factory direct for help on design, seismic and mobile aisle, CDN./ U.S. 1 888 397 4353 • U.K. 01993 779494.
E-Z-Rect Manufacturing Ltd. T1 Revision May 2019
60" [1524mm] 72" [1829mm] 96" [2438mm] 120" [3048mm] 144" [3657mm] 168" [4267mm] 192" [4877mm]
POST CONNECTOR TABS
MUST BE LOCKED IN PLACE
FOR SAFETY.
INCORRECT
CORRECT
SHELF
ON TOP
SHELF
PLACED
[762mm x 1219mm]
SHELF
[38mm]
[794mm]
[762mm x 1219mm]
SHELF
1)
2)
POST CONNECTOR TABS
MUST BE LOCKED IN PLACE
FOR SAFETY.
