Ea2 BL502 - Main Unit Appearance; Part A - LCD; Part B - Buttons; Part C - Structure

ENGLISH 3 ENGLISH 4
2. Main Unit Appearance 3. Outdoor Thermo Sensor

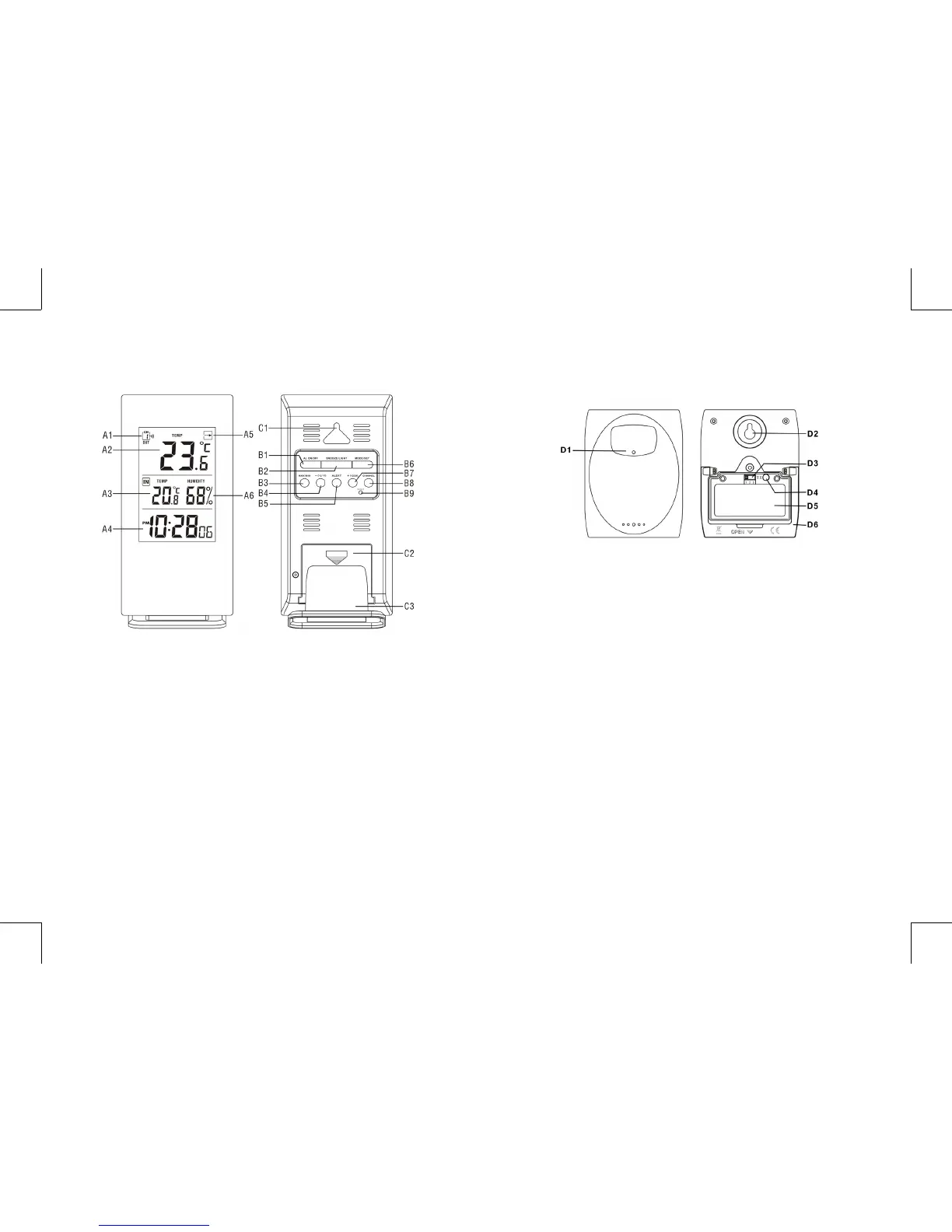

Part A- LCD
A1: Selected Channel
A2: Outdoor Temperature
A3: Indoor Temperature
A4: Time Display
A5: Outdoor Temperature Trend
A6: Indoor Humidity
Part B- Buttons
B1: “ALARM ON/OFF” button
B2: “SNOOZE/LIGHT” button
B3: “MAX/MIN” button
B4: “-(C/F)” button
B5: “ALERT” button
B6: “MODE/SET” button
B7: “+ (12/24)” button
B8: “CHANNEL” button
B9: “RESET” button
Part C- Structure
C1: Wall Mount Hole
C2: Battery Cover
C3: Stand
D1: Transmission Indication LED
D2: Wall Mount Hole
D3: Channel Select Switch
D4: “TX” button
D5: Battery Compartment
D6: Stand
