INSTALLATION OF THE E-I PSMOUNTING THE EAGLE POWER I
(6)

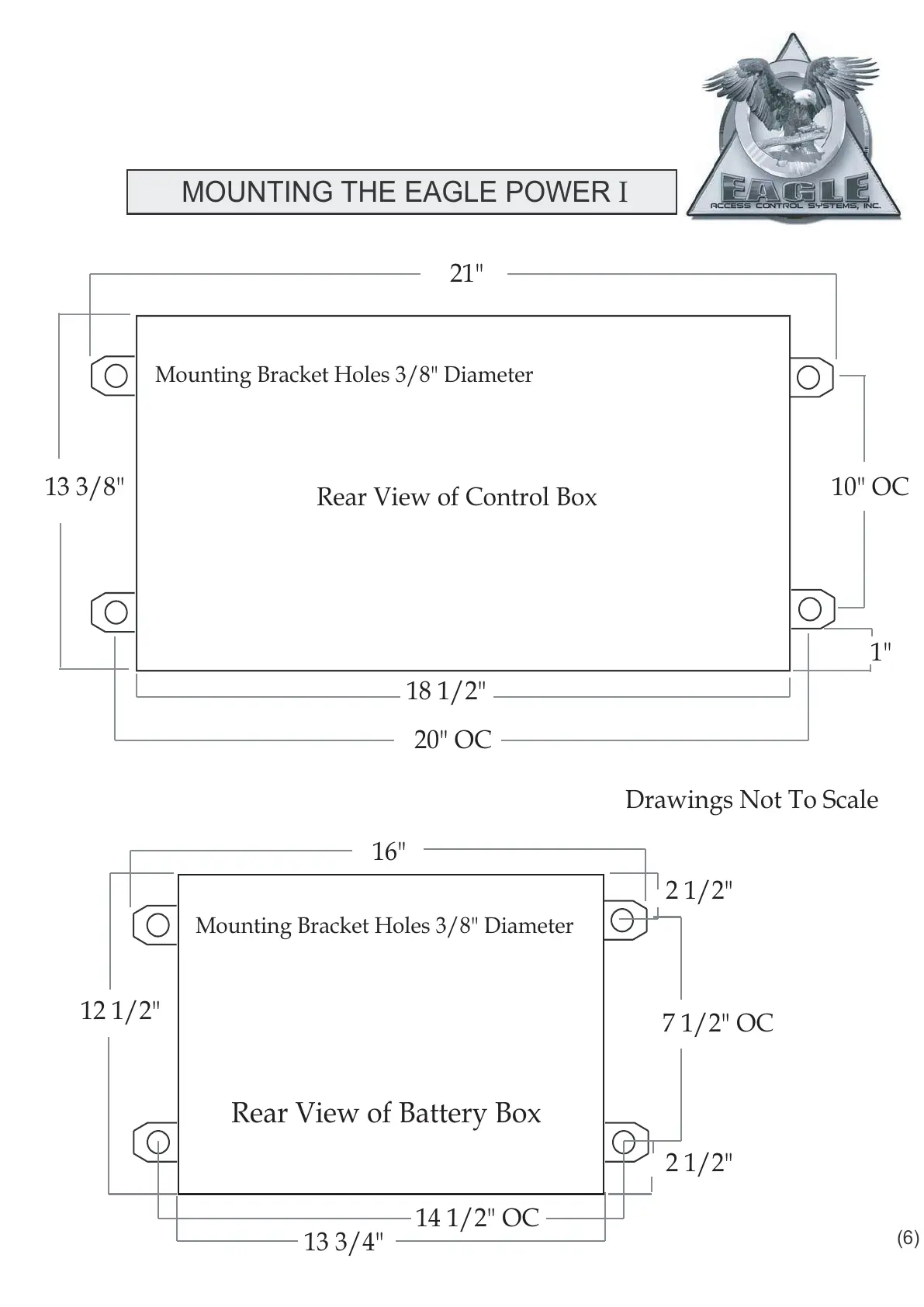

Rear View of Control Box
21"
10" OC
1"
13 3/8"
18 1/2"
20" OC
Mounting Bracket Holes 3/8" Diameter
Rear View of Battery Box
Mounting Bracket Holes 3/8" Diameter
16"
2 1/2"
2 1/2"
7 1/2" OC
12 1/2"
14 1/2" OC
13 3/4"
Drawings Not To Scale
