White light wire
Color Light wire
Fan Wire
Rain shower head connection
Roof fastening bracket
Connect Wires

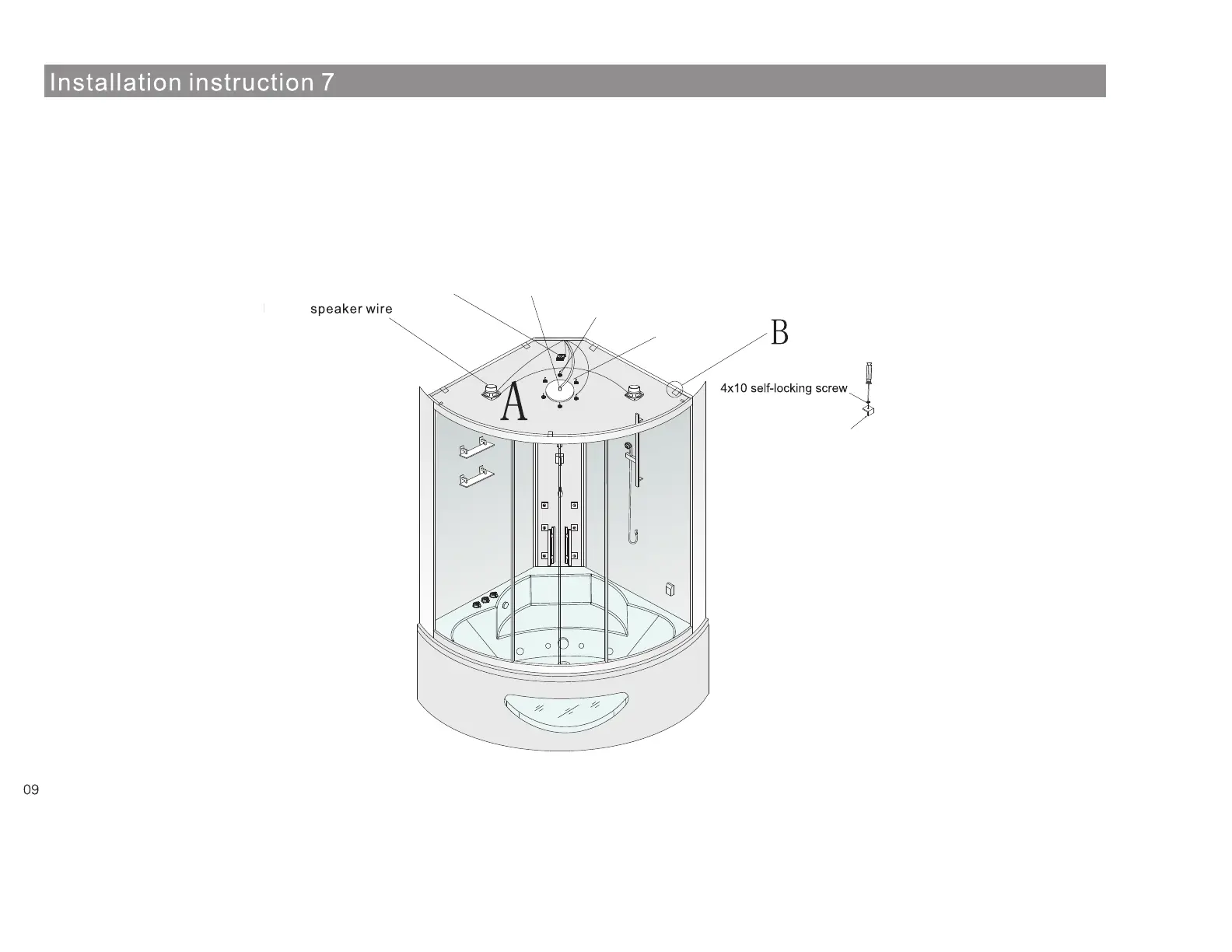

1. Put the top cover onto the steam shower carefully (illustrated in Drawing A)
2. Use a phillips screwdriver to fix the top cover to the shower assembly with 4x10mm screws and stainless steel brackets. Illustrated in Drawing B.
3. Locate the corresponding signs on each wire for the Fan, Lights, and Speaker and match them to the corresponding wires for the parts on the roof
and connect wires securely. Illustrated Below.
