Install Moveable doors

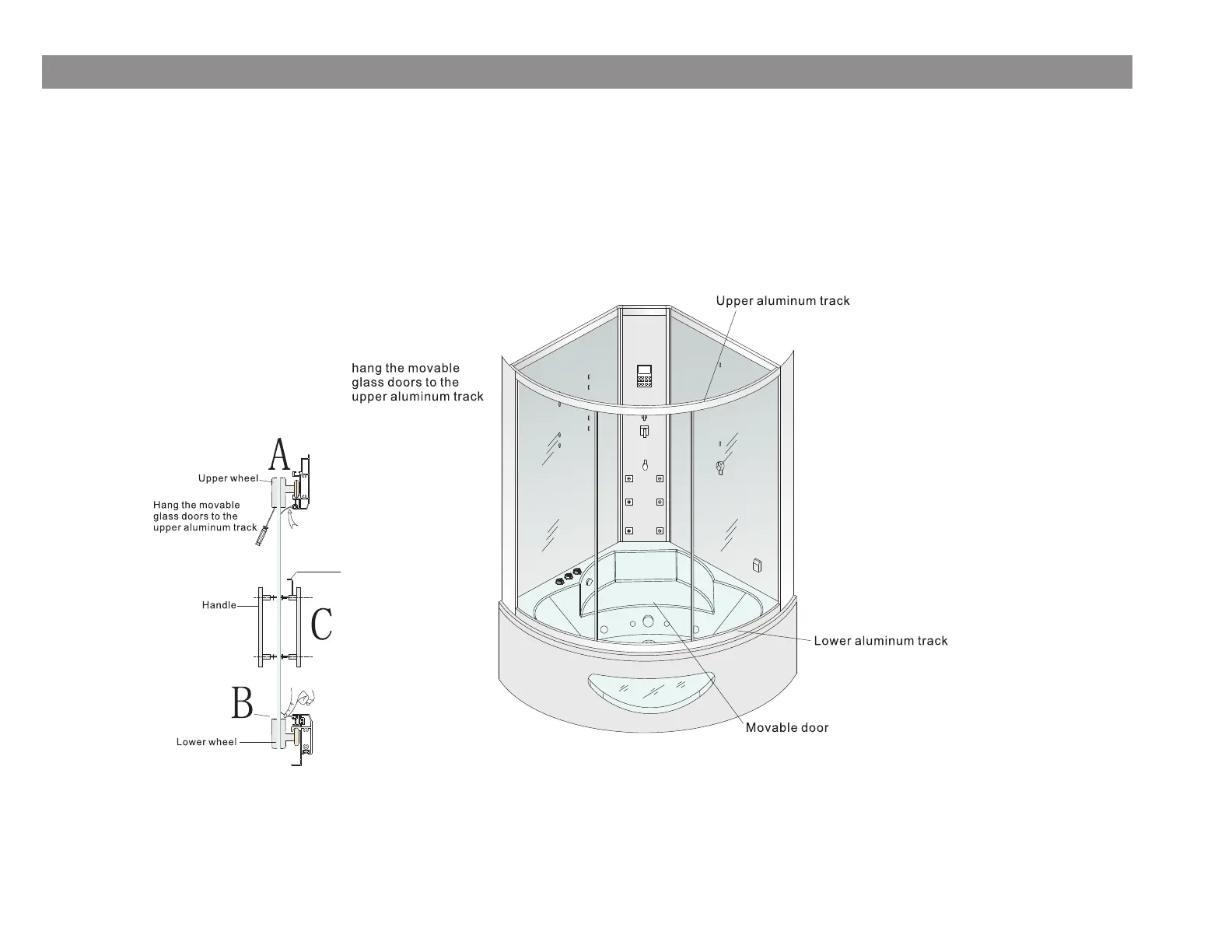

1. Hang the doors on the upper track (Illustrated in Drawing A) Then press the lower spring loaded wheels down to hook into the lower aluminum track.
(Illustrated in Drawing B) Note: there is an adjustment screw on the upper wheel assembly to adjust if there is a gap between the moveable doors or if the doors
are overly stiff in movement then adjust the upper wheels to correct fit of doors.
2. Install the door handles by putting the large phillips screw thru the hole in door and screw into one side of the handle. Attach the handle on the other side
of door to the other side of the handle with an allen wrench by tighening the set screw on the handle. (Illustrated in Drawing C.)
Allen Wrench
Push the bottom
wheels down so that
the wheels hang in the
bottom aluminum Rail
