EAS Electric EMCH200-4F - Page 38

L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
F(mm)
590
520
55
51
560+4
+1
490+4
+1
50 mini
3 mini

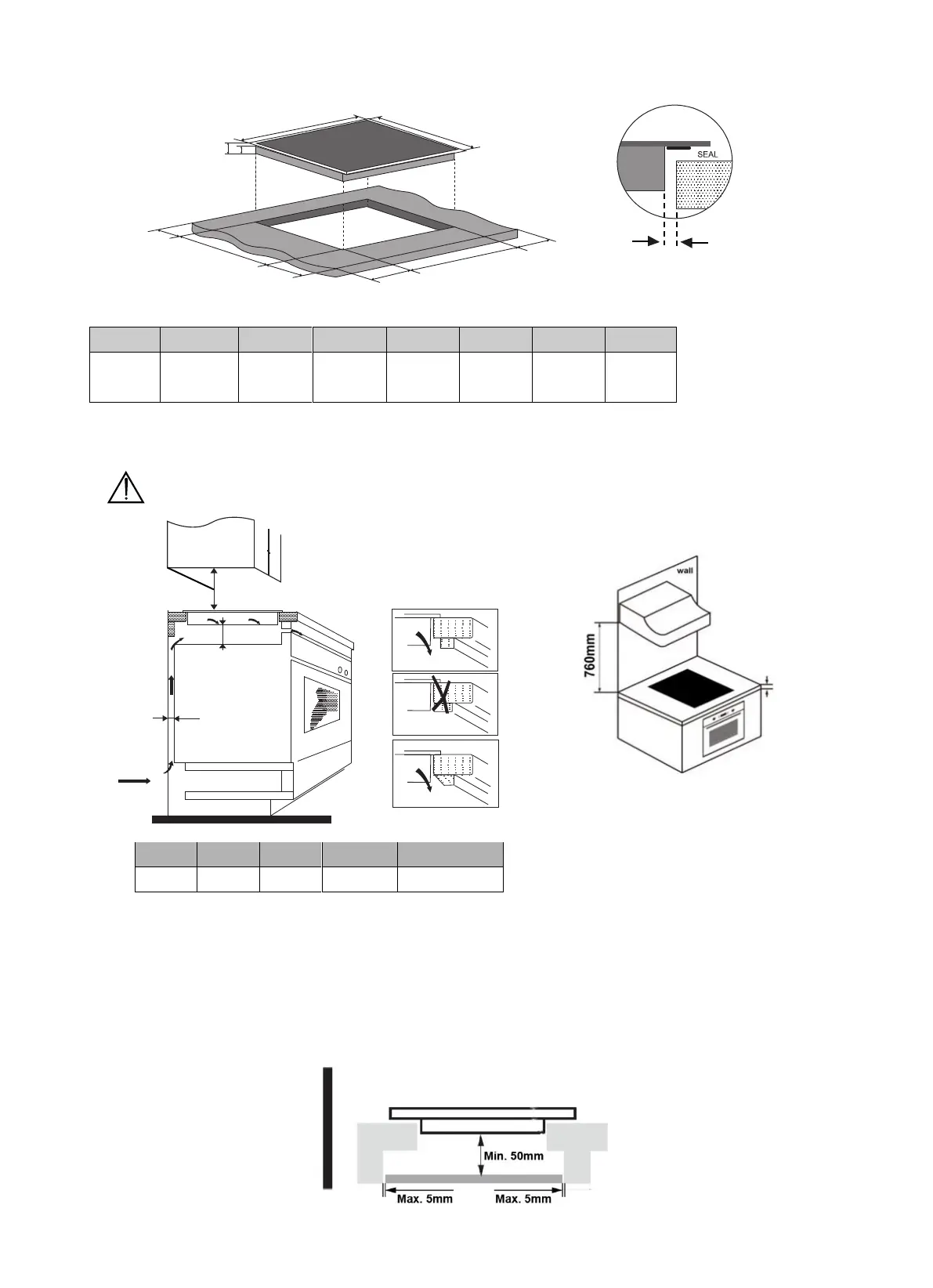

Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet
are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below
Note: The safety distance between the hotplate and the cupboard above the hotplate should be at
least 760mm.
WARNING: Ensuring Adequate Ventilation
Make sure the ceramic hob is well ventilated and that air inlet and outlet are not blocked. In order to
avoid accidental touch with the overheating bottom of the hob, or getting unexpectable electric shock
during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of
50mm from the bottom of the hob. Follow the requirements below.
A(mm)
B(mm)
C(mm)
D
E
760
50 mini
20 mini
Air intake
Air exit 5mm
Min.3mm
F
A
X
X
X
B
L
H
D
W
X
Min.30mm
A
B
E
C
D
