EAST OAK PPS23002 - Assembly: Canopy Attachment; Install the Canopy; Connect Canopy Support Rod

1716 EASTOAK.COM3-PERSON OUTDOOR PATIO PORCH SWING OWNER’S MANUAL
11

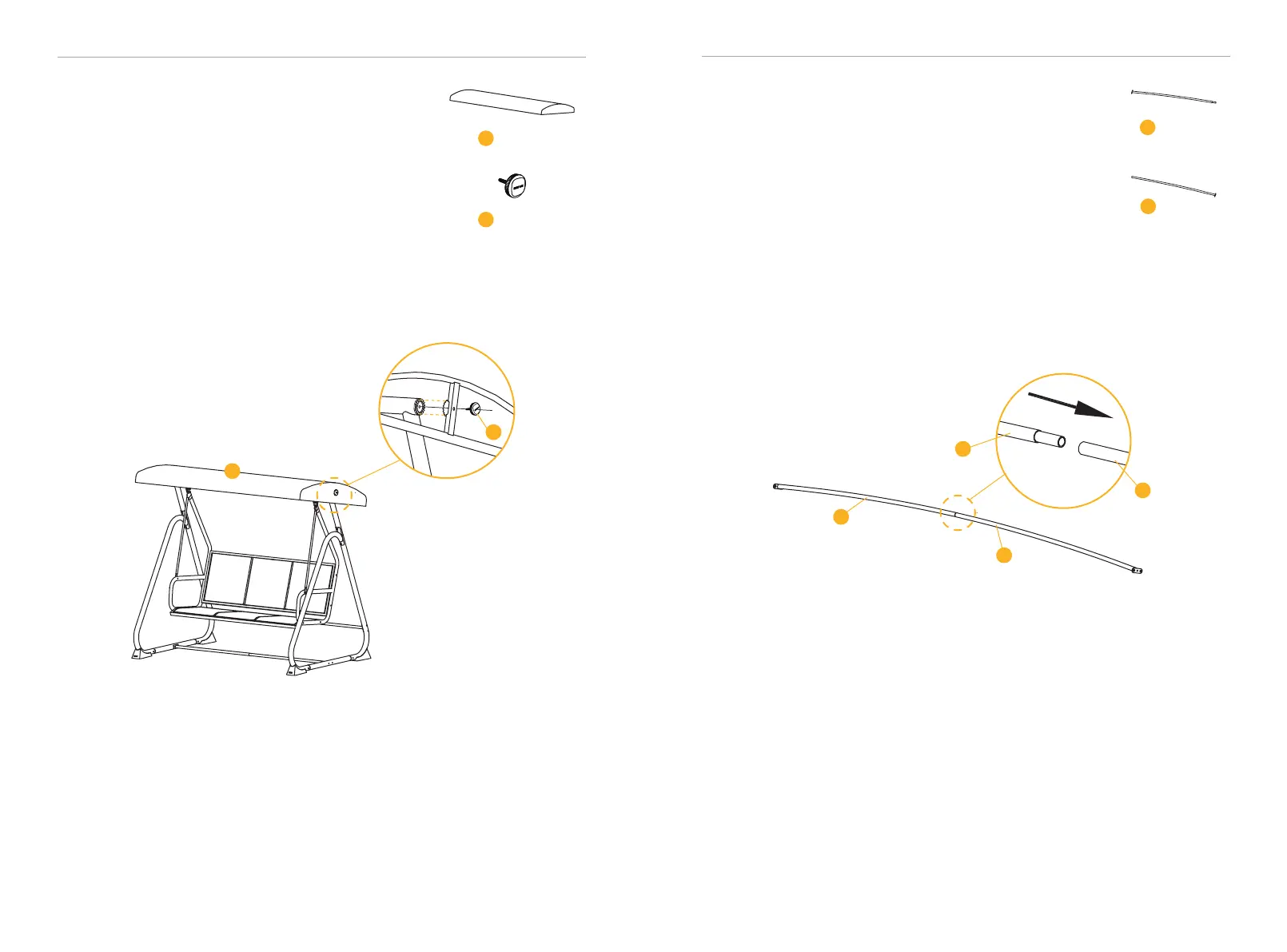

Connect the support rod
of the canopy
Align the gears of the canopy and the swing, turn
the knob O clockwise to screw and anticlockwise
to unscrew, to adjust the canopy’s angle.
L
L
M
M
10
Install the canopy
Align the gears of the canopy and the
swing, turn the knob O clockwise to screw
and anticlockwise to unscrew, to adjust the
canopy’s angle.
K
K (1PC)
O (2PCS)
O
L (1PC)
M (1PC)
