Connect the main frame
of the swing with the seat
Connect the installed seat with the main frame of
the swing by spring steel P.
P
J
F
P
F
J
J (2PCS)
P (2PCS)
F (2PCS)
8

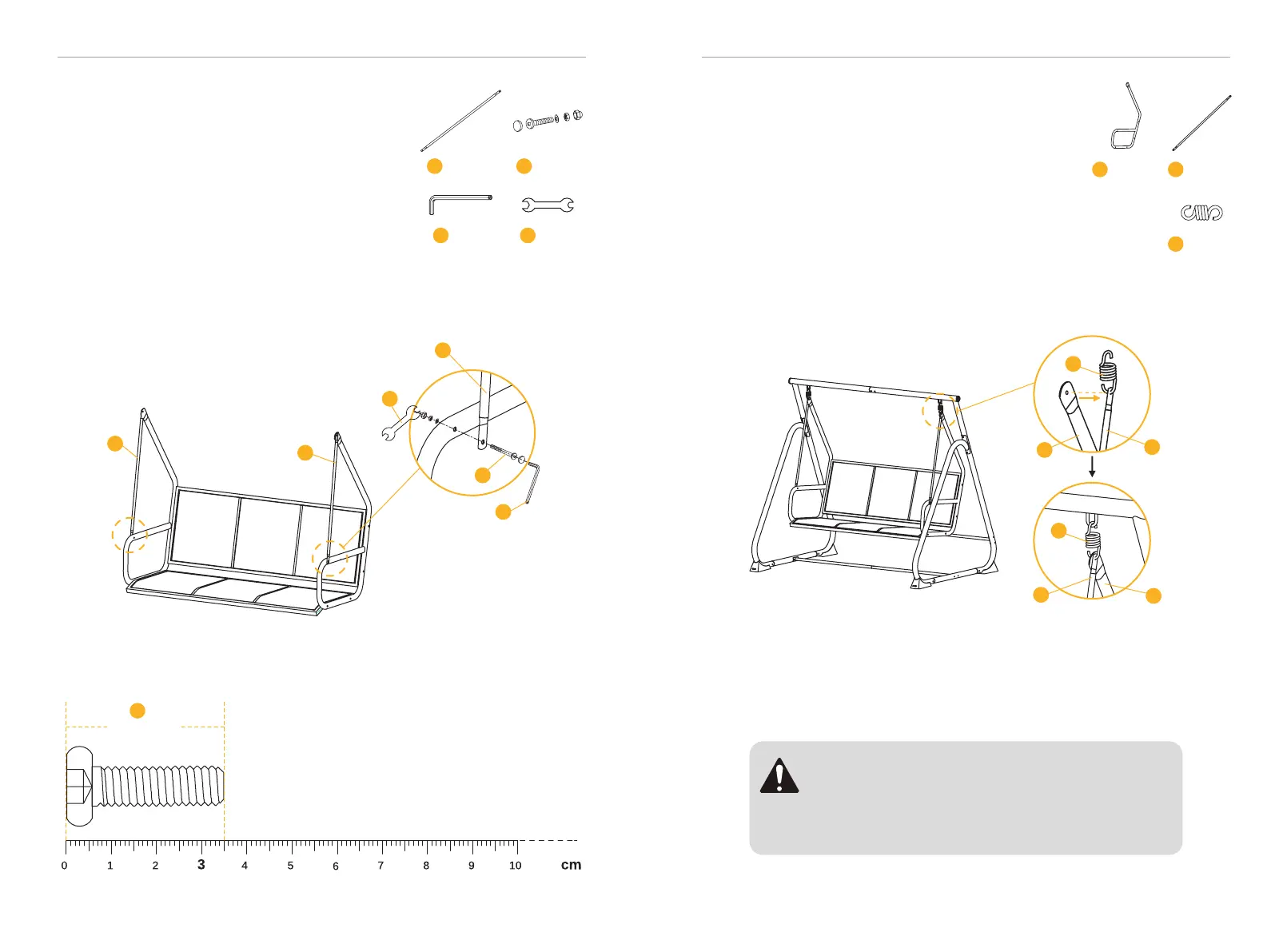

Install the seat xation
pipes
Connect the fxation pipe J with the handrails,
align their screw holes, install screws fully
with a spanner and then put on the plastic cap.
Connect the other fxation pipe in the same way.
J
J
J
U
AA
BB
AA
(1PC)
BB
(1PC)
J (2PCS)
U (2PCS)
U
M6*35mm
Warning Tips: When the spring steel P is connected
to the seat frame and the seat xing pipe, the spring
steel P can be connected to the hole of the seat xing
pipe rst, and then connected to the hole of the seat
frame. Do not connect two holes at once.
