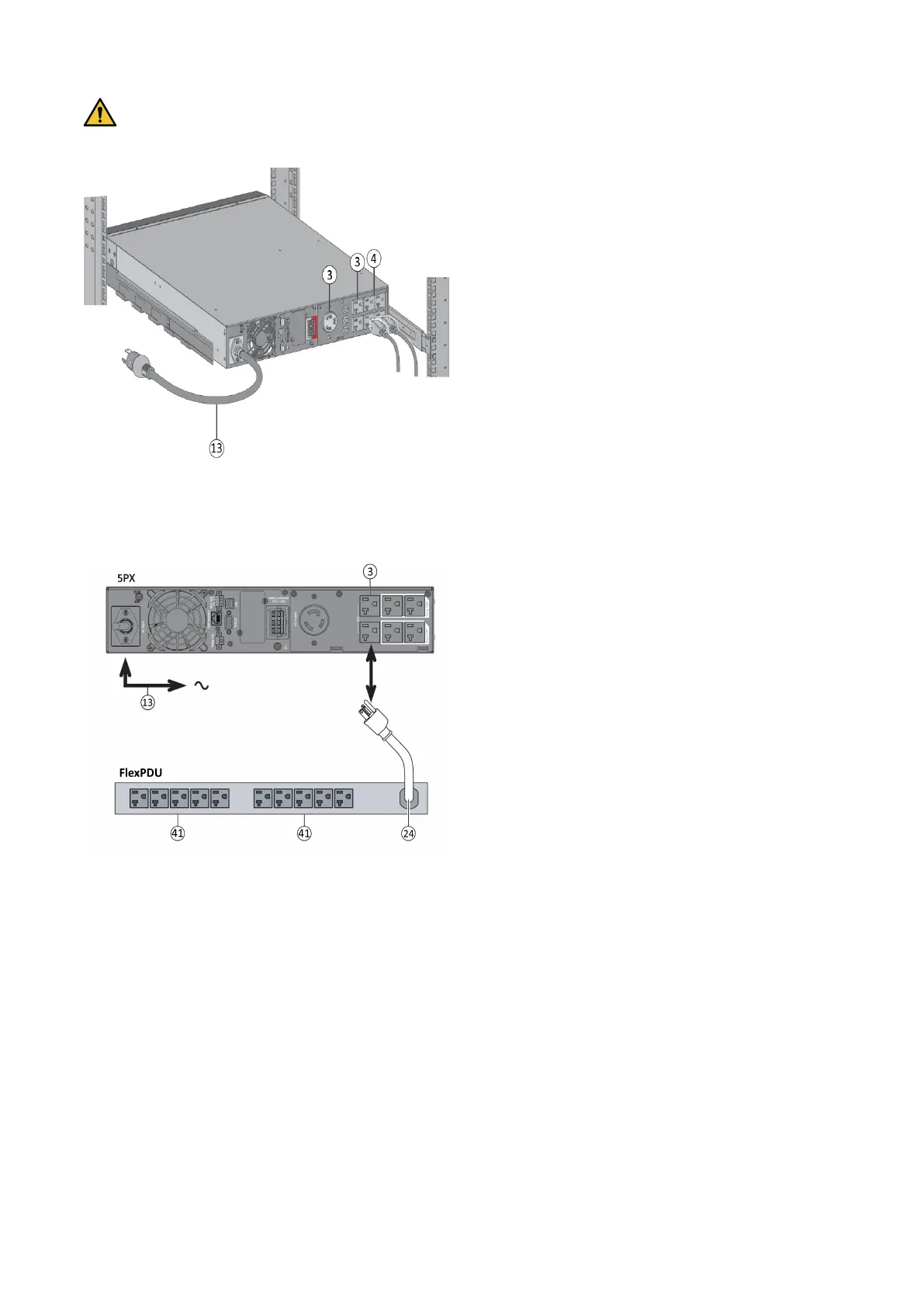

3.5 UPS connection
Check that the indications on the name plate located on the back of the UPS correspond to the AC-power source
and the true electrical consumption of the total load.
1.Connect the UPS input cable (13) to the AC power
source.
2.Connect the loads to the UPS.It is preferable to
connect thepriority loads to the outletsmarked (3) and
the non-priorityloads to the outlets Group1, Group2 (4)
that can be programmed.
For the 5PX2000/ 3000 models, connect any high-power
devicesor matching Power Distribution Unit (PDU) to
theL5-20R or L5-30Routlet.
3.To program shutdown and startup of the Group1 and
Group2 outlets in order to extend battery runtime and
perform scheduled shutdowns, please see the "In/Out
settings" section.
3.6 Connection with a FlexPDU (Power Distribution Unit) optional module
1.Connect the UPS power cord (13) to the AC power
source.
2.Connect the input cord of the FlexPDU module (24) to
one of the UPS outlets (3).
3.Connect the equipment to the outlets (41) on the
FlexPDU module. These outlets differ, depending on the
version of the FlexPDU module.
3.7 Connection with a HotSwap MBP (Maintenance ByPass) optional module
The HotSwap MBP module makes it possible to service or even replace the UPS without affecting the connectedloads
(HotSwap function).
