Eaton 9PX 2200 GRT - 3.7 Rack Installation

Page 24
9PX 1-3 KVA US_EN
3.7 Rack installation
• Rack mounting of UPS, EBM, and accessory modules.

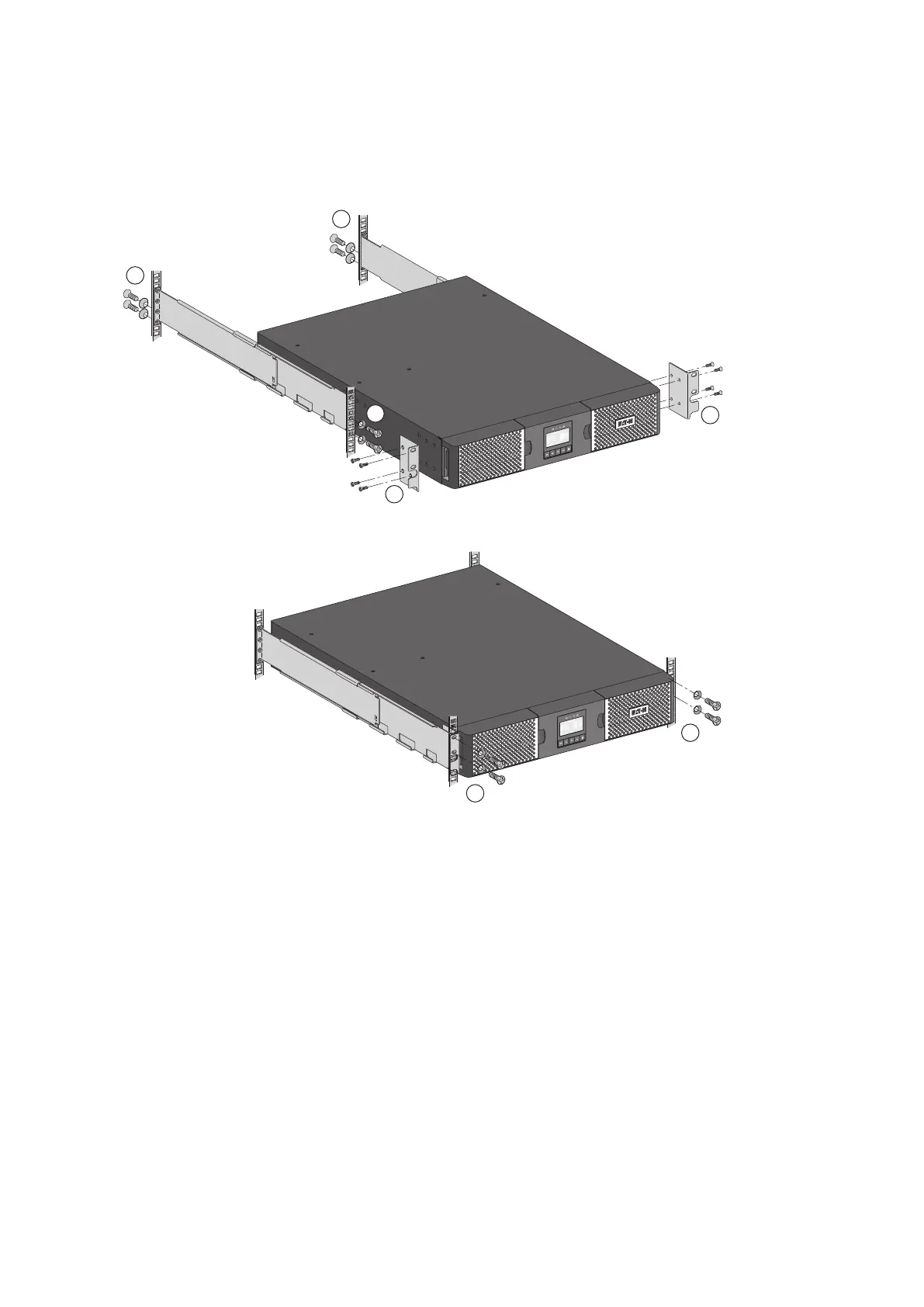

Follow steps 1 to 4 for module mounting on the rails.
3
3
4
4
2
1
1
The rails and necessary hardware are supplied by EATON.
3. Installation
