CChhaapptteerr 44 UUPPSS EElleeccttrriiccaall IInnssttaallllaattiioonn
44..11 UUPPSS IInnppuutt CCuurrrreenntt RRaattiinnggss
WARNING
Risk of electrical shock. Only qualified service personnel (such as a licensed electrician) should perform the
electrical installation in this section.
If a bypass switch is not used, the UPS input may be hardwired through conduit to a main power source circuit
breaker, and the UPS output may either be hardwired to a circuit breaker in a distribution panel (as shown in
Figure 31) or supplied to loads through optional receptacles on the back of the UPS. Without a bypass switch,
power to the load cannot be maintained if the UPS is taken completely offline.

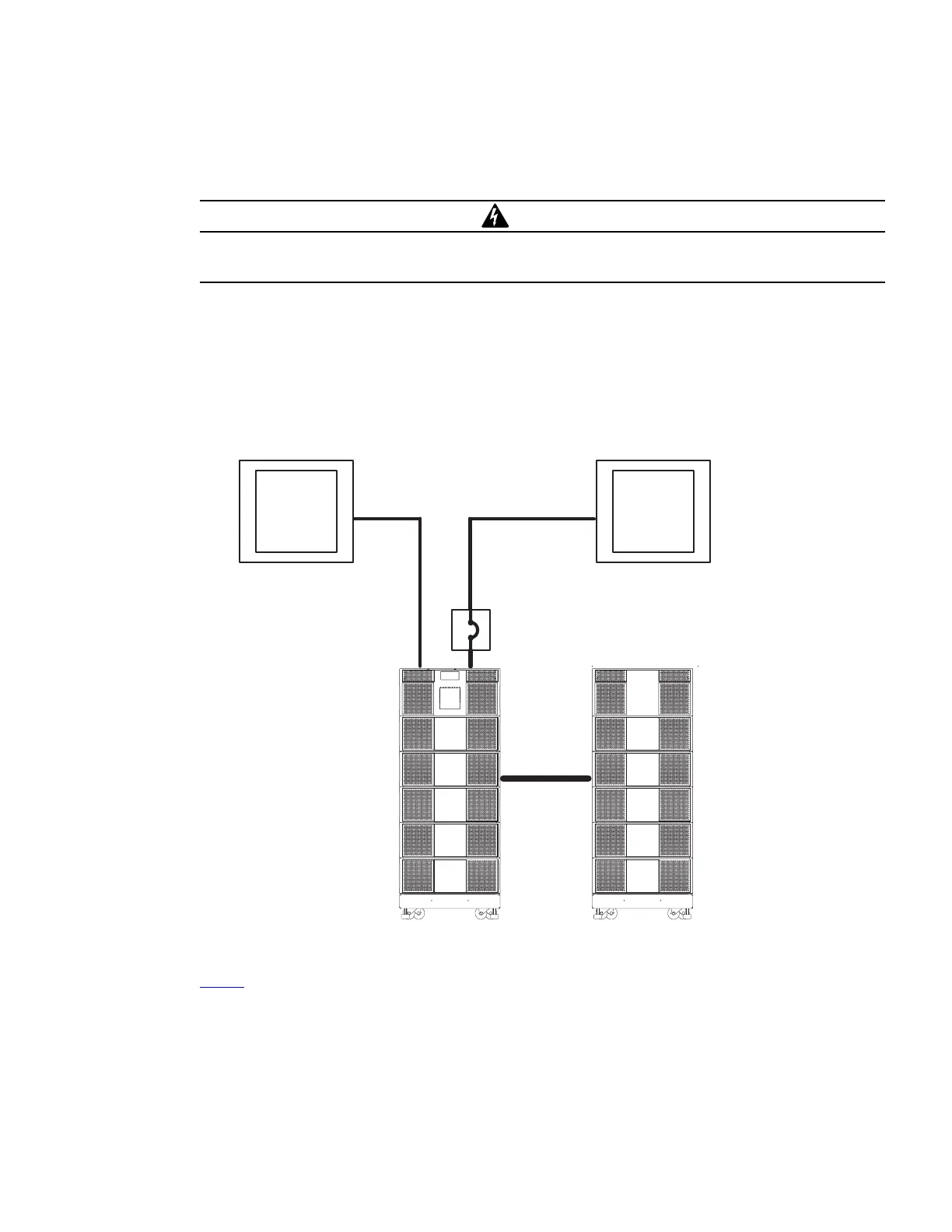

Figure 32. Typical Installation without a Bypass Switch
Building
Service
Panel
Load
Distribution
Panel
User-Supplied
(if required)
External Battery
Module
(optional)
Table 5 contains the required circuit breaker ratings for hardwired installations.
