Appendix A: Overview of pin assignments
Appendix A: Overview of pin assignments

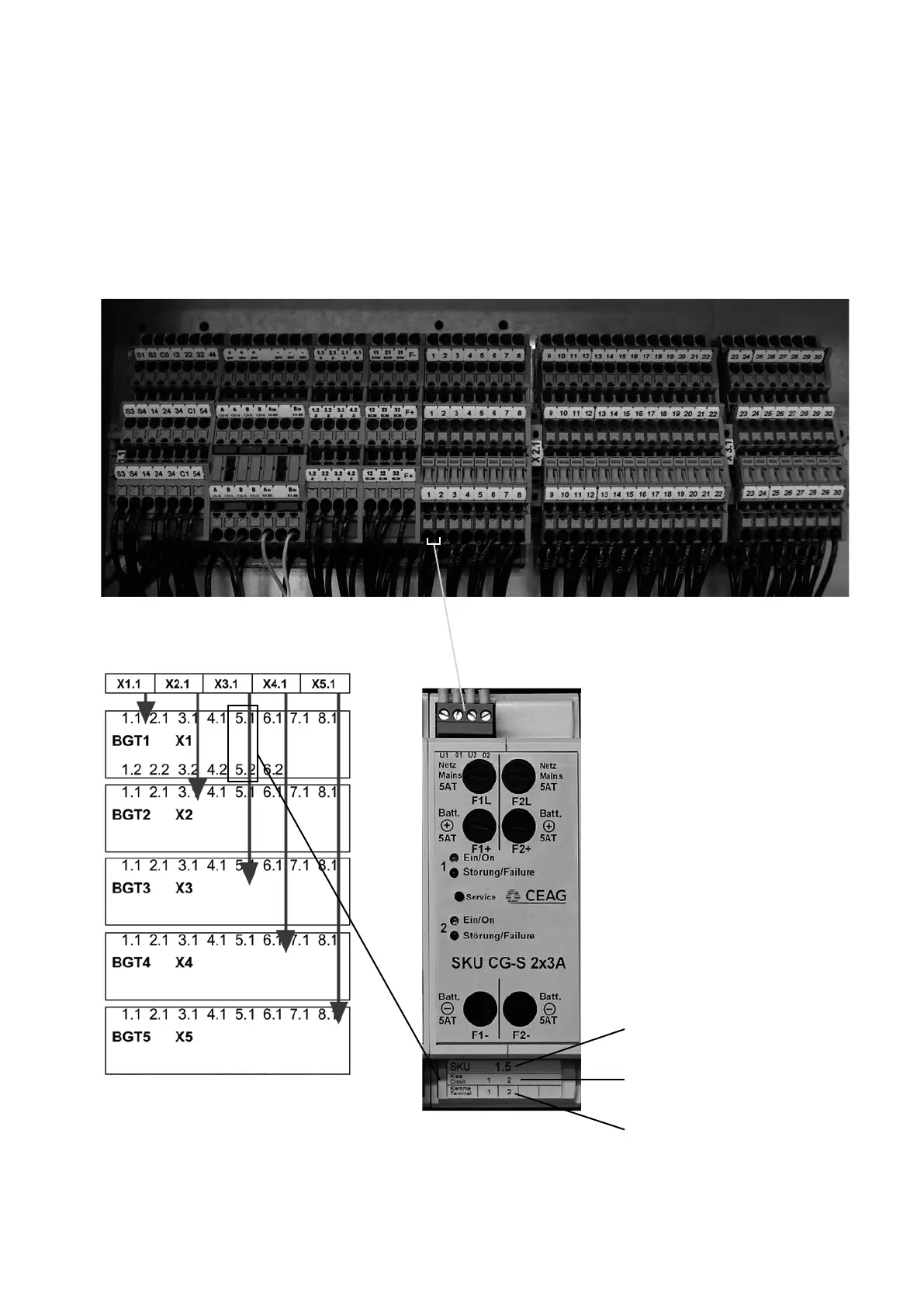

All external connections are made via the tension clamp
terminal blocks in the upper area of the control cabinet.
The terminal assignment results from the imprints on the
front of the housing (for the plug-in screw terminals on
the module) and on the terminal blocks for the external
connections.
Terminal designation scheme
The assignment of the terminal blocks to the subracks 1 to
5 results from their arrangement from left to right.
SKU = Circuit switching
1.5 = Subrack and assembly station
Circuit = Circuits of the circuit
changeover
Terminal = output terminal of final
circuit.
